Gebuwin Battery Drill Winch 200 kg

Product No. 77290000

Regular price $887.00 excl. $204.01 VAT $1,091.01 incl. $204.01 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
Product details

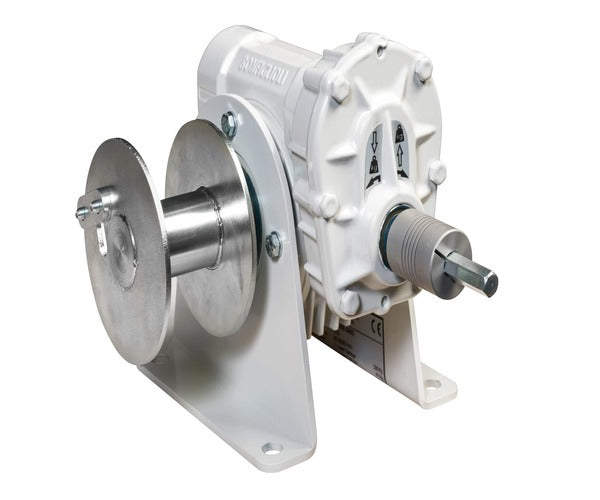

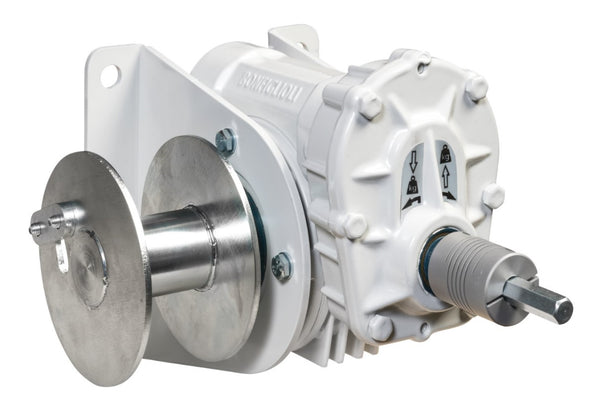

Battery Drill Winch 200 kg


Product information

This battery drilling machine winch is ideal in situations where there is no power available but you do not want to move the load manually. This winch therefore uses the power and speed of a battery-powered drill.  The winch also has a closed gearbox and a special flexible adaptor to absorb the use and the released vibrations of the drilling machine, making the winch very easy to use. The winch is very compact and can be mounted both against the wall and on the floor. Ideal for smaller work.


  • robust and safe lifting and pulling winch operated with battery drill
  • static safety factor 4

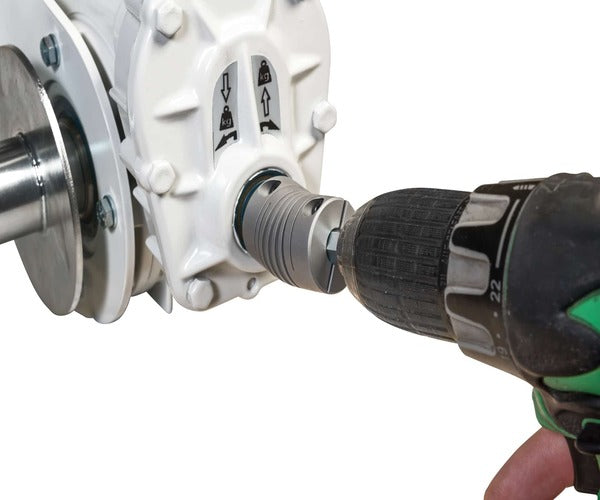

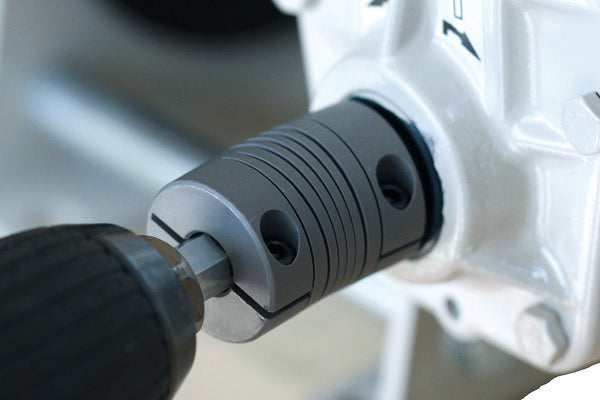

  • flexible coupling attachment for battery drill
  • self braking worm gear system
  • suitable for wall or floor (console) mounting
  • suitable for short lifting lengths
  • maintenance free aluminum closed gear box
  • in compliance with EN13157 and DIN 15020
  • 1 layer of paint

Available options

  • Floor mounting
  • ATEX certified

    Technical specifications

    Capacity 1st layer

    200 kg

    Capacity top (7th) layer

    92 kg

    Lifting speed

    800 mm/min

    Rope diameter-Ø

    4 mm

    Rope storage 1st layer

    8 meter

    Rope storage top layer

    18 meter

    Max. input rotation speed drill

    1400 rpm

    Weight (without rope)

    6 kg

    Article number


    Type name
