Doughty Half Coupler: 60mm Mammoth Clamp
Incl. VAT. Shipping calculated at checkout.
- For larger 60 to 63 mm tubes. Basis of the Doughty Mammoth Clamp range.
- 500 kg WLL. TÜV approved.
- Slotted base. Holds captive an M10 or M12 nut or bolt head for custom fixings.

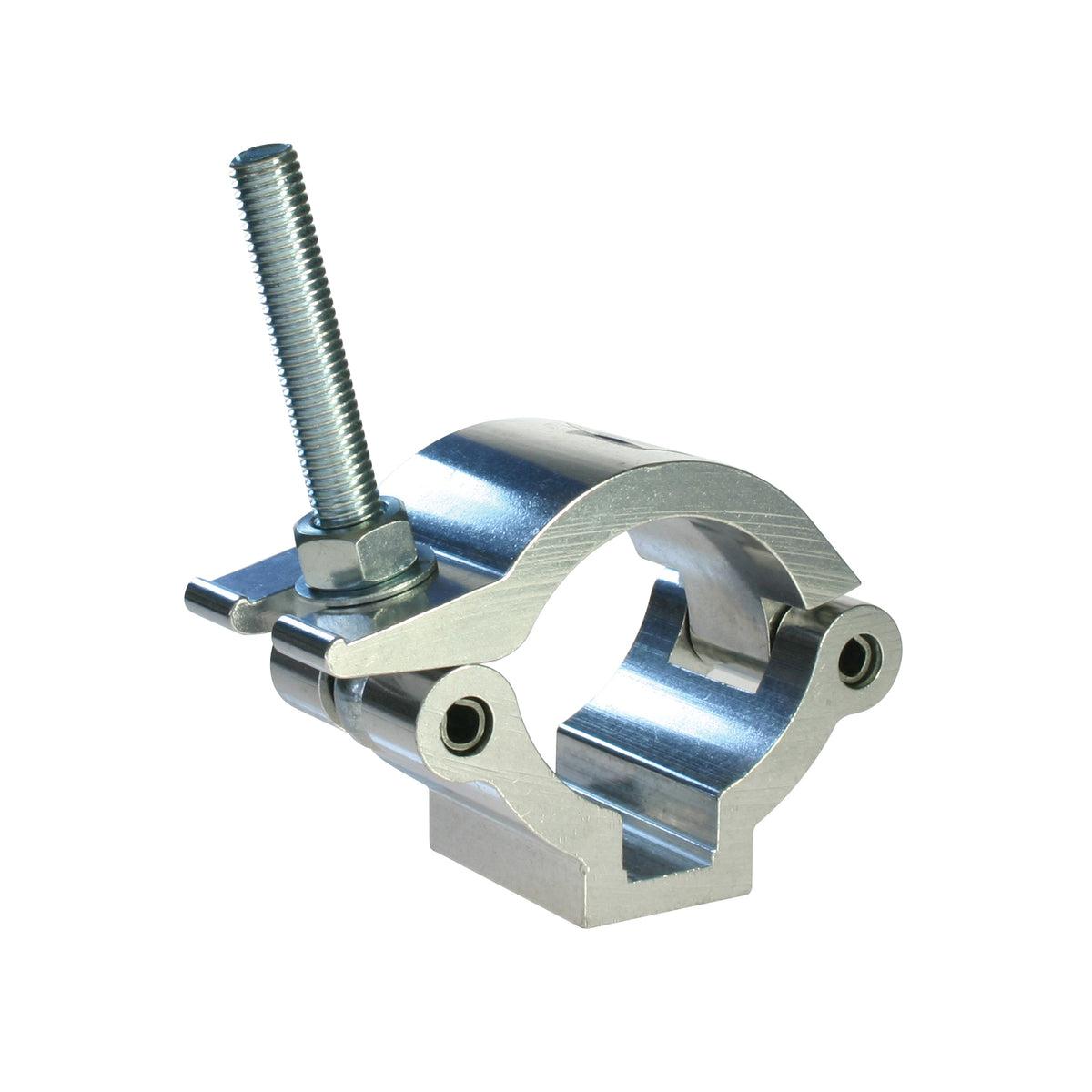

- High tensile aluminium. Polished aluminium (T57400) or black powder paint (T57401).
Accepted payment methods
shipping
Doughty Clamp - Half Coupler (Fit Larger Diameter Tube)

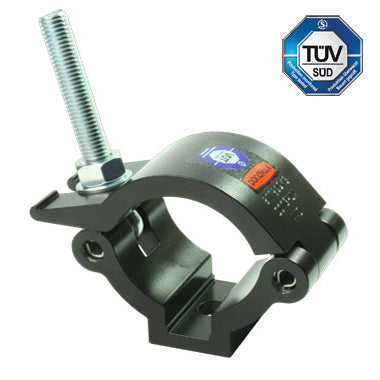

The Doughty Half Coupler 60mm is the basis of the range of Mammoth Clamps that are specifically designed to fit tubes with a larger diameter. This TÜV approved clamp has a slotted base to hold captive an M10 or M12 nut or bolt head, enabling users to create fixings suited to their own individual requirements.

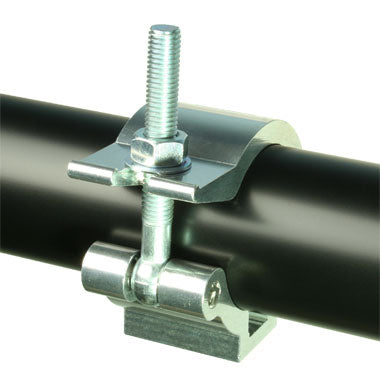

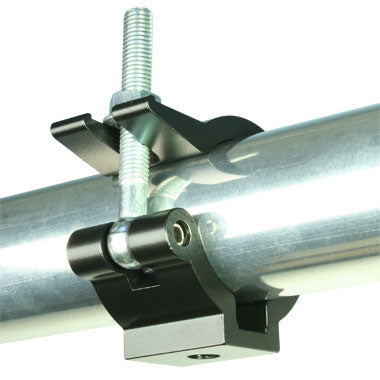

This Doughty clamp is widely used in the theatre, film, TV and photographic industries for mounting lights. For any inquiries, please contact us via chat.
Spec Sheet - Doughty Clamp User Manual - Cert
Specifications:
- TÜV Approved
- WLL: 500kg
- Part Nos: T57400 (polished), T57401 (black)
- Tube Diameters: 60mm to 63mm
- Width: 50mm
- Fixings: Slotted to hold captive an M10 or M12 nut or bolt head
- Weight: 0.41kg
- Material: High tensile aluminium
- Finish: Available in polished aluminium or black powder paint
Other Sizes of Doughty Half Coupler:
- 25mm Atom Clamp
-
32mm Atom Clamp
- 35mm Atom Clamp
- 38mm Atom Clamp
- 50mm Half Coupler Clamp (Standard, Lightweight, Super Lightweight, Slimline, Slimline & Lightweight)
- 60mm Half Coupler Clamp (Standard-current product, Slimline)
HOOK CLAMP • QUICK TRIGGER CLAMP • HALF COUPLER CLAMPS
Manufacturer Information:
Doughty Engineering has manufactured products for the entertainment industry since 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. As a member of the Professional Light and Sound Association (PLASA), Doughty adheres strictly to the standards of trading expected.
