Doughty Slimline Half Coupler: 60mm Mammoth Clamp [Multi-Pack]

Doughty Clamp - Half Coupler (Slimline & Large)

Doughty Engineering has begun to manufacture gears for the entertainment market since 1985. It is a member of Professional Light and Sound Association (PLASA) and adheres strictly to the standards of trading expected.

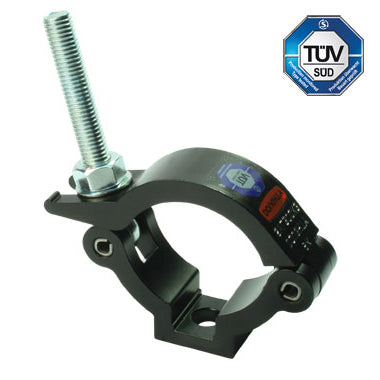

The Doughty Clamp has a slotted base to captivate an M12 Nut or Bolt to enable users to create fixings suited to their requirements. The slimline profile with only 30mm width allows it to be used between truss webs etc. This half coupler clamp can also attach the round tubes with a larger diameter.

Manufactured from high tensile Aluminium Extrusion, it is ideally used in the theatre, film, TV and photographic industries for attaching round tubes or truss chords and suspending luminaries or other equipment. For any inquiries, please contact us via chat.

Spec Sheet - Doughty Clamp User Manual - Cert

Specifications:

• TÜV Tested & Certified
• SWL: 300 Kg
• Tube Diameters: 60mm to 63mm
• Width: 30mm
• Fixings: M12 Hole
• Weight: 0.30 Kg
• Material: Aluminum
• Finish: Black or Polished Aluminium

Other Sizes of Doughty Half Coupler:

• 32mm Atom Clamp

• 35mm Atom Clamp
• 38mm Atom Clamp
• 50mm Half Coupler Clamp (Standard, Lightweight, Super Lightweight, Slimline, Slimeline & Lightweight)
• 60mm Half Coupler Clamp (Standard, Slimline-Current Product)
