Doughty Half Coupler 50mm- Super Lightweight [Multi-Pack]

T58122-4

New Year New Gear 10% off NOW [use code:NEWYEAR10] View All

Finish
Qty

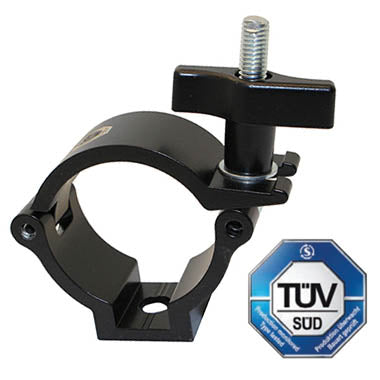

Doughty Clamp - Half Coupler (Super Lightweight)

The Doughty half coupler T58122 / T5812201 is an upgraded Super Lightweight Clamp with very positive feedback on the changes after listening to customers. It solves the old problem which the clamp knob fell to the ground when working at height.

It is an ultra-lightweight half coupler clamp with the weight of 0.18kg, only 29% of the standard one's. With a slotted base to captivate an M10 Nut or Bolt, it enables users to create fixings suited to their own individual requirements.

Widely used in the theatre, film, TV and photographic industries to attach round tubes or truss chords and suspending luminaries.

Spec Sheet - Doughty Clamp User Manual


Specifications:

  • TÜV approved
  • SWL: 100kg
  • Tube Diameters: 48mm to 51mm
  • Width: 30mm
  • Fixings: M10 Hole
  • Weight: 0.18kg
  • Material: Aluminium
  • Finish: Black or Polished Aluminium

"We listened to a lot of our customers who said that when working at height it is often frustrating when the knob of the clamp spins off and falls to the ground. We've made some changes to the eyebolt and made the knob captive so that it can no longer fall off. We have also increased the SWL to 100kg from 75kg which we hope will please everyone who is already a loyal user of the clamp." - Mark Chorley, Design Engineer at Doughty Engineering


Doughty Clamp





Manufacturer Information:

Doughty Engineering has begun to manufacture products for the entertainment industry since 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. As a member of the Professional Light and Sound Association (PLASA), Doughty adheres strictly to the standards of trading expected.
