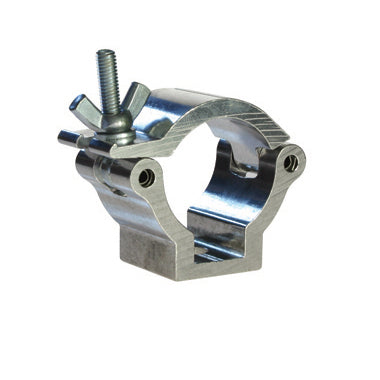

Doughty Half Coupler: 35mm Atom Clamp

Doughty Half Coupler 35mm with a capacity of 100 kg

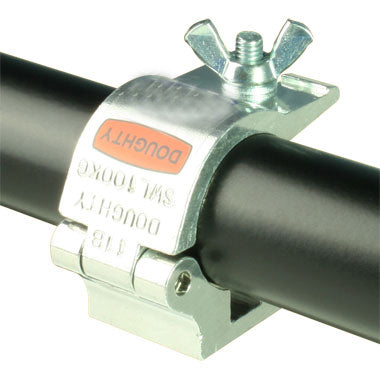

Atom Clamps are the smallest of the Doughty range of extruded aluminium couplers. The Doughty half coupler 35mm has a WLL of 100kg and is available in polished aluminium or black powder-coated. Not only are they suitable for lightweight trusses, but also the centre tube on most varieties of stands.

This Half Coupler is the basis of the range of 35mm Atom Clamps and has a slotted base to captivate M8 or M10 Nut or Bolt. More sizes are available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

Specification:

• Tube Diameter: Fit tubes with a 35mm diameter
• Width: 30mm
• Weight: 0.09kg
• Max. Load Capacity: Load bearing up to 100kg
• Fixing hole on the base: 10mm Diameter
• Material: Aluminum
• Finish: Available in both aluminium and black

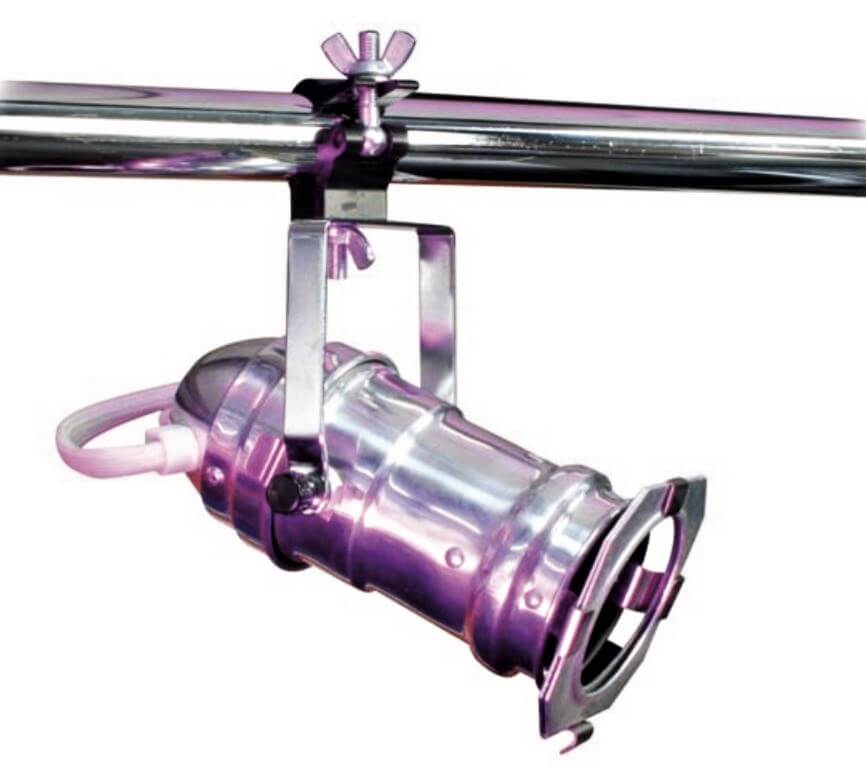

• Applications: Ideal for shop displays, film lighting etc.

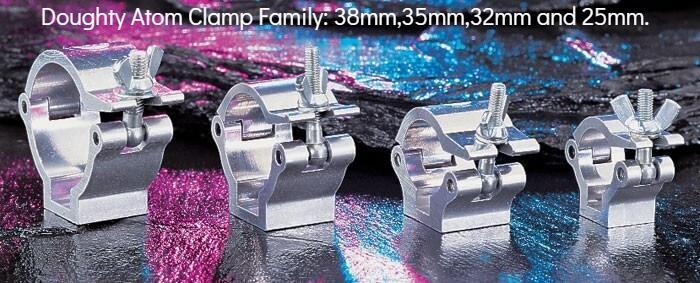

Other Sizes of Doughty Half Coupler:

• 25mm Atom Clamp
• 32mm Atom Clamp
• 38mm Atom Clamp
• 50mm Half Coupler Clamp

Hook Clamp • Quick Trigger Clamp • Half Coupler Clamps

Manufacturer Information:

Doughty Engineering has begun to manufacture products for the entertainment industry since 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls. As a member of the Professional Light and Sound Association (PLASA), Doughty adheres strictly to the standards of trading expected.
