Reutlinger Cable Holder SV III w/Side Exit Wire
Incl. VAT. Shipping calculated at checkout.
- Female thread with side exit wire. Type 50 and 80 with M12 female thread, Type 66 with M16 female thread.
- SWL 60 to 240 kg. Working loads per DGUV Regulation 17 (safety factor 10) for 4 to 8 mm wire rope.
- Tool-free and infinitely adjustable. Can be repositioned without damaging the cable.
- Non-reflective black coating. Barely visible in the stage setting.
- Max 5 degree exit angle. The wire rope must not exceed 5 degrees when exiting the holder.
Accepted payment methods
shipping

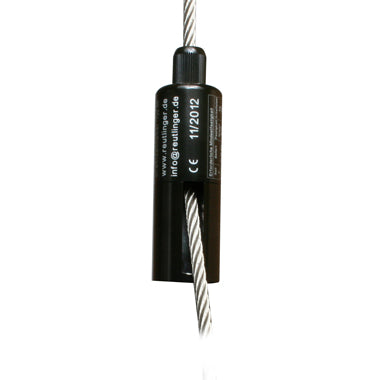

Reutlinger Cable Holder with Side Exit Wire - Type 50/66/80 SV III
This is a selection of Reutlinger Cable Holders with a female thread and lateral (side) wire rope exit to suspend a static load from a wire rope. It comes in three sizes - 50 SV III ZW, 66 SV III ZW and 80 SV III ZW.
These Reutlinger cable holders are ideally suited to applications which demand compliance with the accident prevention regulation "DGUV Regulation 17" (formerly "BGV C1"), such as stage productions and fair booths.
These cable holders can be repositioned without damaging the cable. No extra tools are necessary.
NOTE: The wire rope must not exceed an angle of 5 degrees when exiting the cable holder. For any inquiries, please contact us via chat.
Safety Precautions & User Manual - Type 50, 66 and 80
Features and Benefits:
- Simple to use without tools
- Infinitely adjustable
- No cable damage
- Time-saving
- Secure load suspension due to safety compliance (DGUV Regulation 17)
- Barely visible in the stage setting due to the non-reflective black coating
Specifications:
| Type | Reference | SWL | Overall Length / Outer Diameter / Weight | Thread |
| Type 50 SV III ZW | 393.005.025 |
4mm Wire - 60 kg 5mm Wire - 90 kg |
92.5mm / 25mm / 0.25kg | M12 female |
| Type 66 SV III ZW | 393.007.702 |
5mm Wire - 90 kg 6mm Wire - 135 kg 6.35mm Wire - 150 kg |
116mm / 34mm / 0.58kg | M16 female |
| Type 80 SV III ZW | 393.009.008 |
6mm Wire - 135 kg 6.35mm Wire - 150 kg 8mm Wire - 240 kg |
138.5mm / 40mm / 0.93kg | M12 female |
SWL values according to DGUV Regulation 17 (safety factor 10) for galvanised steel wire rope 6x7 / 6x19M (8 mm: 6x19M / 6x37M), tensile strength 1,770 - 1,960 N/mm².
