Reutlinger Cable Holder SV III w/Eye

Product No. 393.005.033

*IMPORTANT NOTE* - We require a minimum order value of €100 for all Reutlinger products. Please note if you order less than €100 worth of Reutlinger products, your order will be refunded.

Regular price $29.00 excl. $6.67 VAT $35.67 incl. $6.67 VAT
Unit price  per
TYPE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

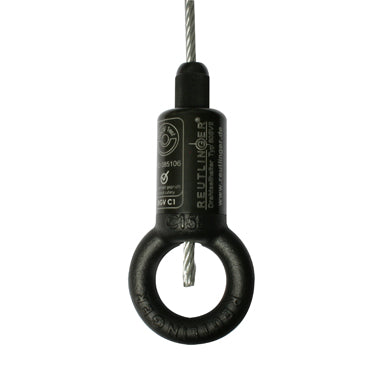

Reutlinger Cable Holder with Eye Type 50/66/80 SV III

This is a selection of Reutlinger Cable Holders fitted with a Ring (or called an eye) to suspend static loads from wire rope for event technology and rigging. Three sizes are available - Type 50, 66 and 80.

They are ideal for applications which demand compliance with the accident prevention regulations ''DGUV Regulation 17'' (formerly "BGV C1"), such as stage productions and fair booths.

Reutlinger cable holders can be repositioned without damaging the cable and no extra tools are necessary. For any inquiries, please contact us via chat.

Safety Precautions & User Manual - Type 50, Type 66 and Type 80


Features and Benefits:

  • Simple to use without tools
  • Infinitely adjustable
  • No cable damage
  • Time-saving
  • Secure load suspension due to safety compliance (DGUV Regulation 17)
  • Barely visible in the stage setting due to the non-reflective black coating

Specifications:

Type SWL Overall Length / Weight
Type 50
(⌀30mm Ring)
4mm Wire - 60 Kg
5mm Wire - 90 Kg
107mm / 0.26kg
Type 66
(⌀35mm Ring)
6mm Wire - 135 Kg
6.35mm Wire - 150 Kg
110mm / 0.26kg
Type 80
(⌀40mm Ring)
6mm Wire - 135 Kg
8mm Wire - 240Kg
158mm / 0.88kg

Please note that the wire rope cannot exceed 5 degrees when exiting the holder.
