Reutlinger Cable Holder SVIII w/Ring & Side Exit Wire
Product No. 393.005.026
*IMPORTANT NOTE* - We require a minimum order value of €100 for all Reutlinger products. Please note if you order less than €100 worth of Reutlinger products, your order will be refunded.
Shipping calculator
Payment methods
Product details

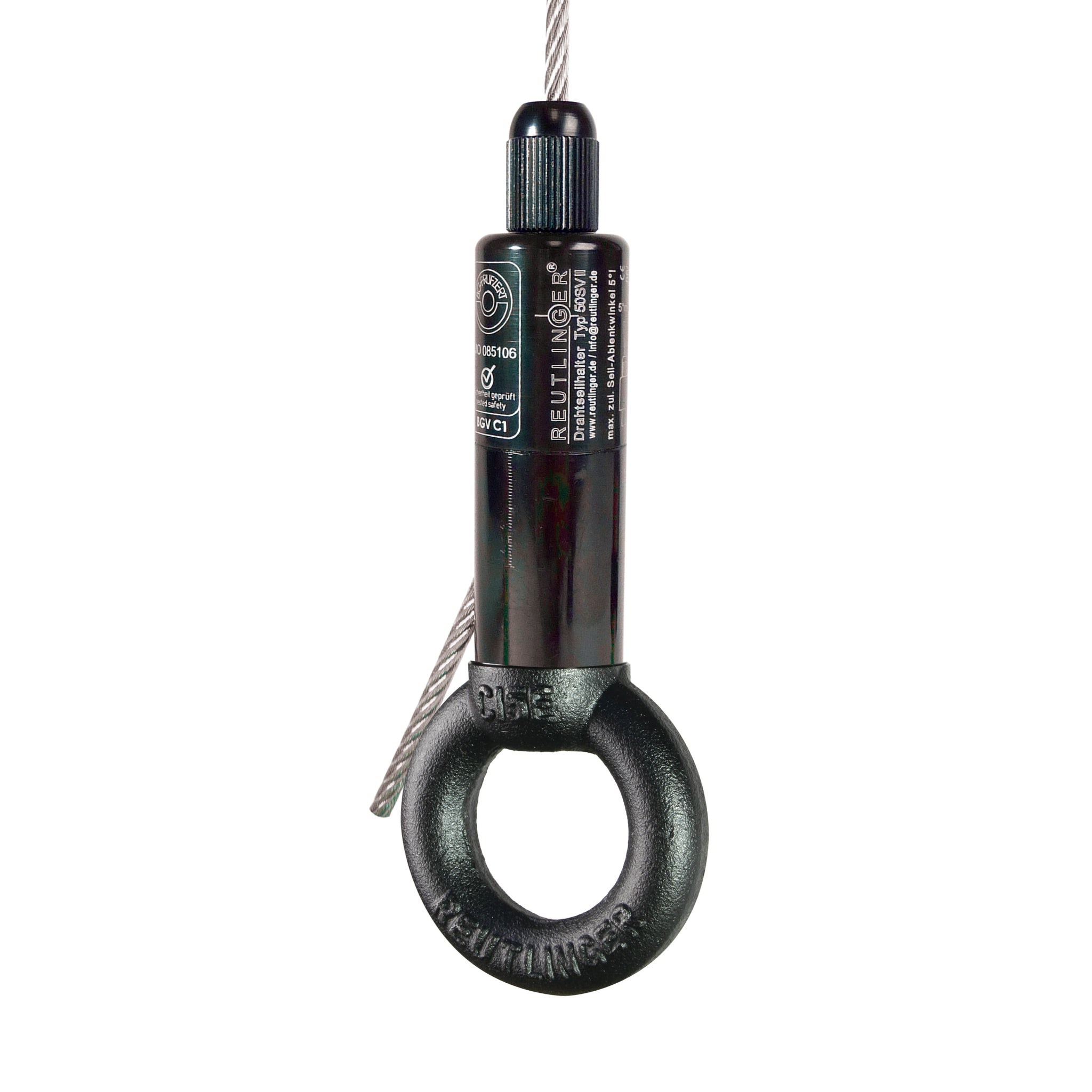

Reutlinger Cable Holder w/Ring & Side Exit Wire -Type 50/66/80 SV III
Featuring a side-exited cable, this is a range of Reutlinger Cable Holders fitted with a ring. They can hold static loads from wire rope without tools or damaging the steel rope. It comes in 3 sizes - type 50 SVIII, type 66 SVIII and type 80 SVIII.
These cable holders have been specifically designed for applications which demand compliance with the accident prevention regulations ''DGUV Regulation 17'' (formerly "BGV C1"), such as stage productions and fair booths.
NOTE: When exiting the holder, the rope is not allowed to exceed 5 degrees. For any inquiries, please contact us via chat.
Safety Precautions & User Manual - Type 50, Type 66 and Type 80
Features and Benefits:
- Simple to use without tools
- Infinitely adjustable
- No cable damage
- Time-saving
- Secure load suspension due to safety compliance (DGUV Regulation 17)
- Barely visible in the stage setting due to the non-reflective black coating
Specifications:
Type | SWL | Weight |
Type 50 (⌀30mm Ring) |
4mm Wire - 60 Kg 5mm Wire - 90 Kg |
0.26kg |
Type 66 (⌀35mm Ring) |
6mm Wire - 135 Kg 6.35mm Wire - 150 Kg |
0.26kg |
Type 80 (⌀40mm Ring) |
6mm Wire - 135 Kg 8mm Wire - 240Kg |
0.88kg |
