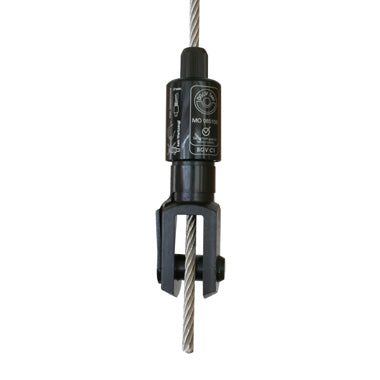

Reutlinger Cable Holder SV III w/Fork
Incl. VAT. Shipping calculated at checkout.
- Three sizes with fork. Type 50 (fork 14 x 28), 66 (16 x 32) and 80 (20 x 40) SV III with safety bolt.
- DGUV Regulation 17 compliance. Working loads with safety factor 10, for stage productions and fair booths.
- Tool-free and infinitely adjustable. No extra tools needed and no damage to the steel rope.
- Non-reflective black coating. Barely visible in the stage setting.
- Up to 240 kg SWL. Type 80 on 8mm wire; wire exit angle must not exceed 5 degrees.
Accepted payment methods
shipping
Reutlinger Cable Holder with Fork - Type 50/66/80 SV III

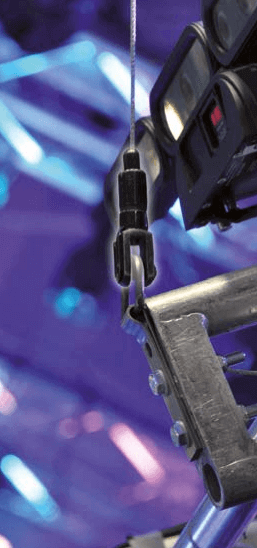

A selection of Reutlinger Cable Holders fitted with Fork is available in three sizes, used to hold a static load from wire rope without extra tools or damaging the steel rope. They are designed for event technology and rigging.
These Reutlinger cable holders are perfect for applications which require compliance with the accident prevention regulations DGUV Regulation 17 (formerly BGV C1), such as stage productions and fair booths.

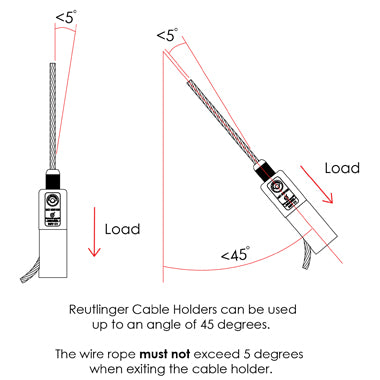

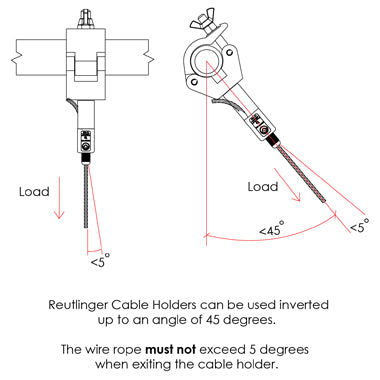

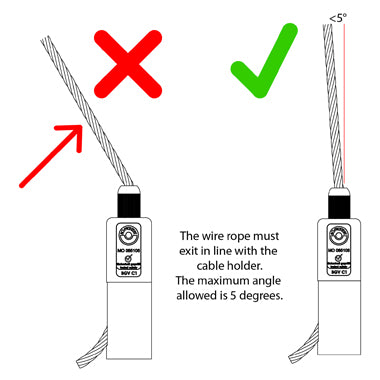

NOTE: When exiting the cable holder, the wire rope cannot exceed 5 degrees. For any inquiries, please contact us via chat.
Safety Precautions & User Manual - Type 50, Type 66 and Type 80
Features and Benefits:
- Simple to use without tools
- Infinitely adjustable
- No cable damage
- Time-saving
- Secure load suspension due to safety compliance (DGUV Regulation 17)
- Barely visible in the stage setting due to the non-reflective black coating
- TÜV GS certified
Specifications:
| Type | SWL (DGUV Regulation 17) | Overall Length / Fork / Weight |
| Type 50 SV III (393.005.024) | 4mm Wire - 60 kg 5mm Wire - 90 kg |
125.5mm / 14 x 28mm / 0.36kg |
| Type 66 SV III (393.007.703) | 5mm Wire - 90 kg 6mm Wire - 135 kg 6.35mm Wire - 150 kg |
151mm / 16 x 32mm / 0.65kg |
| Type 80 SV III (393.009.005) | 6mm Wire - 135 kg 6.35mm Wire - 150 kg 8mm Wire - 240 kg |
191mm / 20 x 40mm / 1.21kg |
Working loads according to DGUV Regulation 17 (BGV C1) with a safety factor of 10. All versions are supplied with a safety bolt in black finish.
