Reutlinger Cable Holder SV III w/Fork & Side Exit Wire

393.005.027

Type

📦 Need your gear delivered to the UK? Visit ShopMTN.co.uk to enjoy Brexit-proof shopping.

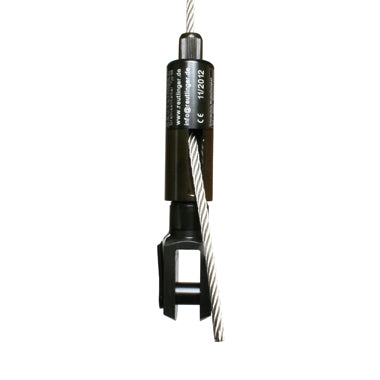

Reutlinger Cable Holder with Fork & Side Exit Wire - Type 50/66 SV III

It is a range of Reutlinger Cable Holders fitted with Fork, featuring a side exit wire. They perfectly suspend static loads from wire rope without tools or damaging the rope. Two sizes are available - type 50 SV III and type 66 SV III.

These Reutlinger Cable Holders are also specifically designed for applications which demand compliance with the accident prevention regulations ''DGUV Regulation 17'' (formerly "BGV C1"), such as stage productions and fair booths.

NOTE: When exiting the cable holder, the wire rope cannot exceed 5 degrees (shown in the diagram). For any inquiries, please contact us via chat.

Safety Precautions & User Manual - Type 50Type 66 and Type 80


Features and Benefits:

  • Simple to use without tools
  • Infinitely adjustable
  • No cable damage
  • Time-saving
  • Secure load suspension due to safety compliance (DGUV Regulation 17)
  • Barely visible in the stage setting due to the non-reflective black coating

Specifications:

Type SWL  Overall Length / Weight Fork Opening
Type 50

4mm Wire - 60 Kg

5mm Wire - 90 Kg

165mm / 0.5kg 14mm
Type 66

6mm Wire - 135 Kg

6.35mm Wire - 150 Kg

176mm / 0.5kg
13mm


Other types of Reutlinger Cable Holder:
