Reutlinger Cable Holder SV III w/Doughty Clamp
Product No. 393.005.040
*IMPORTANT NOTE* - We require a minimum order value of €100 for all Reutlinger products. Please note if you order less than €100 worth of Reutlinger products, your order will be refunded.
Shipping calculator
Payment methods
Product details

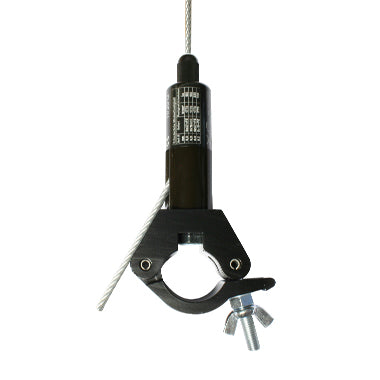

Reutlinger Cable Holder with Clamp - Type 50/66/80 SV III
This selection of Reutlinger Cable Holders is fitted with a clamp for 48mm to 51mm diameter tubes. They are used to suspend static loads from wire rope without extra devices or damaging the steel rope. There are three sizes available: 50 SV III, 66 SV III, and 80 SV III.
These cable holders have been specifically designed for applications which demand compliance with the accident prevention regulations ''DGUV Regulation 17'' (formerly "BGV C1"), such as stage productions and fair booths.

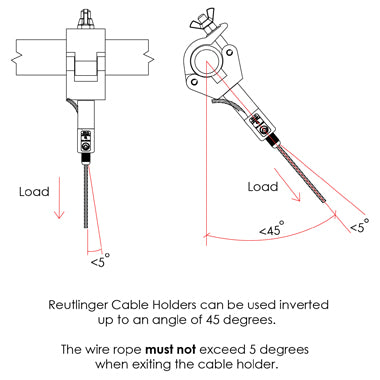

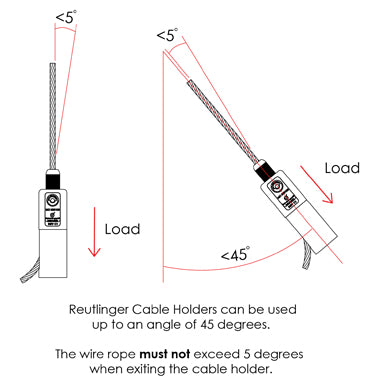

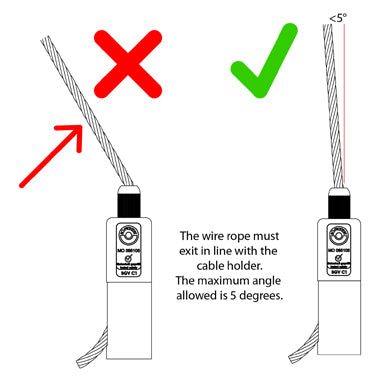

Reutlinger cable holders can be repositioned without damaging the cable. For any inquiries, please contact us via chat. NOTE: When exiting the cable holder, the wire rope cannot exceed 5 degrees.
Safety Precautions & User Manual - Type 50, Type 66 and Type 80
Features and Benefits:
- Simple to use without tools
- Infinitely adjustable
- No cable damage
- Time-saving
- Secure load suspension due to safety compliance (DGUV Regulation 17)
- Barely visible in the stage setting due to the non-reflective black coating
Specifications:
| Type | SWL | Overall Length / Weight | Tube Diameter / Clamp Width |
| Type 50 (Doughty T58081) |
4mm Wire - 60 Kg 5mm Wire - 90 Kg |
165mm / 0.5kg | 48-51mm / 30mm |
| Type 66 (Doughty T58101) |
6mm Wire - 135 Kg 6.35mm Wire - 150 Kg |
160mm / 0.5kg |
48-51mm / 30mm |
| Type 80 (Doughty T57010) |
6mm Wire - 135 Kg 8mm Wire - 240Kg |
228mm / 1.62kg |
48-51mm / 50mm |
Other types of Reutlinger Cable Holder:
- Side Exit Wire
- a Ring at one end
- a Ring at one end (Side Exit Wire)
-
a Fork at one end
- a Fork at one end (Side Exit Wire)
- Male Thread at one end
