Heavy-Duty Boom Arm - An Attractive Solution without Brace

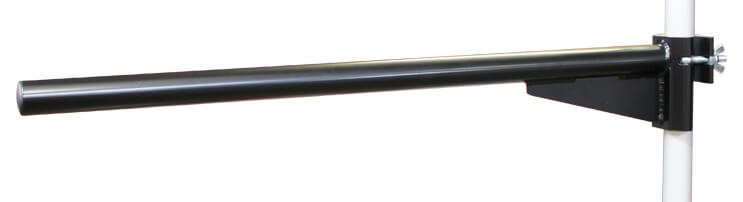

A new 1000mm Heavy Duty Boom Arm with an SWL of 50kg capable of taking the weight of a moving light has been launched by Doughty Engineering. This latest addition to the Boom Arm range is set to offer users an attractive and strong solution without the need for a brace.

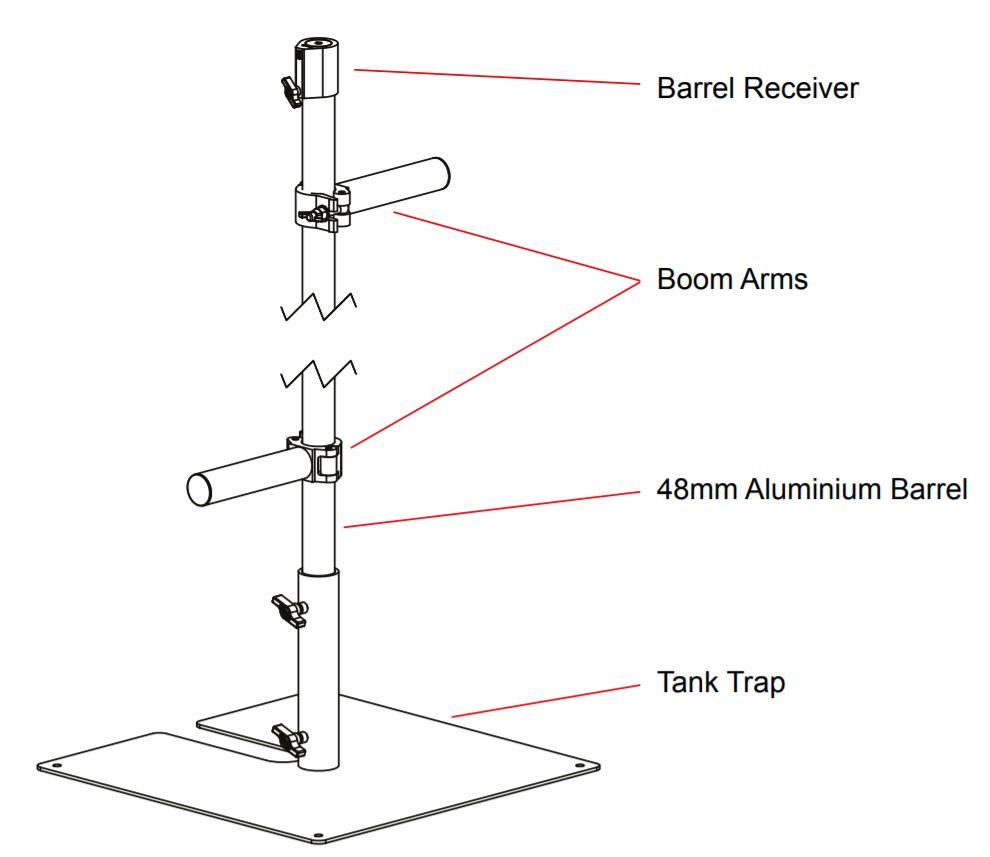

The lighting boom arm is ideally fixed to aluminium truss pieces and standard scaffold poles, also known as lighting booms. Lanterns can be mounted on the horizontal boom arms to create sidelight or cross light across the stage.

"It has an SWL of 50kg which should more than suffice in the majority of situations while still looking good in its place" - Mark Chorley, Design Engineer at Doughty Engineering. Compared with the 25kg SWL of the standard 1000mm Doughty boom arm, the extra 25kg makes a big difference for event set-ups.

Read more of the Heavy Duty Boom Arm here.

Fast & International Delivery. For any inquiries, please contact us via chat.

Features and Specifications

• The latest addition to the Doughty Boom Arm range
• This long boom arm delivers a sturdy point to hang heavy equipment
• It offers an attractive solution without the need for a brace, strong enough for a moving light

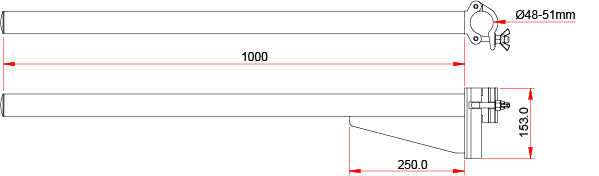

• Length: 1000mm long
• SWL: 50kg
• Tube Diameter: fits 48mm-51mm tube
• Material: AW6082-T6 aluminium
• Fixings: Grade 8.8 BZP, max. tightening torque 30 Nm
• Safety Factor: 5:1
• Weight: 3.0 kg
• Finish / Part No.: Polished silver (T57335) or powder painted satin black (T57336)

Items you may also need for stage lighting:

• Doughty Tank Trap: A lighting boom base with a long 48mm receiver to secure a bar/tube.
• 48mm Tube/Bar (Aluminium/Steel): A standard tube for attaching horizontal boom arms for sidelight.

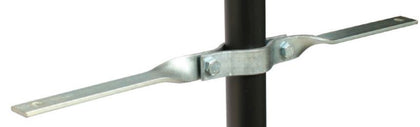

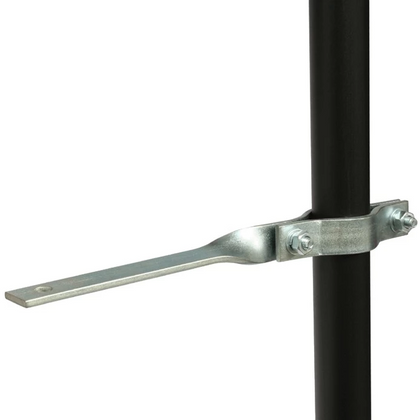

• Boom Arms: Standard boom arm, boom arm with a brace
• Doughty Receiver: Attach 48mm/51mm tubes or bars to lights.
• Doughty Clamps: Mount lights, speakers or other equipment to the horizontal boom arms.
