CM BatteryStar Hoist

Product No. BCC1008S202US-6M

Regular price €3,192.09 excl. €734.18 VAT €3,926.27 incl. €734.18 VAT
Unit price  per
HOL (M)
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

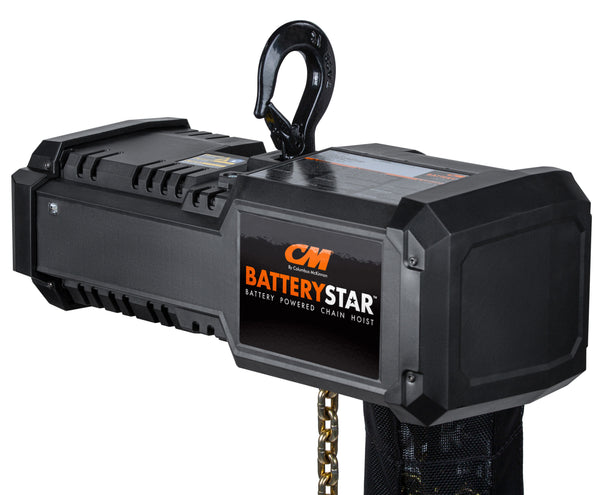

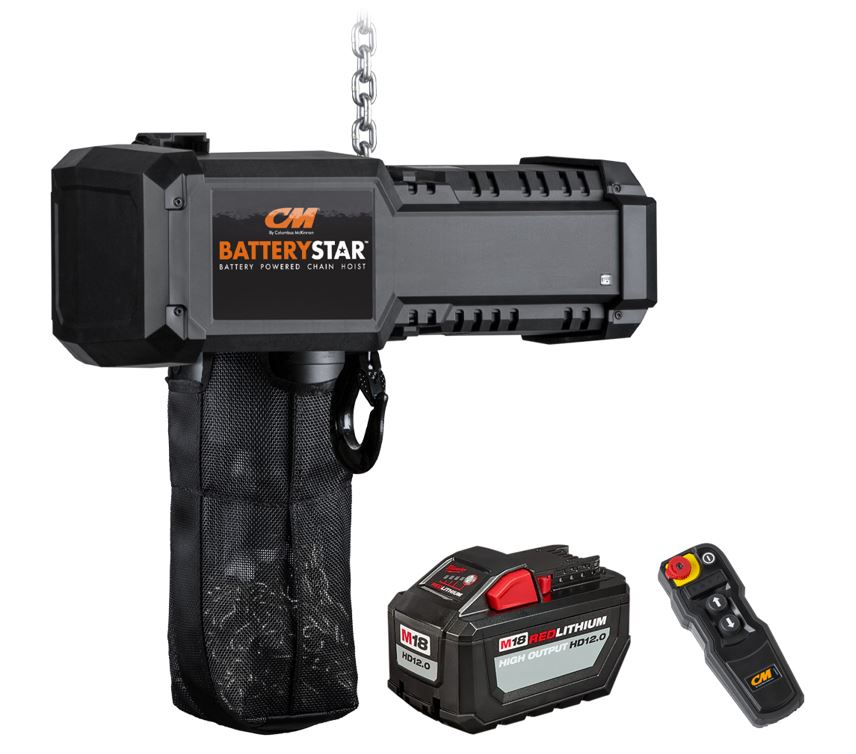

CM BatteryStar Hoist



Battery-Powered Chain Hoist

The CM® BatteryStar™ Battery Powered Chain hoist is built with industry-leading technology from Columbus McKinnon and Milwaukee Tool®. Designed for portability and easy installation, the BatteryStar can have you lifting in minutes – simply attach the hoist to an anchor point, slide in a battery, and you’re ready to go! Powered by an M18™ Red Lithium Battery from Milwaukee Tool®, the BatteryStar is built for heavy-duty lifting and uses the same M18™ battery you may already have on your job site for added convenience.



Capacity: 1,000 kg

Lift: 6 m

Lift Speed: 2.4 m/min






No Electric Power Required

Operates on battery power, specifically a Milwaukee Tool® brand M18™ battery, making it ideal for temporary applications or areas of a facility or job site where electricity is unavailable or difficult to reach.
Provides lifting speeds up to 8 FPM, helping increase operator efficiency as much as 4x compared to using a manual hoist. Hoist also helps reduce operator effort and fatigue as compared to using a lever or hand chain hoist.



Versatile Operation

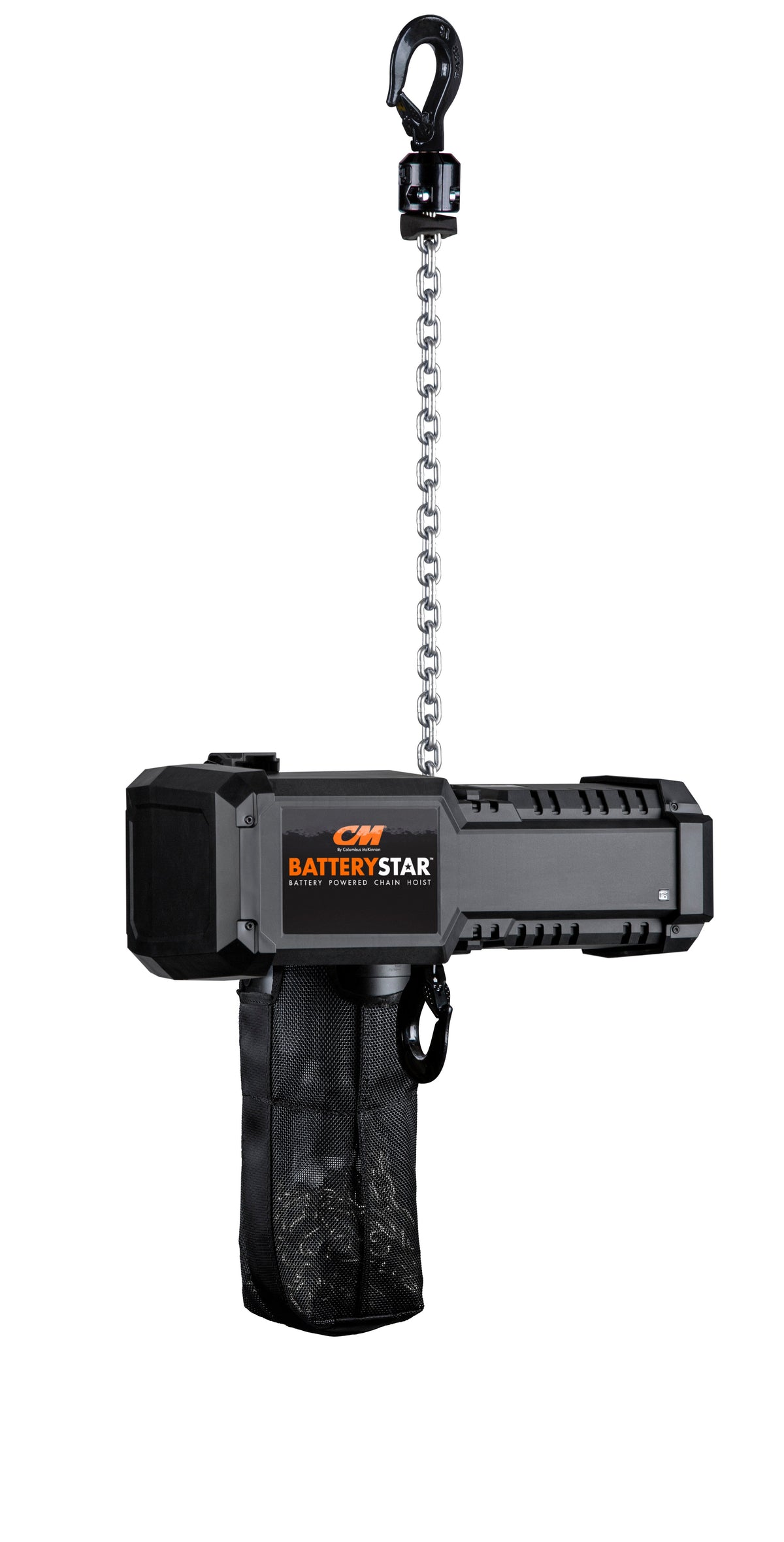

Hoist can be used in either typical mounting orientation with the hoist body attached to the anchor point or inverted.
Inverted operation eliminates the need to carry the weight of the
hoist up to the anchor point. Just carry the hook up to the anchor

Portability

Weighing less than 50 lbs. when 20 feet of chain is included, the BatteryStar is compact and lightweight for easy portability within a facility or to a job site.
Optional road/carrying cases available. Contact us for details.
point and let the hoist lift itself and the load up.



Patent-Pending Brake

With a patent-pending design, the mechanical brake automatically applies itself when lowering the load, providing controlled descent and positioning.
Brake inspection windows on the top and bottom of the hoist allow operators to easily check brake wear, helping to facilitate preventative maintenance.



Durability & Reliability

Electronic clutch and secondary mechanical clutch provide dual protection from hoist overload.
Integrated limit switch for the highest and lowest hook position considerably extends the service life of the slip clutch, motor, and gearbox.



Long Hoist & Chain Life

Rugged composite hoist cover designed for durability in rough conditions.
Brushless DC motor for extended hoist life.
Zinc-plated load chain for protection against corrosion.
Electronics are IP55 rated.



Safe, Remote Operation

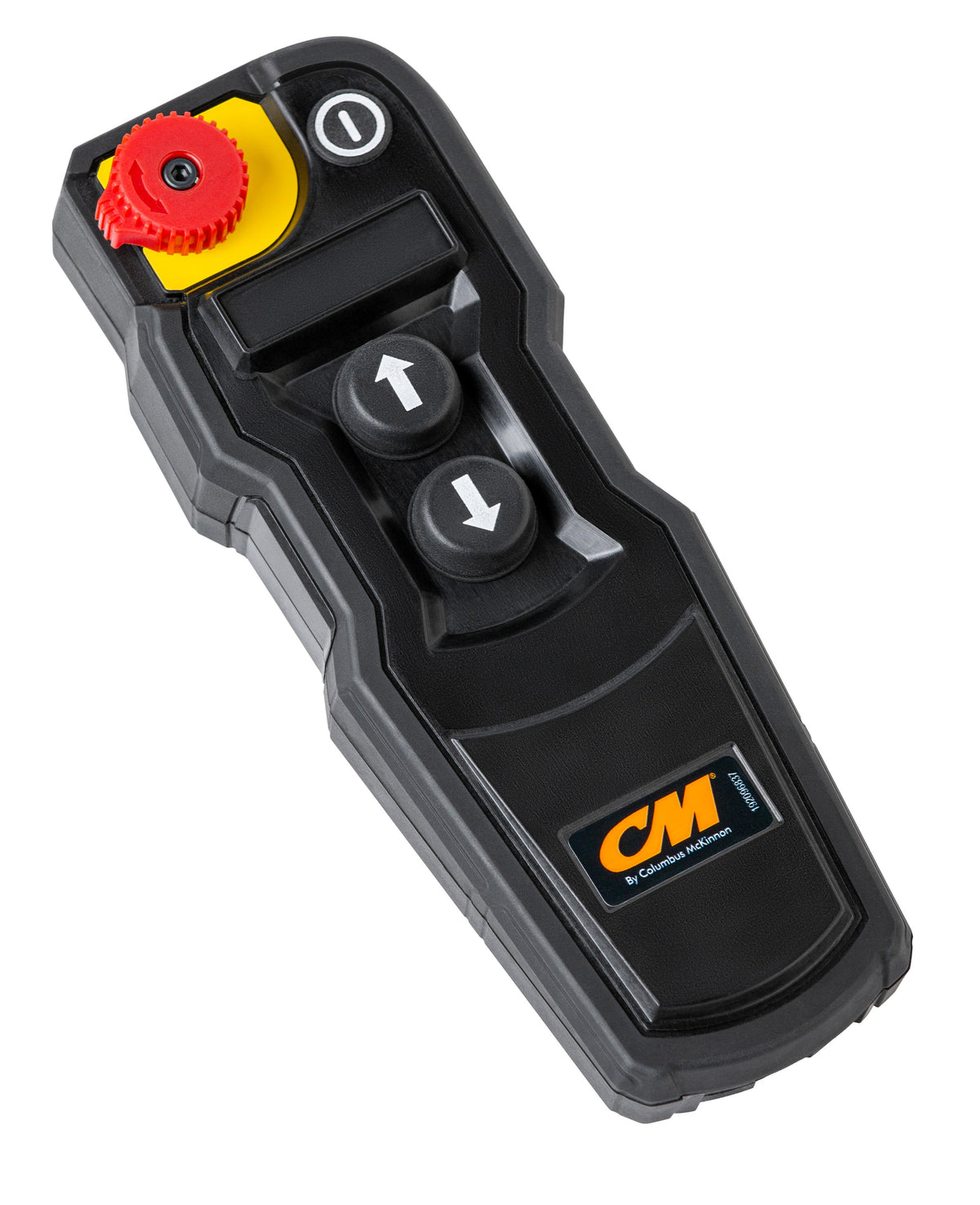

Remote buttons allow for true variable speed – the further you push the button, the faster the lifting speed. This allows the operator to precisely position the load.
Wireless remote keeps the operator safe and away from the load,
allowing for operation from over 60 ft. away from the hoist.
Remote features built-in intelligence, alerting the operator with light-up icons if the hoist is overcapacity, low battery, or hoist inspection is due.* See image to the left.
Rugged and durable, the remote is IP55 rated and can stand up to the harsh conditions of any worksite.
Remote is easy to connect. Features a light to show that connection is in progress, and the hoist makes an audible sound when connection is complete.
Standard stop button easily disables the remote.
Remote includes a lanyard to prevent the operator from dropping
it during operation and a belt clip for easy portability.
RF-certified.



Trusted, High-Quality Battery

Supplied battery is fully compatible with more than 250
Milwaukee Tool® products utilizing M18™ batteries for added
convenience on the job site.

Unique patented designs protect every REDLITHIUM™ Battery,
safeguarding your investment through drops, weather
exposure, and harsh environments.
Hoist includes Milwaukee Tool® ONE-KEY™* that allows you to:
Connect your hoist and other smart tools to your job site for
easy asset management and tracking.
Access to equipment information from your computer or
smartphone with an easy-to-use app and interface.
Inspection interval feature to set reminders and store
records of hoist inspections.



Quick & Easy Installation

Lightweight and portable, the BatteryStar can be easily attached to an anchor point, then you’re ready to lift. No cords or power is required.
Simply snap a charged battery into place, and the hoist is ready to operate.



Precise Lifting

Hoist offers true variable speed, allowing for precise lifting in any application.
