Yale Electric Chain Hoist 1 Ton, 4/1 m/min (CPV/F)

Electric Chain Hoist 1 Ton (Trolley or Suspension Lug)

Model No.: CPV 10-4 & CPVF 10-4

The electric hoist 1 Ton (Model CPV/F) combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications.

The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor, and gearbox. Check the video below.

With a double chain fall & lifting speed at 4 m/min (main lift), this electric hoist 1 ton comes in 2 versions:
- CPV 10-4: single speed, 4 m/min
- CPVF 10-4: two speeds, 4 m/min main lift and 1 m/min fine lift

It is offered with a standard lift of 3 m, with suspension lug, push trolley or electric trolley (other lifting heights on request). For any inquiries, please contact us via Chat.

Electric Chain Hoist Specification for CPV/F Model

• The easily removable housing cover
  Gives direct access to all electrical connections
• Electromagnetic spring pressure brake
  Holds the load safely even in the event of power failure.
• Motor
  Protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.

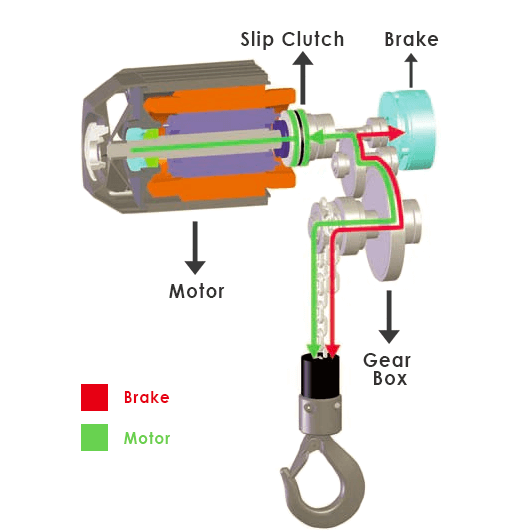

• The easily adjustable slip clutch
  - Designed to guarantee a permanent connection between the load and the brake.
  - Brake holds the load securely without the load dropping, even when the slip clutch is activated.
• The standard, oil bath lubricated and case hardened gearbox
  Has a helical gearing for particularly smooth running and enhanced lifetime.
• Suspension lug
  - For compact dimensions
  - Easy integration in closed-eye constructions.
• Steel chain guide
• The main contactor
  As standard, for increased safety.
• Standard Operating Voltage
  Euro-voltage 400 V, 3-phase, 50 Hz
• Increased operating safety
  Through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
• 2-year warranty (excluding wear parts) and a lifetime lubricated gearbox.

SPECIFICATIONS

TECHNICAL DATA (400 V, 3-phase, 50 Hz, manufacturer data)

* Weight at standard lift (3 m).

VERSIONS

• CPV 10-4 / CPVF 10-4: with suspension lug
• -VTP-A: with integrated push trolley, size A (beam flange width 58-180 mm)

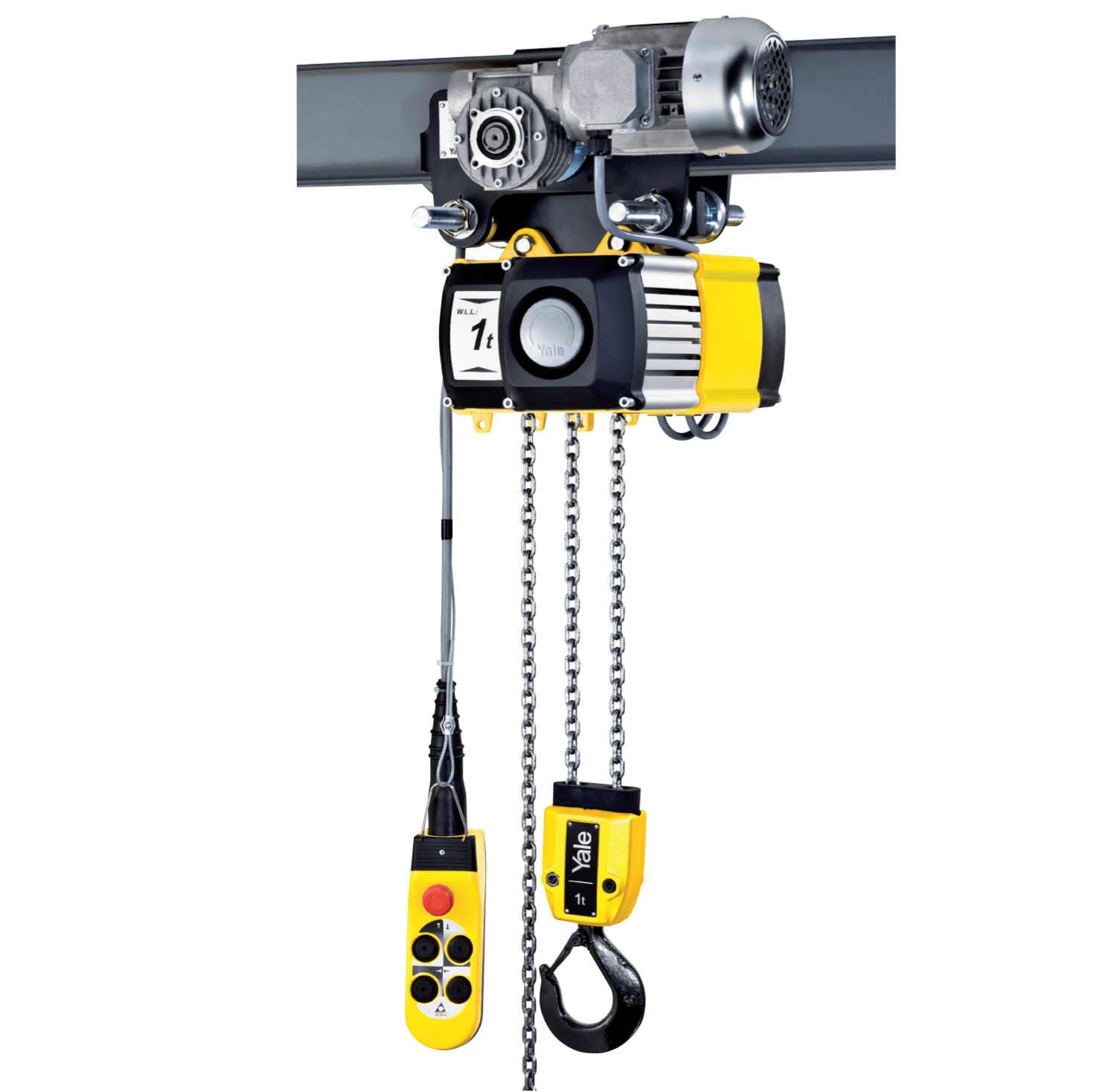

• -VTE-A: with integrated electric trolley, size A (beam flange width 58-180 mm, travel speed 18 or 18/4.5 m/min)
• Lift: 3 m (other lifting heights on request)

OPTIONS

• Stainless steel load chain (no reduction of working load limit)
• Suspension hook
• Flexible chain container
• Other operating voltages
• Counter for operating hours and number of starts
• Radio remote control
• Control for synchronized operation of several hoists
• Manual and electric trolleys
• Festooned cables systems and alternative power supplies
• Suspension for light crane systems

DETAILS

• Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
• Also available as 230 V, 1-phase, 50 Hz (25% ED) version. Optionally available with electric trolley.
