Yale Electric Chain Hoist 500Kg, Dual Speed (CPVF)

Electric Hoist 500kg (Trolley or Suspension Lug)

Model No.: CPVF 5-4

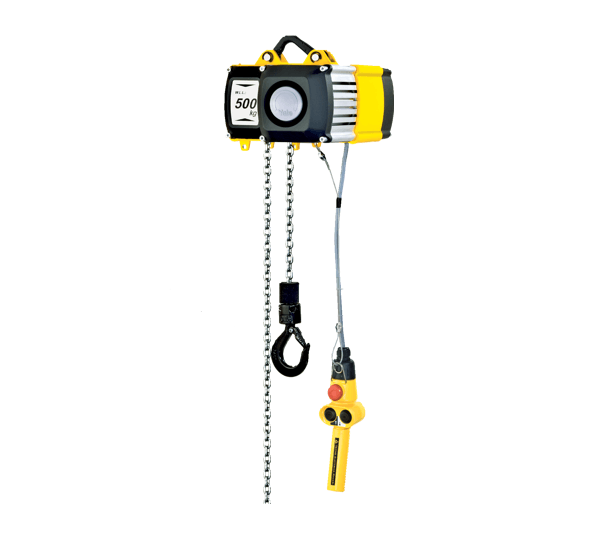

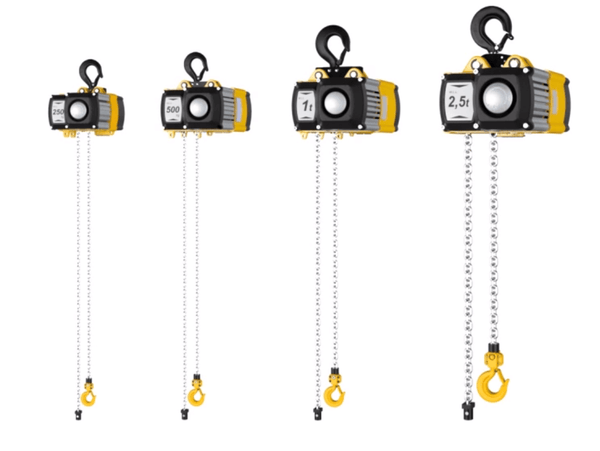

The electric hoist 500kg (model CPVF 5-4 from the Yale CPV series) combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications.

The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor, and gearbox.

With a double chain fall & lifting speed at 4m/min (main lift), this dual speed electric hoist 500kg has 2 lifting speeds.
- 4 m/min main lift
- 1 m/min fine lift

Available in 3, 6, 9, 12, 15 and 18 m lift, each with suspension lug (CPVF 5-4), with integrated push trolley (CPVF-VTP-A 5-4) or with integrated electric trolley (CPVF-VTE-A 5-4). For any inquiries, please contact us via Chat.

Electric Chain Hoist Specification for CPV/F Model

FEATURES

• The easily removable housing cover
  Gives direct access to all electrical connections
• Electromagnetic spring pressure brake
  Holds the load safely even in the event of power failure.
• Motor
  Protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets.

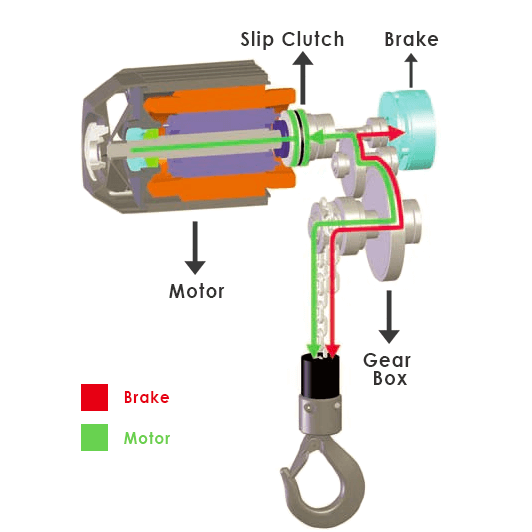

• The easily adjustable slip clutch
  - Designed to guarantee a permanent connection between the load and the brake.
  - Brake holds the load securely without the load dropping, even when the slipping clutch is activated.
  - Overload protection (slip clutch) is outside the force flow to meet higher safety requirements.
• The case hardened gearbox
  - Has a helical gearing for particularly smooth running and enhanced lifetime.
  - On the CPVF 5-4 the gearbox is lubricated with semi-fluid grease.
• Suspension lug
  - For compact dimensions
  - Easy integration in closed-eye constructions.
• POM chain guide
  The CPVF 5-4 has a thermoplastic (POM) chain guide that is integral with the housing.
• The main contactor
  As standard, for increased safety
• Standard Operating Voltage
  Euro-voltage 400 V, 3-phase, 50 Hz
• Increased operating safety
  Through 42 V control voltage (low voltage control), push-button pendant control, IP 65.
• 2-year warranty (excluding wear parts) and a lifetime lubricated gearbox.

TECHNICAL SPECIFICATIONS

• Capacity (WLL): 500 kg
• Number of chain falls: 2
• Load chain: 4 x 12.2 mm
• Lifting speed: 4 m/min main lift / 1 m/min fine lift
• Hoist motor: 0.37 / 0.09 kW
• Classification FEM/ISO: 1 Am/M4
• Duty cycle (ED): 33/17%
• Weight at 3 m lift: 21 kg (suspension lug), 30 kg (push trolley), 35 kg (electric trolley)
• Trolley (type A): capacity 500 kg, beam flange width 58 - 180 mm, flange thickness max. 19 mm, min. curve radius 0.9 m
• Electric trolley travel speed: 11 or 18 m/min, motor 0.09 kW
• Operating voltage: 400 V, 3-phase, 50 Hz; control voltage 42 V
• Protection: up to IP 55

OPTIONS

• Stainless steel load chain (no reduction of working load limit)
• Suspension top hook
• Flexible chain container
• Other operating voltages
• Counter for operating hours and number of starts
• Radio remote control
• Control for synchronized operation of several hoists
• Manual and electric trolleys
• Connection to festooned cable systems

DETAILS

• Yale electric hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
• For 230 V, 1-phase, 50 Hz supply the single speed model CPV 5-2 (500 kg, 2 m/min, 25% ED) is available in the CPV range. Optionally available with an electric trolley.
