Bravi Leonardo HD

Product No. Leonardo HD

Regular price $12,252.00 excl. $2,817.96 VAT $15,069.96 incl. $2,817.96 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

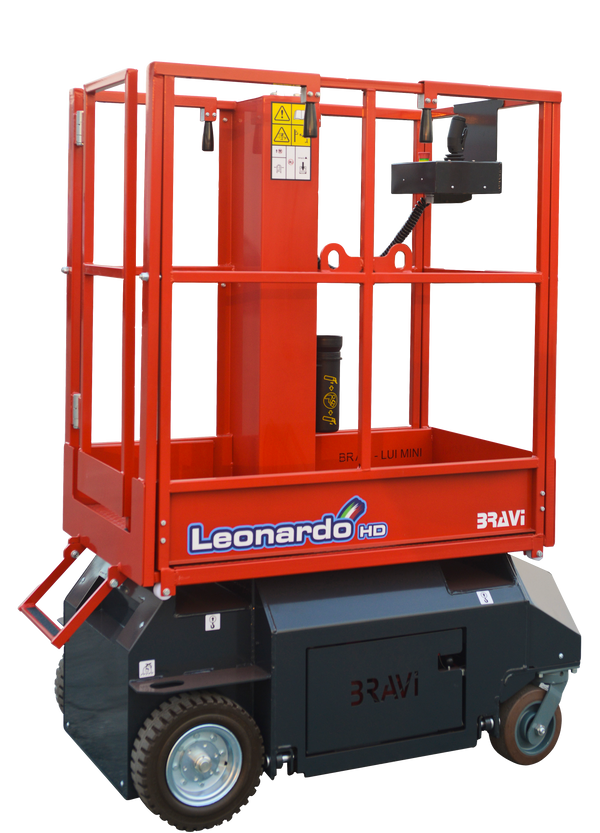

Leonardo HD

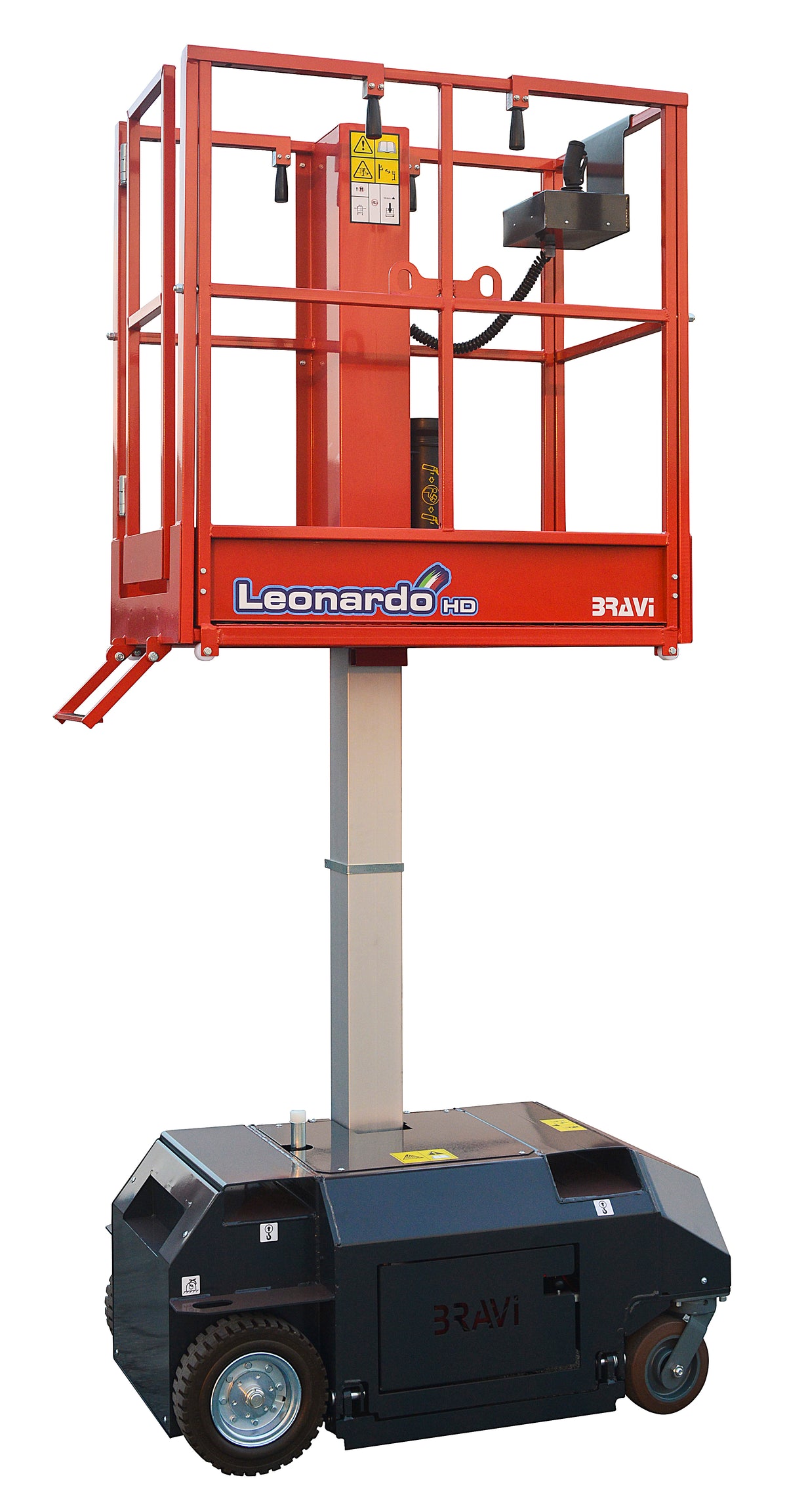

Leonardo HD is the first mobile platform to arrive on site and the last to leave!

  • second generation of the tried and tested Leonardo platform
  • allows you to reach a working height of 5 meters
  • integrated forklift pockets
  • provides exceptional maneuverability in difficutl working conditions
  • pothole protection mechanism provides unique ground clearance
  • with lowered platform it is able to overcome gradients of 35% and, through the use of simple ramps, can overcome obstacles such as steps and stairways

Datasheet



EFFICIENCY AND VERSATILITY

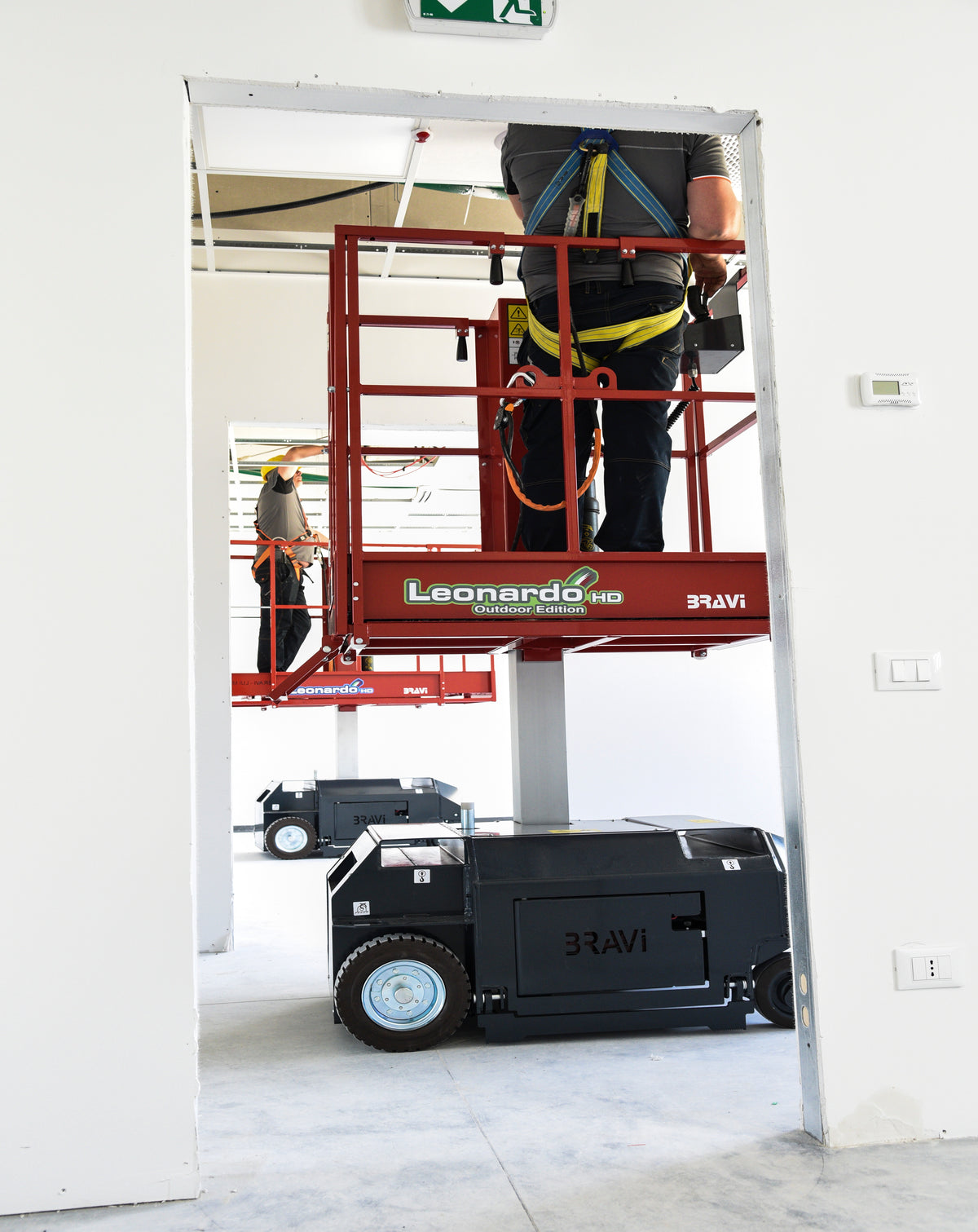

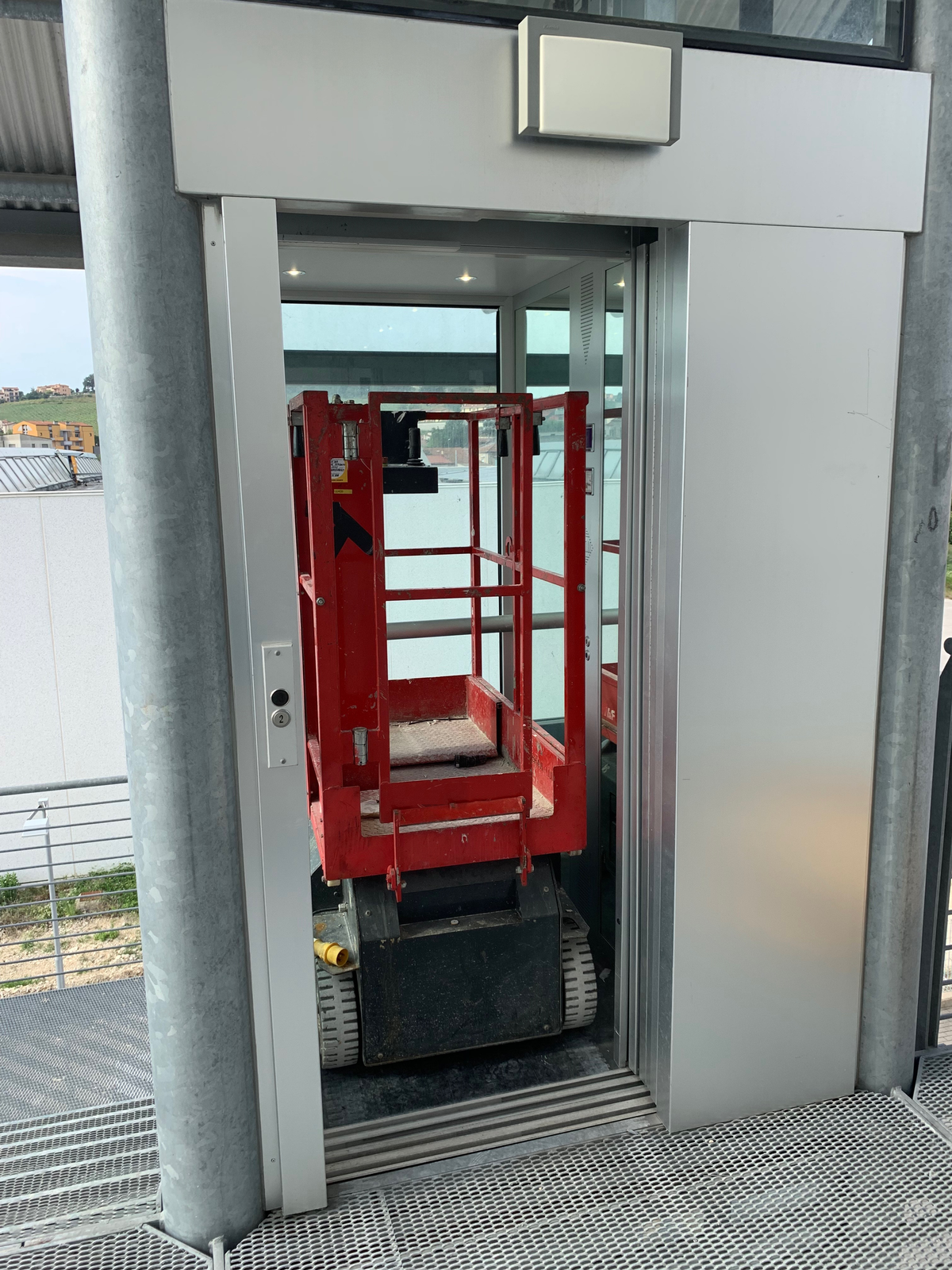

The Leonardo HD can be easily driven through doorways and into tight spaces that would require you to use scaffolding or ladders. The revolutionary compact size of this platform, its versatile manoeuvrability, and featherweight of only 510 kg. (1124 lbs.), allow the Leonardo HD to fit into most elevators, reaching top floors effortlessly and driving through standard doorways without requiring the operator to leave the platform.

SAFETY

LEONARDO moves quickly (3 km / h – lowered and 0.6 km / h – raised) and, thanks to its 180 kg capacity, lifts the operator with tools and materials, positioning it at the desired height. In this way, the risk of accidents due to the frequent manual loading of heavy materials is considerably reduced and the efficiency of each individual is maximized, avoiding unnecessary waste of time to carry out repositioning operations. Thanks to its amazing ground clearance of 87 mm, combined with an extremely compact footprint and locking system on the front wheels, LEONARDO HD is able to move in a straight line back and forth, allowing the operator to work in the tightest spaces, significantly decreasing at the same time the possibility of making mistakes.

DURABILITY

Simple, easy to use and convenient, LEONARDO HD is the result of continuous technical improvements. Apart from the control of the water level in the batteries, it does not require any kind of routine maintenance, keeping the annual management costs extremely low. NEW: Battery maintenance can be completely eliminated by choosing the 100 Ah 12V AGM battery option, also available for all other models.

Accessories

Toolbox
  • Length: 550 mm / 21 in
  • Width: 153 mm / 6 in
  • Height: 149 mm / 1.9 in
Solo Gyps

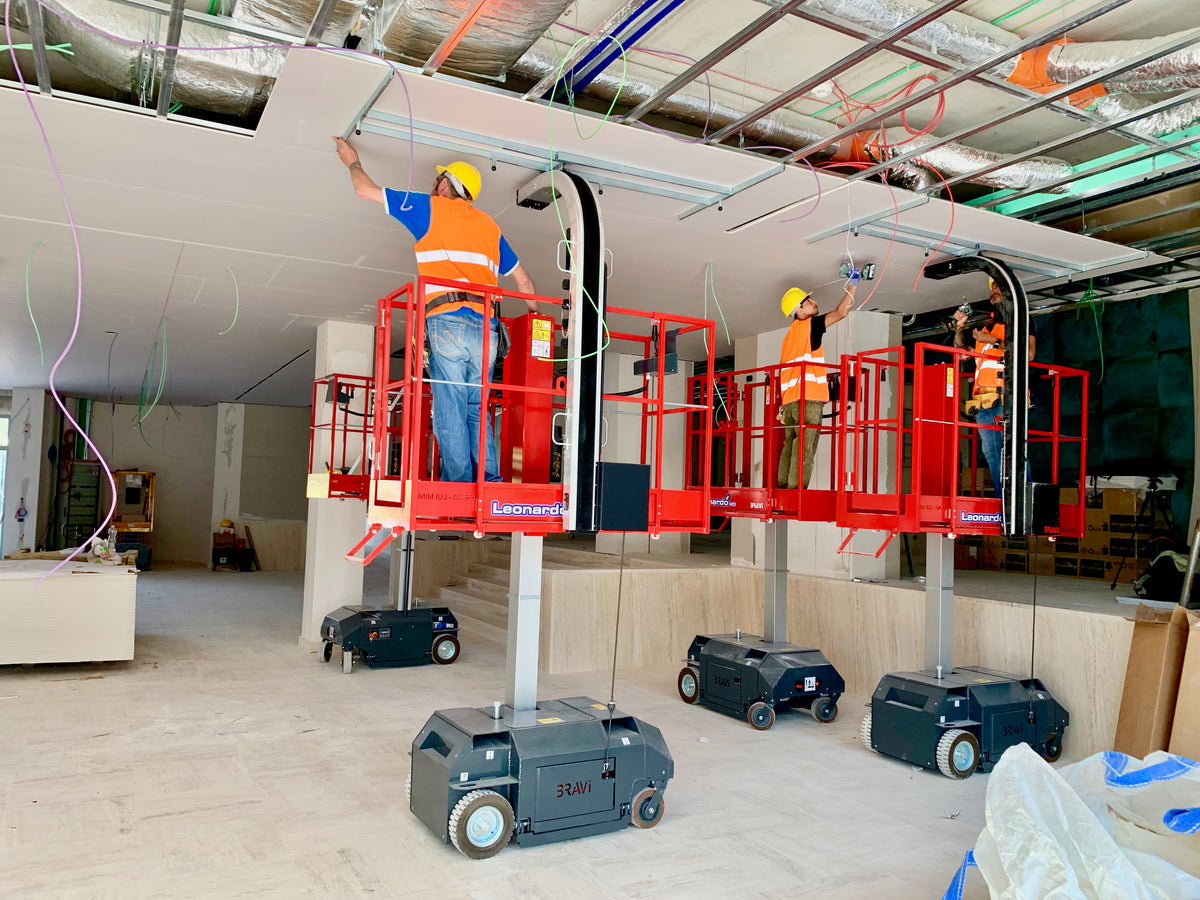

Created to be used in combination with Leonardo HD, this fully motorized electric drywall lifting system greatly simplifies the positioning of panels, while reducing labor costs and installation time.

PERI Skydeck

Created by our R&D division in collaboration with PERI Group, this accessory allows operators to work more efficiently during the positioning of slab formwork.

Magnetic storage box

Convenient and sturdy storage box with magnetic hook. Compatible with all models of the Bravi range.

Small-E

Innovative inspection device custom-made and certified to be used on the Leonardo HD, it simplifies and improves safety during regular inspections in tight areas located on ceiling surfaces.

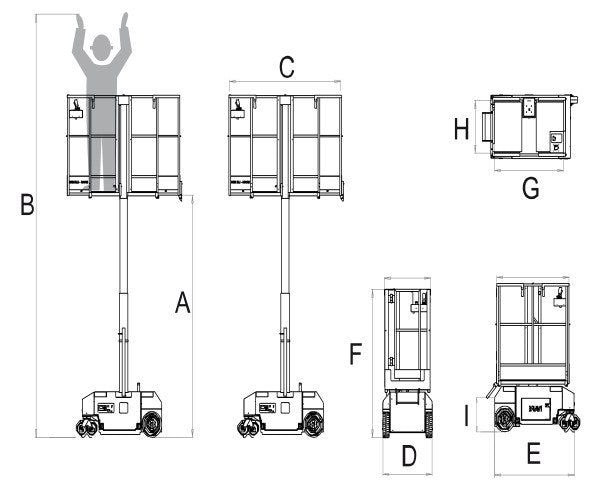

Measurements

Platform Height 2900 mm
Working Height 4900 mm
Platform Length W/ decks ext. 1710 mm
Width 739 mm
Base Length 1192 mm
Height Stowed 1747 mm
Platform Length 1115 mm
Entry Step 400 mm
Ground Clearance – front 92 mm
Ground Clearance – middle 87 mm
Platform Capacity w/ decks ext. 180 kg
Unit Weight (CE) 510 kg
Rated Number of Occupants (CE) 1
Drive Speed Stowed 3 km/h
Drive Speed Elevated 0,6 km/h
Raise/Lower Speed 16 / 21 sec
Inside Turning Radius ZERO
Outside Turning Radius 1253 mm
Gradeability 35%
Power Source 110/220 V ca 24Vcc
Batteries n° 2 – 12V; 85Ah@20h
