Bravi Sprint
Product No. Sprint
Shipping calculator
Payment methods
Product details
Sprint

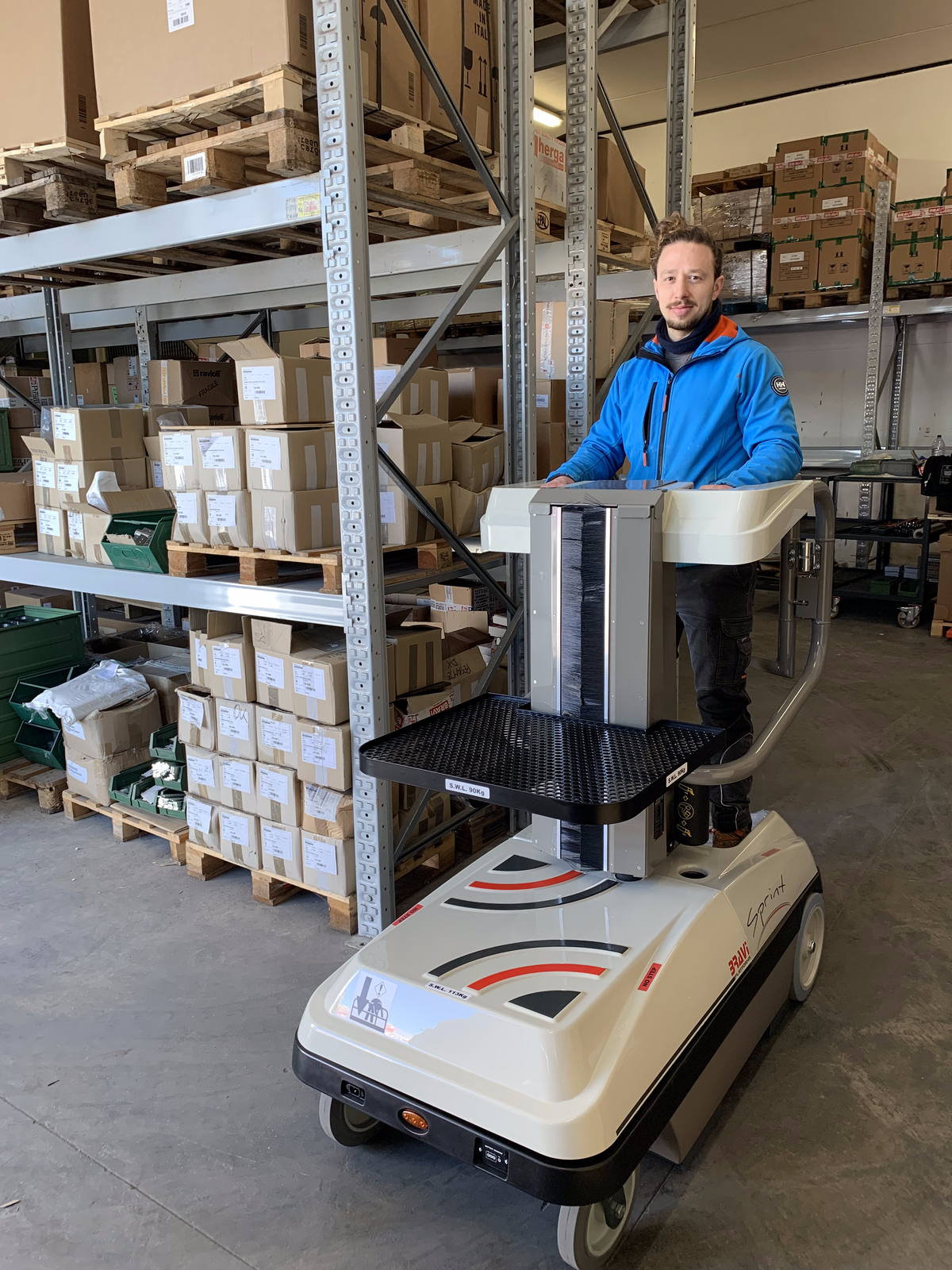

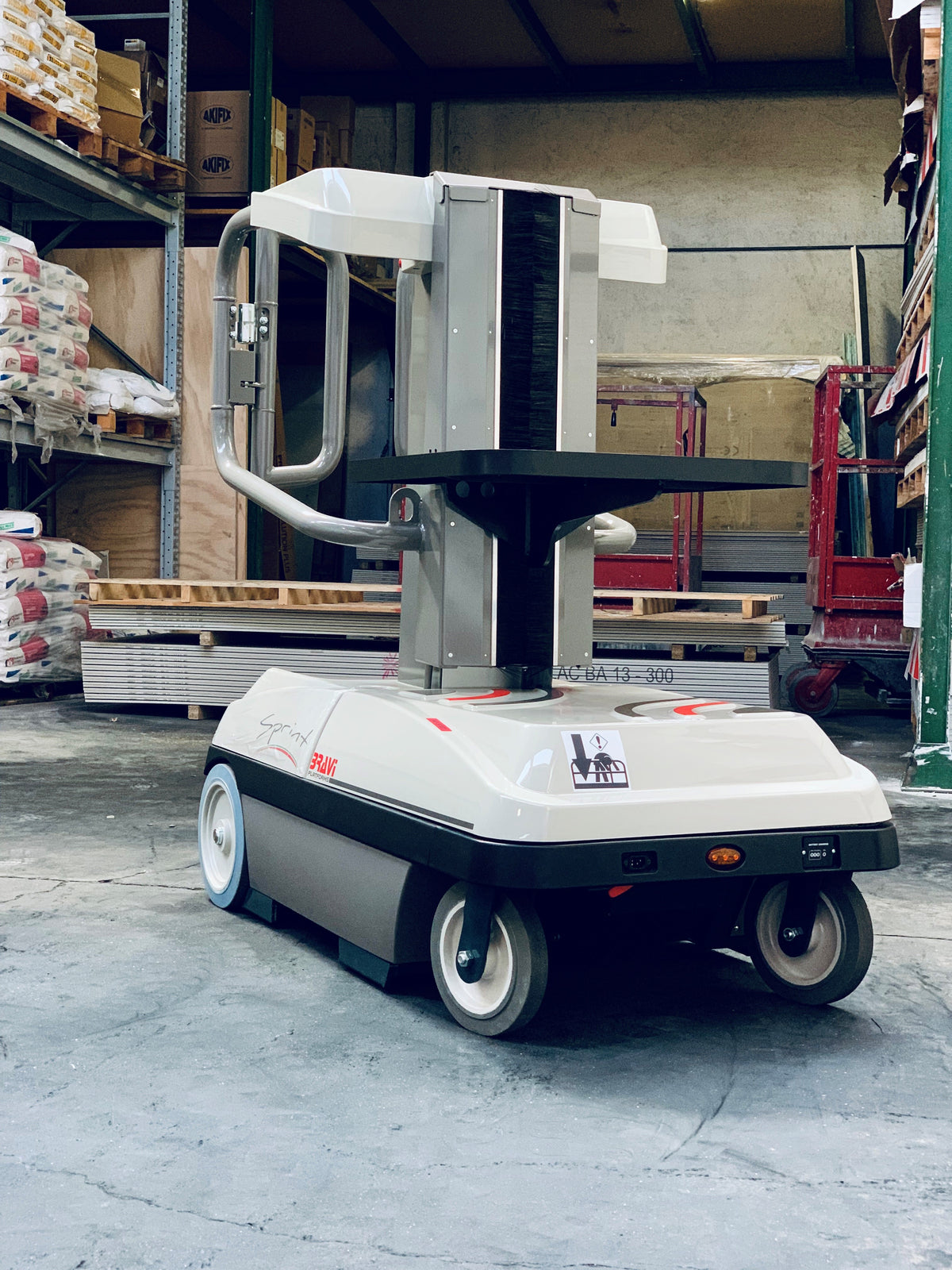

The Sprint is an innovative and versatile order picker that increases productivity and efficiency, offering superior safety
- an innovative order picker
- working height 5.35 m
- it can complete a full rotation on its axis
- 80.8 cm wide, 150 cm long
- control panel equipped with a large LCD display showing vehicle status, system operating time and battery status via a charge indicator
EFFICIENT AND VERSATILE

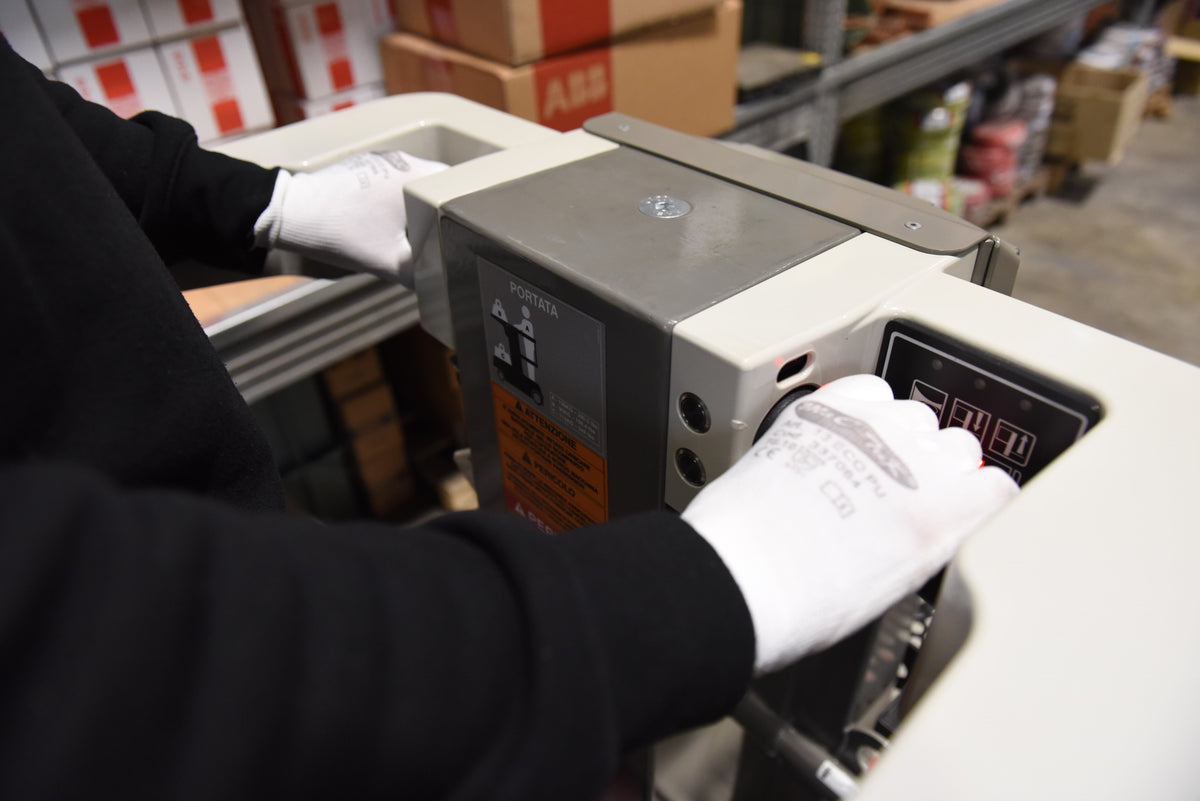

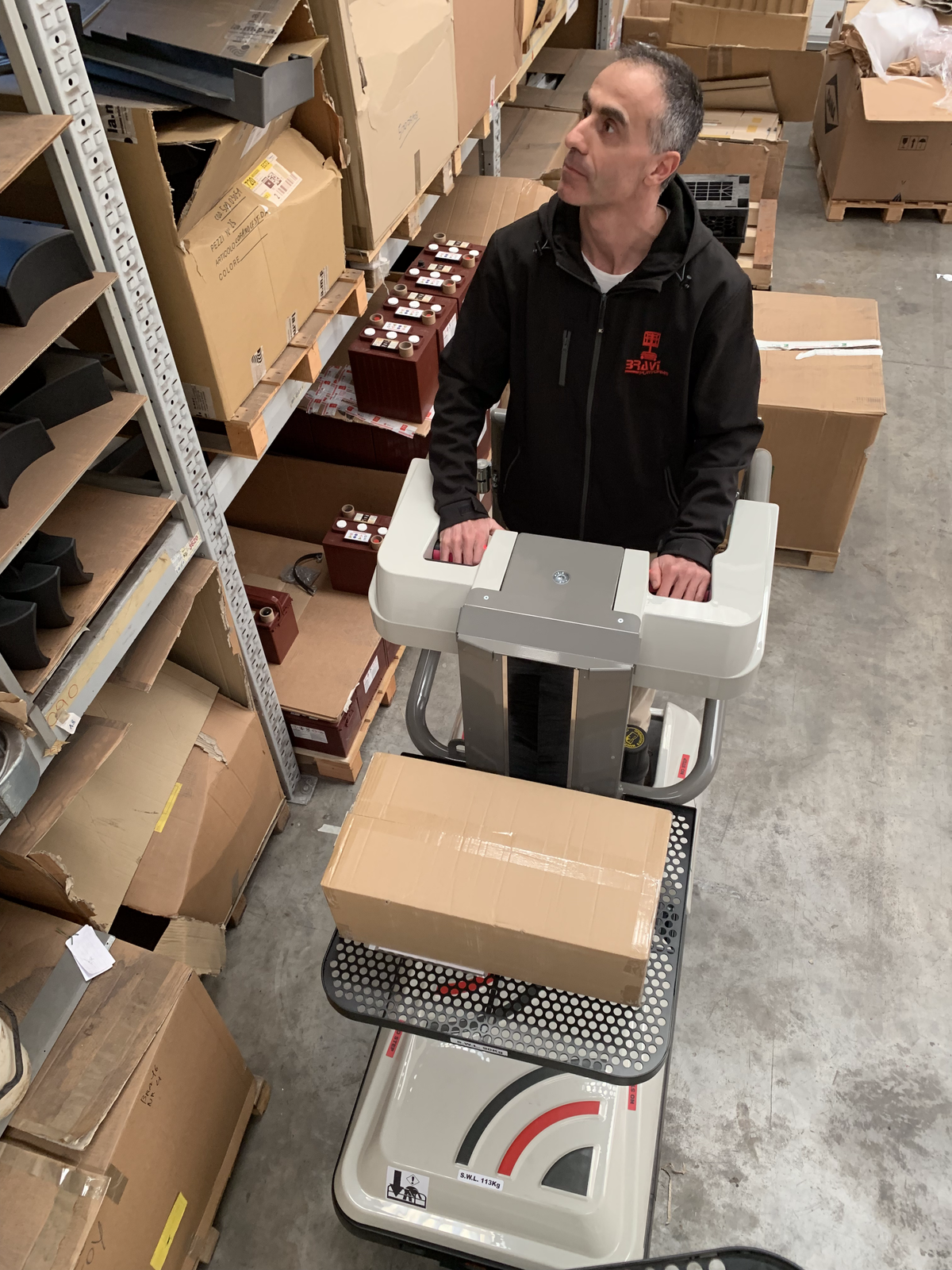

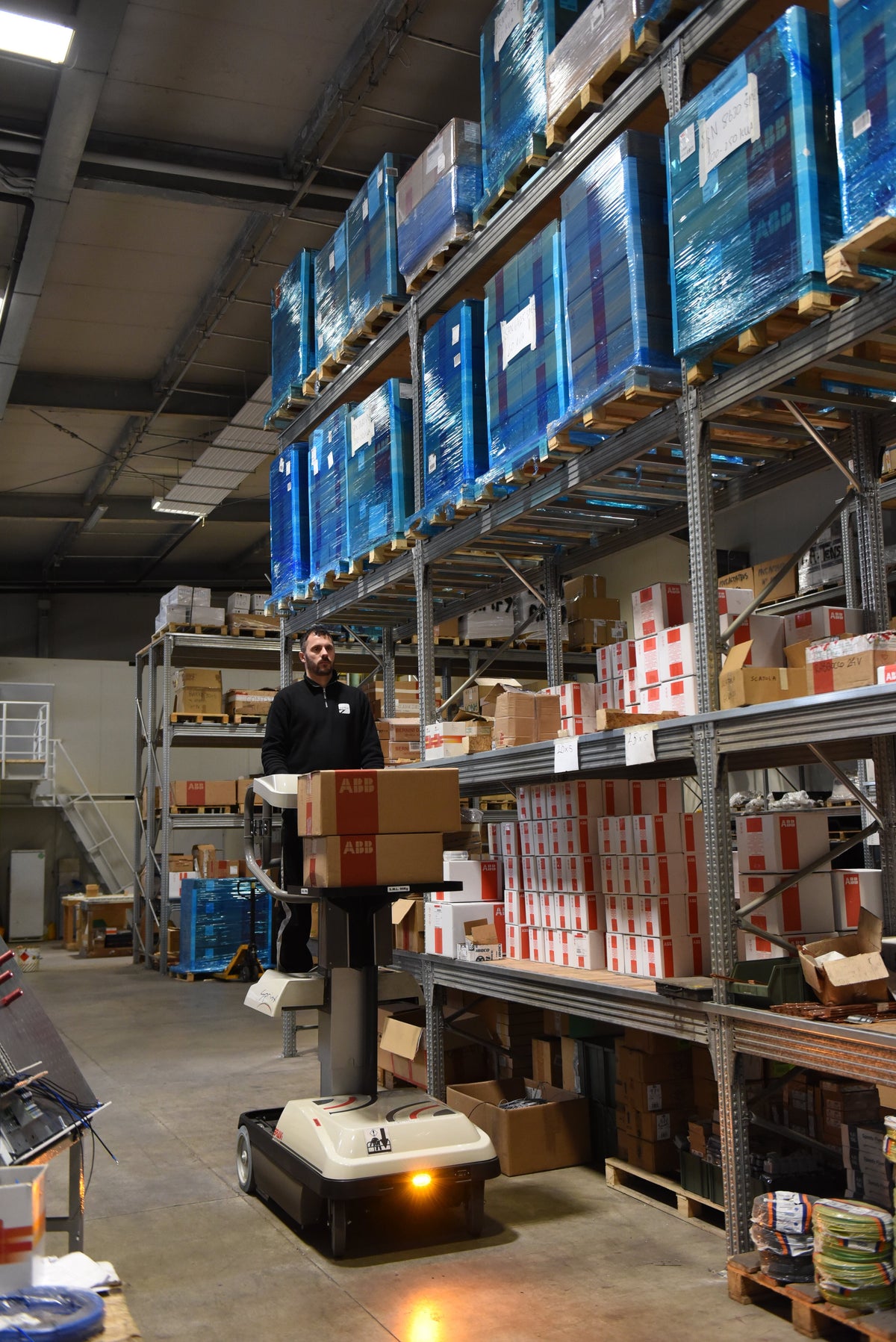

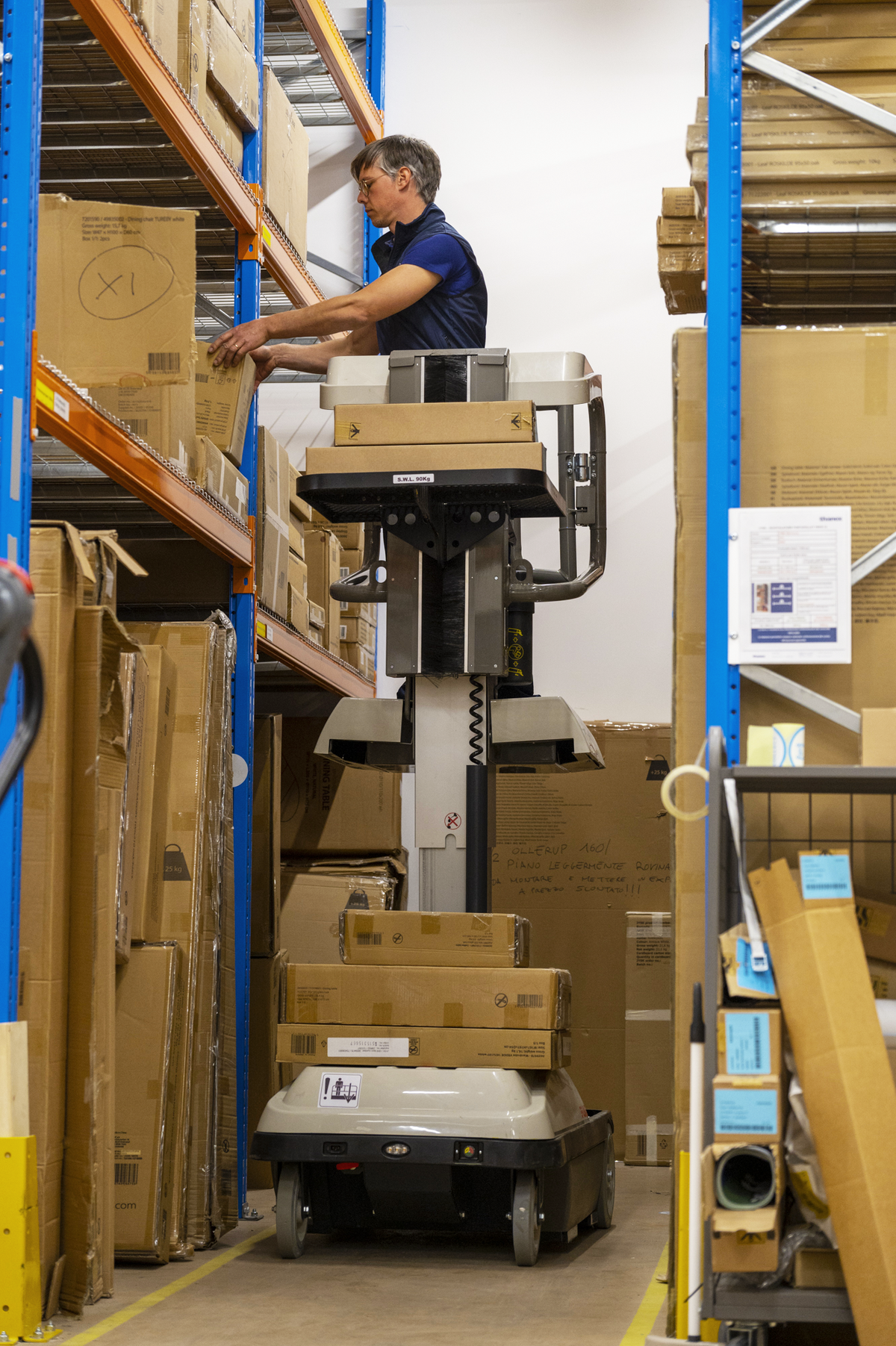

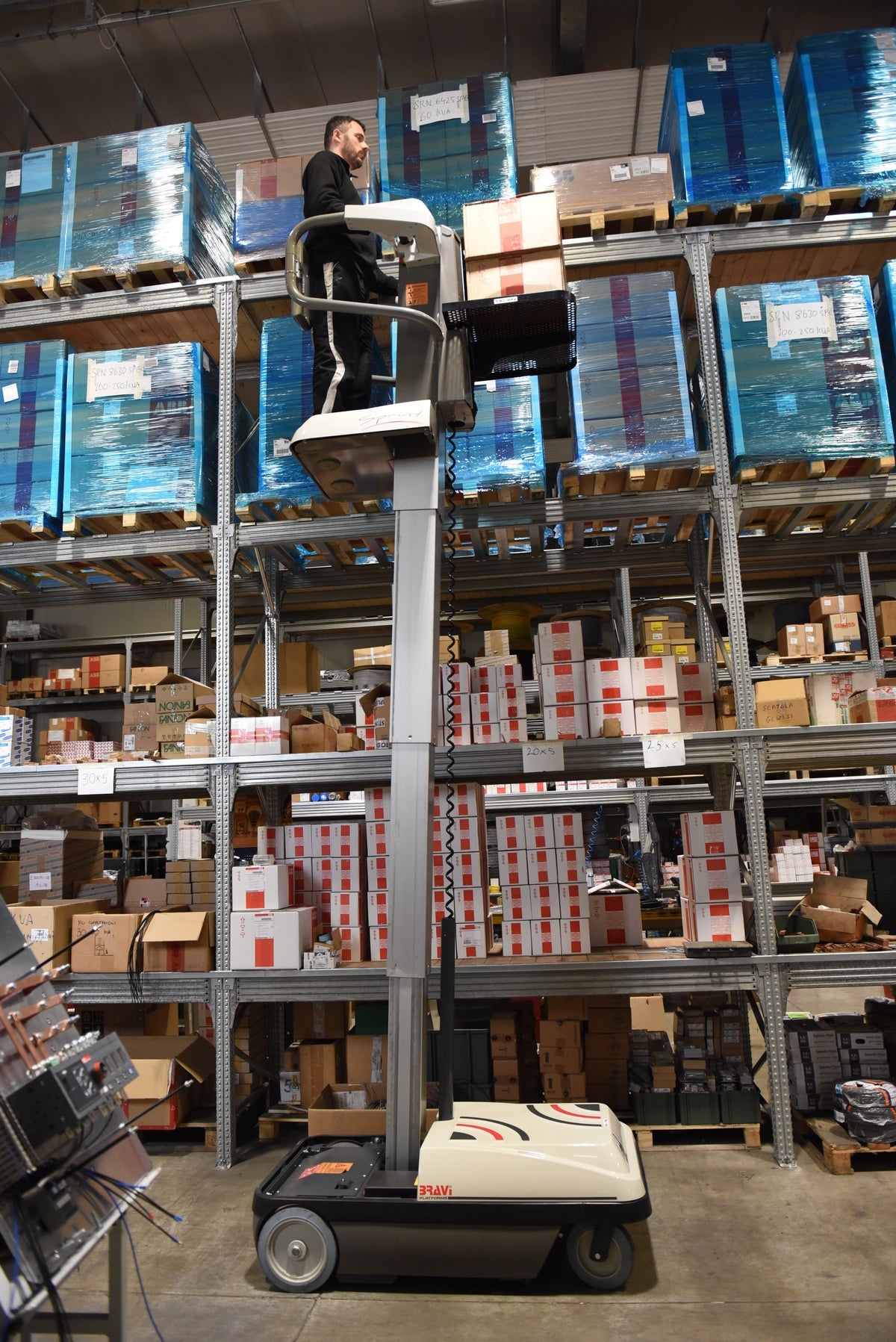

Sprint moves quickly and simultaneously lifts both the operator and materials to the desired height. The innovative load shelf can carry up to 90 kg and can be electrically adjusted by simply pressing a button on board. Additionally, it's possible to store additional material on the hood transport platform up to a maximum of 113 kg. All functions can be activated without having to move the hand from the accelerator for maximum operator comfort.
SAFE

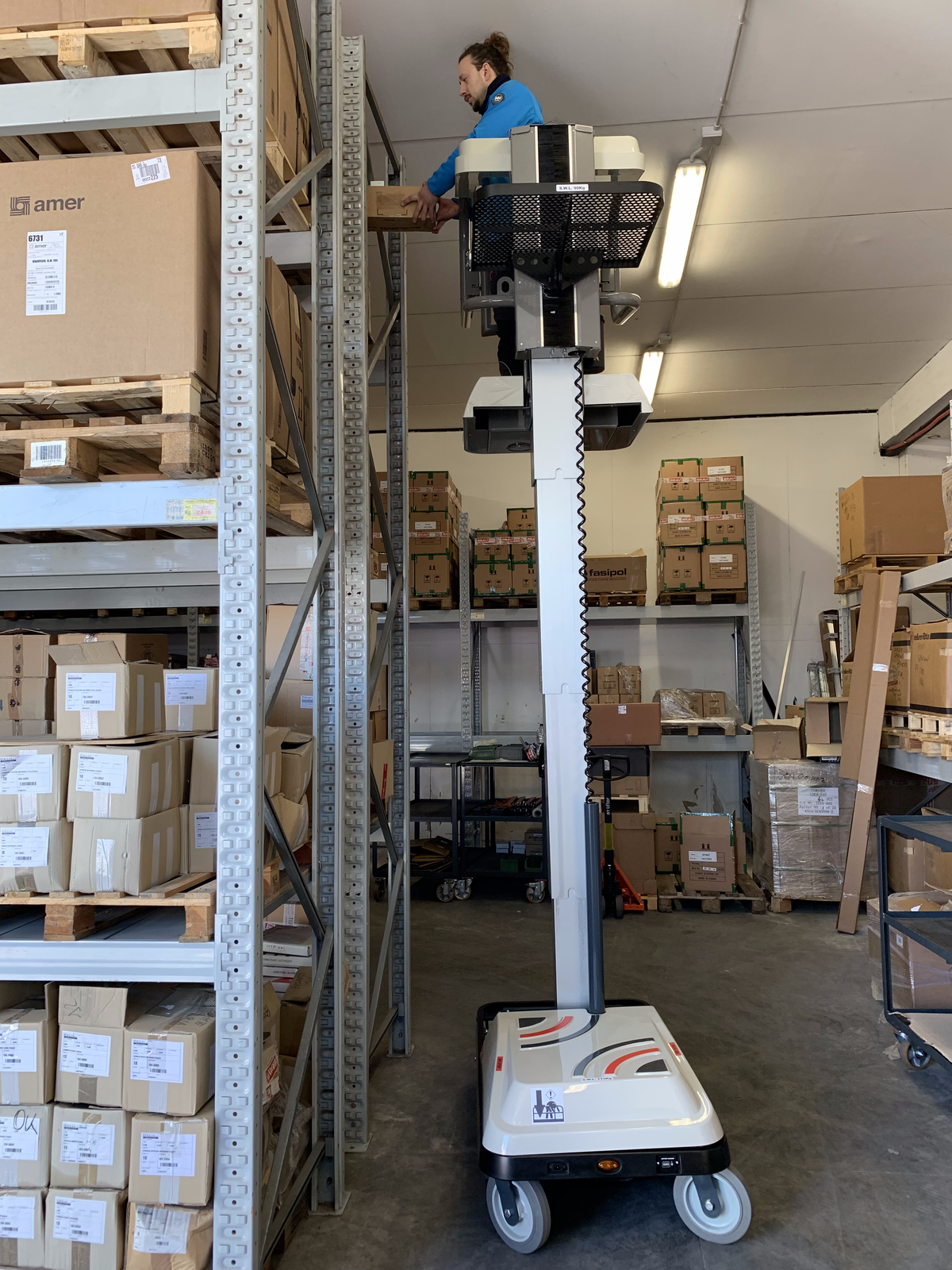

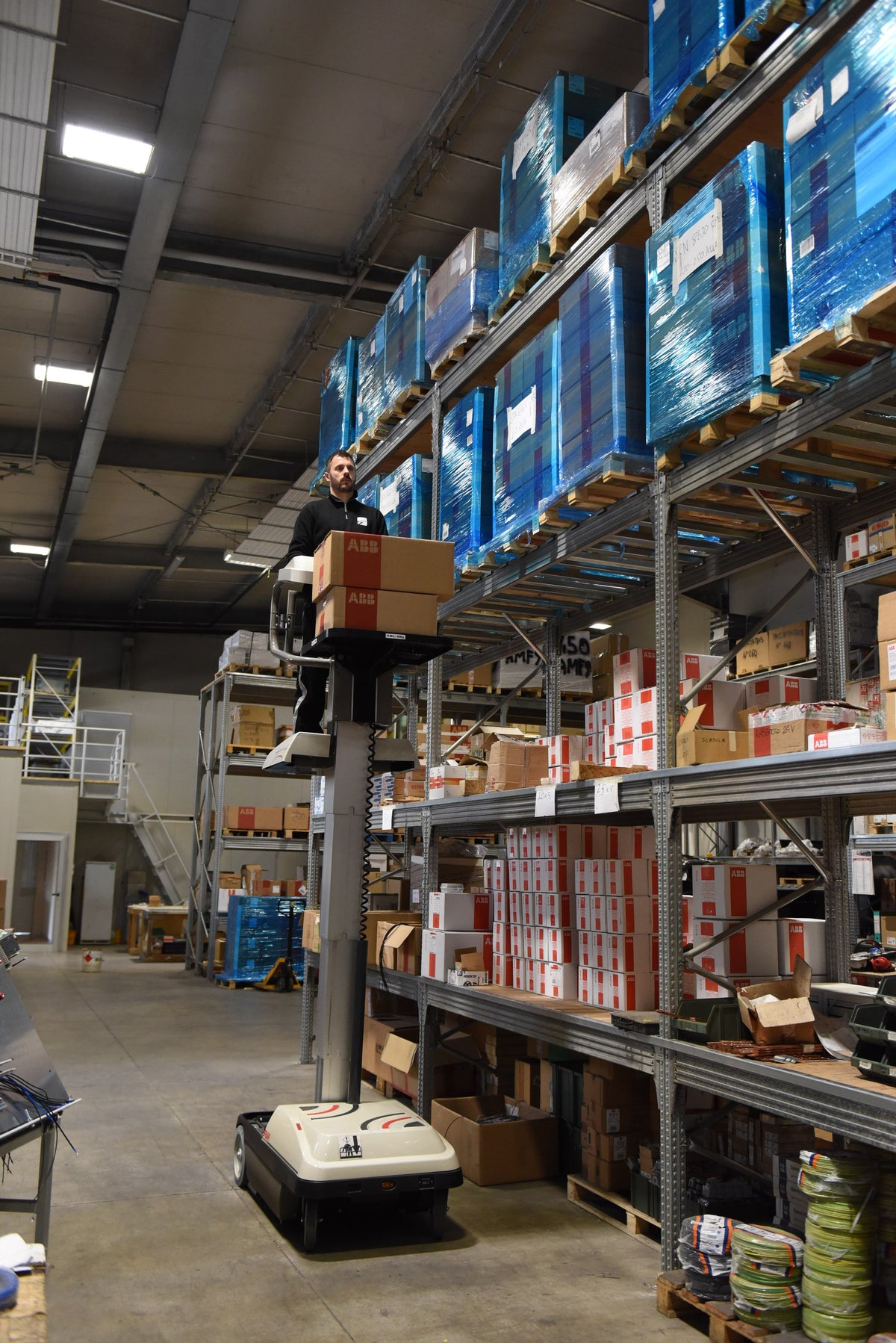

Sprint has a driving speed of 5 km / h when lowered and 1.2 km / h when raised. Dual sensors in the handle and dual foot-operated devices on the platform ensure the correct position of the operator while actively on board or while using the lifting functions. Sprint technology allows the operator to load, move and lift goods in complete autonomy and in complete safety, avoiding the risk of falls and possible injuries.
DURABLE
Simple, efficient and comfortable, Sprint is the result of continuous technical improvements. The innovative lifting system requires no maintenance, while the careful selection of high quality components and an extremely simple, yet effective design make Sprint virtually maintenance free, designed for low cost of ownership. It is also possible to completely eliminate battery maintenance by choosing the AGM battery option, also available for all other models.
Accessories
Convenient and sturdy storage box with magnetic hook. Compatible with all models of the Bravi range.
3 metal bumpers that can be installed on the rear portion and on both sides of the Sprint to extra protect the standard side plastic canopies
- Length: 647mm / 25.4 in
- Width: 564,40 mm / 22 in
- Height: 395 mm / 15.5 in
Simple 2-wheel steer trailer for use in combination with the complete hook and step option.
Used in combination with the trailer accessory. Towing capacity: up to 200 kg / 440 lbs. Driving inhibited when the basket is raised.
Audible alarm that activates every time the gate doors open at height.
Automatic gate locking system that activates as soon as the platform is lifted. Inhibits any function with the gate doors open at height.
Used in combination with the side guide rollers accessory, it locks the castor wheels in straight position.
Available in the following sizes
- L89 cm (L35 in)
- L95 cm (L37 in)
- L105 cm (L41 in)

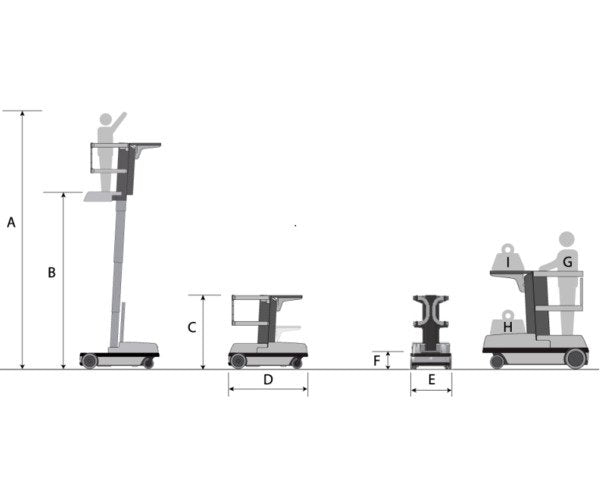

Measurements
| Platform Height | 3350 mm |
| Working Height | 5350 mm |
| Platform Length | 1500 mm |
| Platform Width | 808 mm |
| Height Stowed | 1441 mm |
| Entry Step | 356 mm |
| Platform Capacity w/ decks ext. | 130 kg |
| Load Tray Capacity | 90 kg |

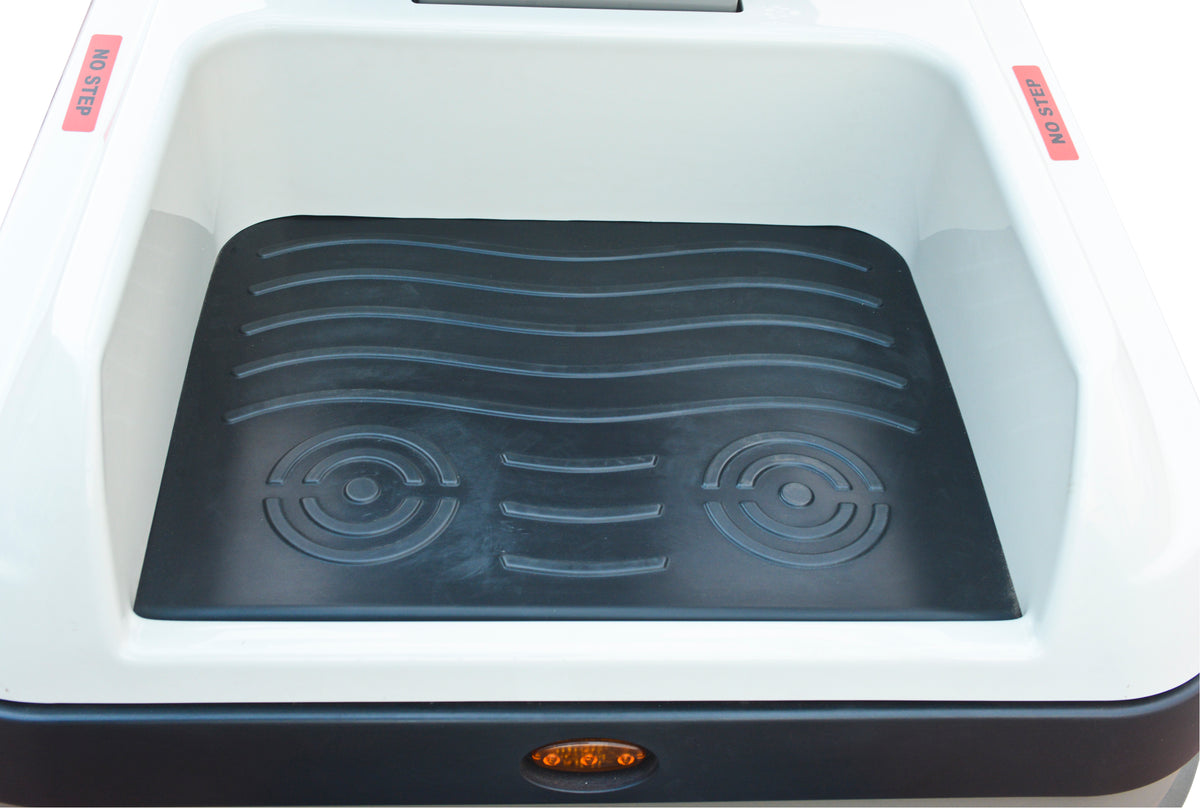

| Load Deck Capacity | 113 kg |
| Unit Weight (CE) | 660 kg |
| Rated Number of Occupants (CE) | 1 |
| Drive Speed Stowed | 5 km/h |
| Drive Speed Elevated | 1,2 km/h |
| Inside Turning Radius | ZERO |
| Outside Turning Radius | 1600 mm |
| Gradeability | max. 2% |
| Power Source | 110/220 V ca 24Vcc |
| Batteries | n° 4 – 6V; 245Ah@20h |
