Bravi Lui 460

Product No. Lui 460

Regular price $18,189.00 excl. $4,183.47 VAT $22,372.47 incl. $4,183.47 VAT
Unit price  per
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

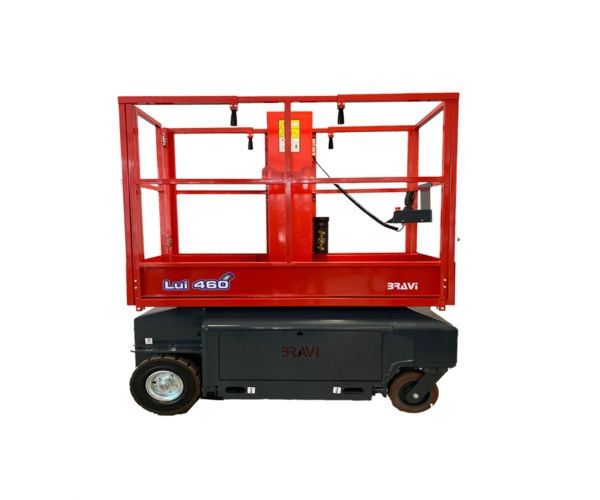

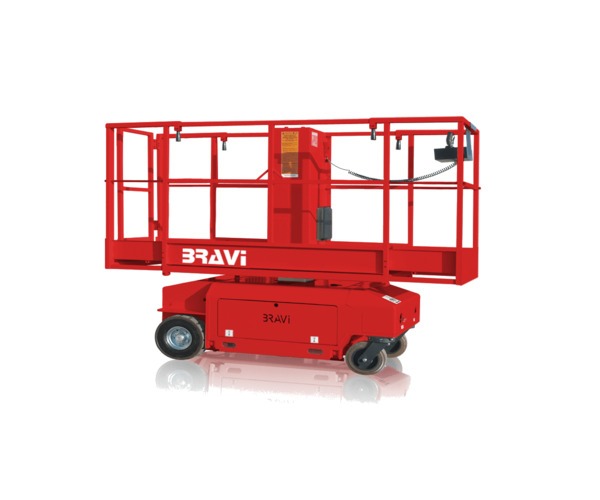

Lui 460

The LUI 460 is the aerial platform that combines the unique manoeuvrability of the Leonardo HD with the need to reach higher.

  • working height 6.6 m
  • all-steel chassis
  • control panel equipped with a large LCD display shows the vehicle status, system operation time and battery status by means of a charge indicator
  • compact size (mm 1600x760x1855) allows a superior manoeuvrability
  • can overcome slopes up to 35% (when lowered) and through the use of simple ramps it is possible to overcome obstacles such as steps and stairways

 Datasheet



EFFICIENT AND VERSATILE

The LUI 460 can be easily driven through doorways and into tight spaces that would require you to use scaffolding or ladders. The revolutionary compact size of this platform, its versatile manoeuvrability, and a reduced weight of only 1250 kg. (1124 lbs.) allow the operator to save precious time and work effortlessly. It can be loaded on small vans for fast and cost-saving transport. 35% gradeability makes the LUI 460 virtually unstoppable, and with the use of simple ramps you can overcome steps and stairways

SAFETY

LUI 460 moves quickly (3 km / h – lowered and 0.6 km / h – raised) optimizing time and improving operator comfort, allowing to lift tools and materials to the desired height, without the need for constant repositioning. Eliminates the danger of tripping and falling and the risks associated with the Manual Handling of Heavy Loads.

DURABLE

Simple, easy to use and affordable, the LUI 460 is the result of 20 years of continuous technical improvements. Apart from the control of the water level in the batteries, LUI 460 does not require any kind of routine maintenance, guaranteeing extremely low management costs.
It is also possible to completely eliminate battery maintenance by choosing the 100 Ah battery option. 12V AGM, also available for all other models.

Accessories

Toolbox
  • Length: 550 mm / 21 in
  • Width: 153 mm / 6 in
  • Height: 149 mm / 1.9 in
Magnetic storage box

Convenient and sturdy storage box with magnetic hook. Compatible with all models of the Bravi range.

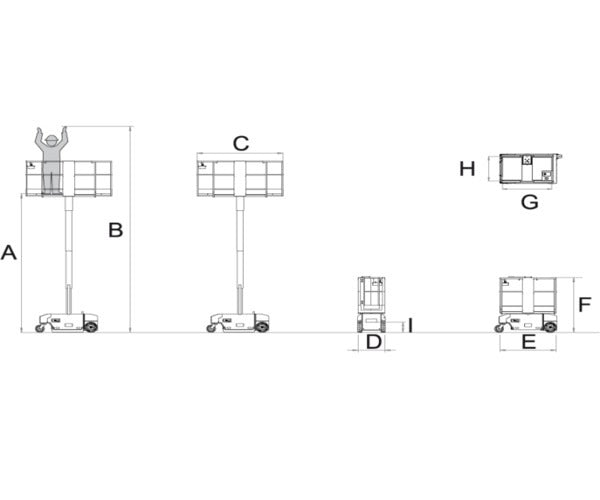

Measurements

Platform Height 4620 mm
Working Height 6620 mm
Platform Length W/ decks ext. 2376 mm
Width 680 mm
Base Length 1659 mm
Height Stowed 1855 mm
Platform Length 760 mm
Entry Step 340 mm
Ground Clearance 100 mm
Platform Capacity w/ decks ext. 280 kg
Unit Weight (CE) 1250 kg
Rated Number of Occupants (CE) 2
Drive Speed Stowed 3 km/h
Drive Speed Elevated 0,6 km/h
Inside Turning Radius ZERO
Outside Turning Radius 1700 mm
Gradeability 35%
Power Source 110/220 V ca 24Vcc
Batteries 4-6 V; 245AH@20h
