Doughty Heavy Duty Multibeam Brackets
€63.84incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Pair of universal angle brackets. Heavy duty, drilled and slotted, supplied in pairs.
- Fits channels, U beams, timbers and grids. For wall or ceiling applications.
- Spaced for 48 mm U bolts. Holes are specifically spaced for 48 mm U Bolts (T56600).
- WLL 600 kg. Same rating for both lengths, with a 5:1 safety factor, for all Doughty Heavy Duty pulleys.
Size:
225mm
Accepted payment methods
Please enter correct zip code
shipping
Multibeam Brackets (Heavy Duty) - Doughty
A pair of heavy duty universal drilled and slotted angle brackets. Used to fit channels, U beams, timbers, and grids for wall or ceiling applications. The holes are specifically spaced for the use of 48mm "U" Bolts (T56600). Suits all Doughty Heavy Duty pulleys.
To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required

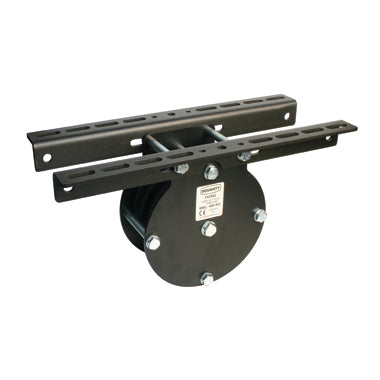

ie. T42901 + T42990 = 100mm Heavy Duty Single Pulley (for wire) fitted with Multibeam Brackets. For any inquiries, please contact us via chat.

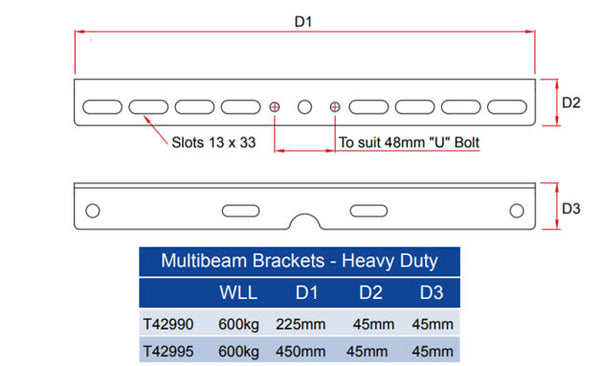

Specifications:
-
Size:
T42990: 225mm long, to suit 75-150mm (3”-6”) Girders
T42995: 450mm long, to suit 150-300mm (6”-12”) Girders -
WLL:
600kg for both sizes, safety factor 5:1 - Material: Mild steel, black powder paint
- Supplied: In pairs
