Doughty Wall Brackets for Concerts & Stages
€8.89incl. VAT
Incl. VAT. Shipping calculated at checkout.
In stock
Use:
Light Duty
Accepted payment methods
Please enter correct zip code
shipping
Wall Brackets - Doughty Engineering
Steel bracketry designed primarily to be wall mounted, allowing fixtures and tubes to be suspended from a vertical surface. The brackets are widely used for venues, concerts, and stages.

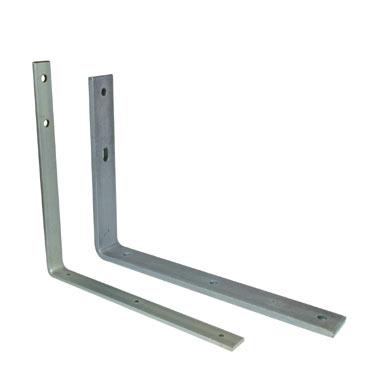

A choice of two wall brackets with mounting holes.
The light-duty bracket is drilled to accept a 48mm 'U' bolt (T56600). The heavy-duty bracket is drilled and slotted to accept a Saddle Clamp(T30800). For any inquiries, please contact us via chat.
Specifications:
-
Dimensions & SWL & Weight:

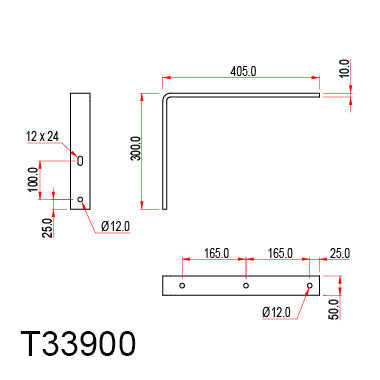

Wall Bracket (Light-Duty): 300mm x 405mm & 3 Kg & 0.85 Kg

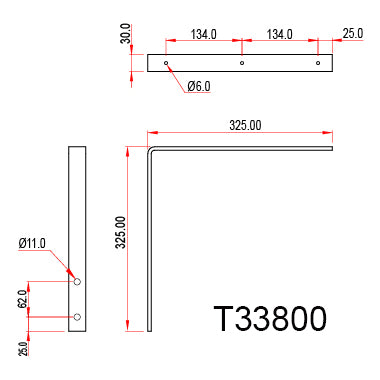

Wall Bracket (Heavy-Duty): 325mm x 325mm & 20 Kg & 2.6 Kg - Fixing Holes: See the images
