Doughty Solid Swivel Truss Adapter

T55810

Finish

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

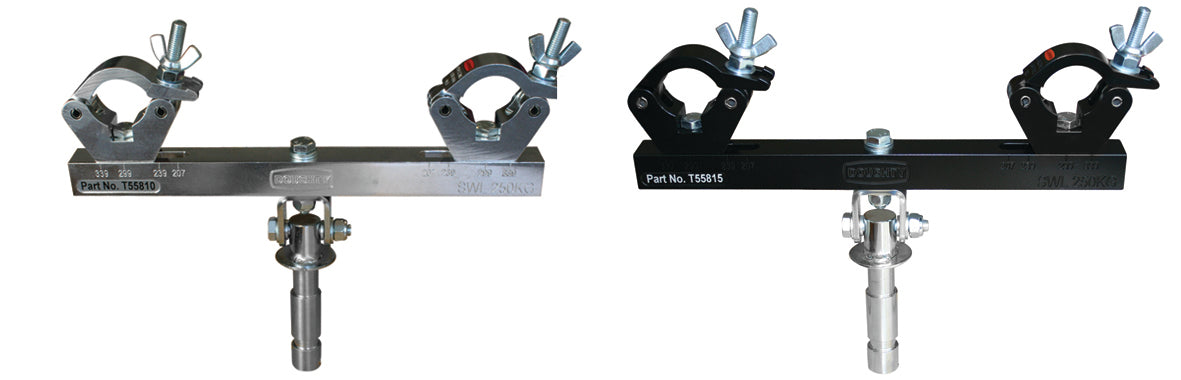

 Solid Swivel Truss Adapter - Doughty Engineering

This Swivel Truss Adapter provides a safe and secure means of lifting truss. It is manufactured from solid high tensile aluminum and slotted to allow minor adjustments.

The Swivel Solid Truss adaptor features a 28mm Spigot to fit most stand receivers. This Truss adaptor is pre-drilled to fit most major brands of truss and is supplied fitted with two Slimline Doughty Clamps to fit 48mm to 51mm diameter tubes. We can also supply Truss Adaptors drilled to suit your truss requirements. For any inquiries, please contact us via chat.

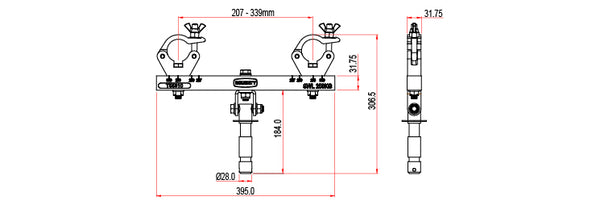

Specifications:

  • SWL: 250kg
  • Tube Diameters: 48mm to 51mm
  • Truss Sizes: 207, 239, 299 & 339mm Ctrs
  • Spigot: 28mm Euro Spec
  • Weight: 3.00 Kg
  • Material: High tensile solid 6082-T6 aluminum
  • Finish: Black or polished aluminum.
