Doughty Stage Curtain Track System(SixTrack) - Straight Section


To order this product, please contact a member of our team via chat or email (, or give us a call at +353 1 691 7930

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

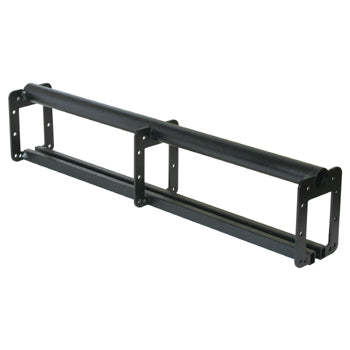

Stage Curtain Track - Straight Section

Six Track straight sections are the basis of any straight stage curtain track system. They are available in lengths from 0.25m to 3.0m as standard. Special lengths are also available on request. These straight sections can be used to span any distance.

Six Track straight sections are supplied pre-drilled to accept the Doughty range of components. It is recommended the maximum single track length to be 10 metres and a maximum overlapped track length to be 18 metres.

To easily create your stage curtain track system, Six Track kits are the ideal options. We have a walkalong system kit, line-operated system kits (with overlap or without overlap) and a switch point system kit in stock. For any inquiries, please contact us via chat.

User Manual


  • Material: Steel
  • Finish: Black Powder Paint, minimizing reflection when used on the stage
  • Cross-sectional dimensions: 115mm x 75mm
  • Length & Weight:
    T63705 - 0.25m & 0.63kg
    T63706 - 0.5m & 1.19kg
    T63707 - 0.75m &1.99kg
    T63708 - 1m & 2.69kg
    T63710 - 2m & 4.47kg
    T63715 - 3m & 6.71kg
