Doughty Stage Curtain Track Kit - Walkalong System

Doughty Stage Curtain Track, or ‘Six Track’, is a modular curtain track system suitable for a wide range of stage and theatre applications, offering a professionally tailored solution to your needs.

This is a walk-along system consisting of a basic stage curtain track which is operated by manually by pulling the actual curtain cloth. It can be straight or curved.

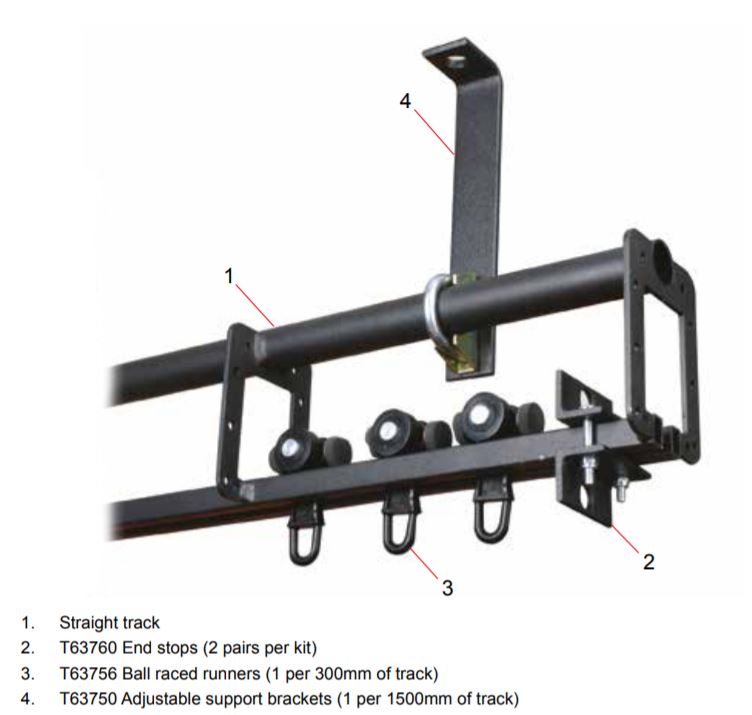

The Doughty Curtain Track Kit includes all the parts needed to install your chosen one. A typical kit comprises of tracks(various lengths are available), end stops, ball raced runners, adjustable support brackets and a nut and bolt set.

Check out the applications of this stage curtain track: Doughty Engineering supplies Welsh special needs school with state of the art drama facility

A Line-operated Track Kit is also available. For any inquiries, please contact us via chat.

User Manual - Blog on Doughty Curtain Track

Features & Benefits:

• Material: Strong steel fabrication using a tubular top hanging bar and rectangular section tube rails
• Length: 4 - 15 m
• Finish: Black powder coated
• Checklist:
  - Straight Track: 12 lengths, from 4m to 15m
  - End Stop (T63760): 2 pairs per kit
  - Ball raced runners (T63756): 6kg WLL per runner, 1 per 300mm of track
  - Adjustable support brackets (T63750): Recommended quality, 1 per 1500mm of track
  - Fixing Kit (T63795): For joining track sections

Note:

1. Other support brackets and fasteners may be required depending on individual installation methods.
2. If space is tight, Doughty Rail System, a low profile and semi-professional product, can be a great and budget solution to venues.
