• Doughty Hook Clamp (Light Duty)- Fits ⌀48-51mm Tube- MTN Shop EU
  • Doughty Hook Clamp (Light Duty)- Fits ⌀48-51mm Tube- MTN Shop EU - imagen 2

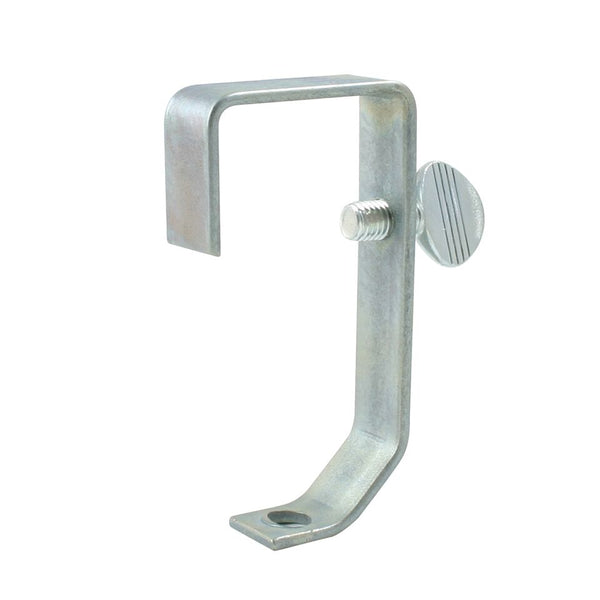

Doughty Hook Clamp 50mm Light Duty

Doughty Engineering |
SKU: T20103
€9.31incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • 2 kg WLL. Light duty clamp for lightweight luminaires, stamped with its WLL.
  • Versatile fit. Accommodates tube diameters from 48 mm to 51 mm.
  • S275 mild steel. Weighs only 0.11 kg with a 5:1 safety factor.
  • Two finishes. Zinc-plated silver (T20103) or powder-coated black (T2010301).
  • Custom stamping. Company name stamping available on orders of 500 clamps or more.
View Full Description Technical Data
Finish: Zinc

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Doughty Hook Clamp 50mm Light Duty

The Doughty Hook Clamp 50mm Light Duty is a versatile and reliable solution for suspending lightweight luminaires. Crafted from S275 mild steel, this clamp is designed to fit tubes with diameters ranging from 48mm to 51mm. Available in either a zinc-plated finish or a sleek powder-coated black, it offers both functionality and aesthetic appeal.

Key Features

  • Fits tube diameters from 48mm to 51mm
  • Ideal for lightweight luminaires
  • Durable S275 mild steel construction
  • WLL 2 kg, stamped on every clamp
  • Available in zinc-plated or powder-coated black finish
  • Custom company name stamping (max. 10 characters) available on orders of 500 or more

Technical Specifications

  • WLL: 2kg
  • Safety Factor: 5:1
  • Tube Diameter: 48-51mm
  • Material: S275 Mild Steel
  • Fixings: Grade 8.8 BZP
  • Weight: 0.11kg
  • Finish: T20103 - zinc plated (silver); T2010301 - black powder paint

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

What's the difference between the Doughty Hook Clamp 50mm Light Duty and the Medium or Heavy Duty versions?
They share the same 48-51mm tube fit, but the Light Duty version is rated to 40Kg SWL, compared to 100Kg for the Medium Duty and 150Kg for the Heavy Duty. Choose based on your fixture's actual weight rather than defaulting to the heaviest option.
Is the Doughty Hook Clamp 50mm Light Duty suitable for stage lighting fixtures?
Yes, for lightweight luminaires within its 40Kg SWL. Always weigh the actual fixture, including any barn doors, gel frames, or cabling, against that limit before rigging.
Can I get my company name stamped on the Doughty Hook Clamp 50mm Light Duty?
Yes, on orders of 500 units or more, Doughty can add a custom company name stamp of up to 10 digits.
