Doughty Studio Rail - Slotted Wall Bracket [Multi-Pack]



MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

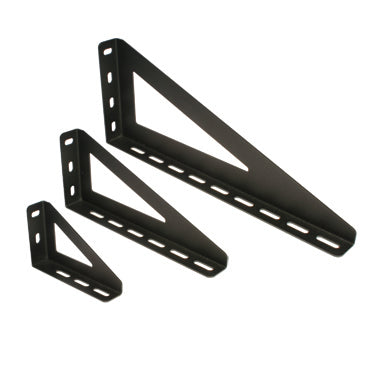

Doughty Studio Rail - Slotted Wall Bracket

Manufactured from 3mm laser cut steel these Slotted Wall Brackets have been designed to be compatible with Unistrut fixing slots.

These brackets are ideally suited for suspending curtain rail etc due to the flexibility provided with the 10mm fixing slots. The larger brackets can accommodate multiple rails.

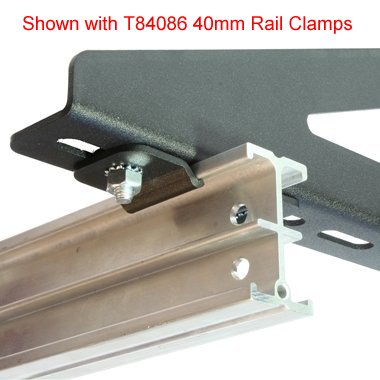

Doughty T84086 40mm Rail Clamps can be used with these brackets. Three sizes of the wall bracket are available.

For any inquiries, please contact us via chat.


  • SWL: 25 Kg, same for all sizes
  • Weight:
    Small bracket(T84105): 0.52kg
    Medium bracket(T84106): 0.9kg
    Large bracket(T84107): 1.5kg

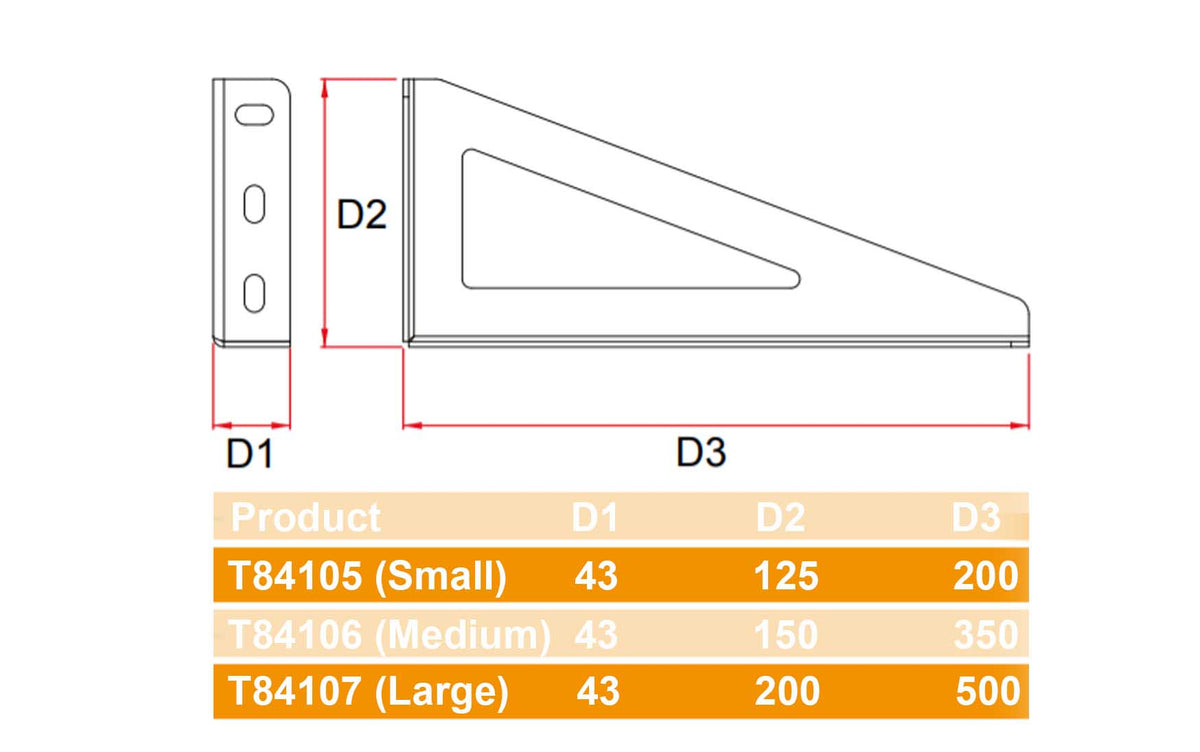

See the image for more specifications
