Doughty Studio Rail - Ceiling Bracket
€30.02incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Adjustable suspension. 25 mm (T84120, T85120) or 50 mm (T84121, T85121) of height adjustment.
- Accepts M10 or M12 studding. For ceiling suspension on threaded studding.
- Supplied with 2 Rail Clamps. Ready for attaching Studio Rail 60 or 80.
- SWL 100 kg or 200 kg. 200 kg for the Studio Rail 80 25 mm version, 100 kg for all other versions.
Ceiling Adjustment:
25mm
Studio Rail Option:
Studio Rail 60
Accepted payment methods
Please enter correct zip code
shipping

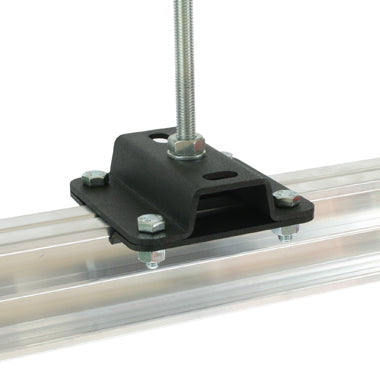

Doughty Studio Rail - Ceiling Bracket
These ceiling brackets allow up to 25mm (T84120, T85120) or 50mm (T84121, T85121) of adjustment when suspending Studio Rail 60 & 80. Supplied with 2 Rail Clamps, the ceiling bracket accepts either M10 or M12 studding.
Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.
Specifications - Studio Rail 80
-
SWL:
T85120 (25mm adjustment): 200 kg
T85121 (50mm adjustment): 100 kg - Length: 114mm
- Material: Mild steel, powder coated black
Specifications - Studio Rail 60
- SWL: 100 kg (T84120 and T84121)
- Length: 100mm
