Doughty Studio Rail - Curtain Carriage
Product No. T84225
Please Note: We require a minimum order value of €55 for all Doughty products.
- Shipping note: All Doughty products ship from the UK with customs charges prepaid. If you have any questions, please contact us.
Shipping calculator
Payment methods
Product details

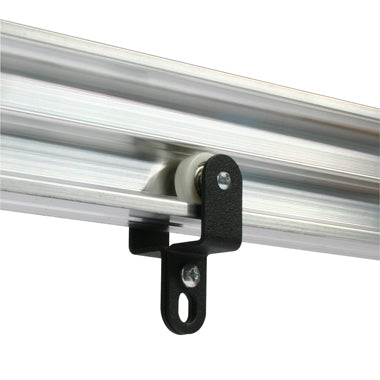

Doughty Studio Rail - Curtain Carriage
A steel-framed curtain carriage fitted with sealed ball raced wheels. This carriage can be split into two parts to be retrofitted mid-rail. The carriages are designed to support a variety of fittings, typically curtains/ drapes.
Options are available for size 60 and 80 studio rails.
Difference between size 60 and size 80: Studio Rail 80 with the cross-section dimensions of 82mm x 49mm is more heavy-duty than Studio Rail 60 with the cross-section dimensions of 61mm x 35mm. For any inquiries, please contact us via chat.
For any inquiries, please contact us via chat.

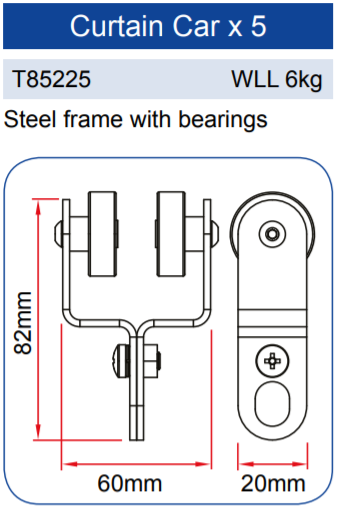

Spec Sheet (Studio Rail 60)
Specifications of Studio Rail 80
- Dimension: 60mm x 82mm
- SWL: 6kg per carriage
- Spacing: Recommended to be used at 300mm intervals.
Specifications of Studio Rail 60
- Dimension: 44mm x 68mm
- SWL: 6kg per carriage
- Spacing: Recommended to be used at 300mm intervals.
