Boscaro Self levelling crane fork with telescopic height

Product No. MBRA-10

Regular price €792.07 €974.25
excl. €182.18 VAT
incl. €182.18 VAT
CAPACITY (KG)
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

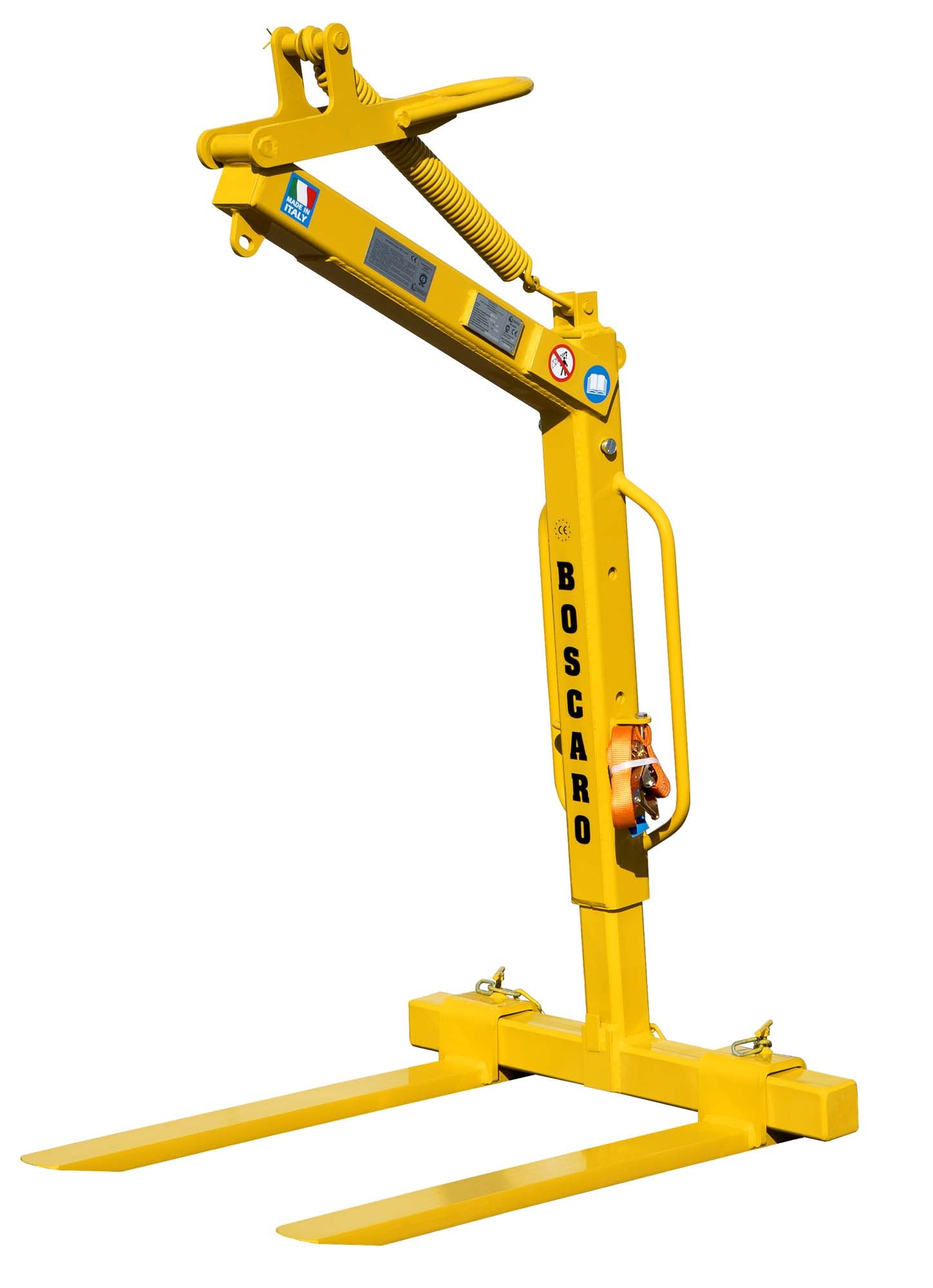

Boscaro Self levelling crane fork with telescopic height

The Boscaro Self Levelling Crane Fork with Telescopic Height is designed for efficient and safe material handling. This automatic crane fork features a spring balance system that ensures even weight distribution, providing optimal stability during lifting operations. The adjustable height mechanism allows for versatile use, making it an ideal solution for various construction and industrial applications.

All our crane forks are constructed and tested according to the UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, and UNI EN 10204 standards. Each unit comes with a metal ID plate, conformity certificate, and a user and maintenance manual. Additionally, all our products are covered by a one-year warranty in compliance with the European Directive.



Downloads:

Product Data Sheet



Key Features:

  • Self-levelling design for enhanced stability
  • Adjustable telescopic height for versatile applications
  • Spring balance system for even weight distribution
  • Compliant with international safety standards
  • Supplied with a conformity certificate and user manual

Specifications:

  • Capacity: 1000 kg – 3000 kg
  • Adjustable height: 1000 mm – 1800 mm
  • Material: Heavy-duty steel construction
  • Compliance: UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10204
  • Warranty: 1 year (European Directive)

References:

  • UNI EN 13155 – Crane lifting attachments
  • UNI EN ISO 12100 – Safety of machinery
  • ISO 8686 – Lifting equipment load calculations

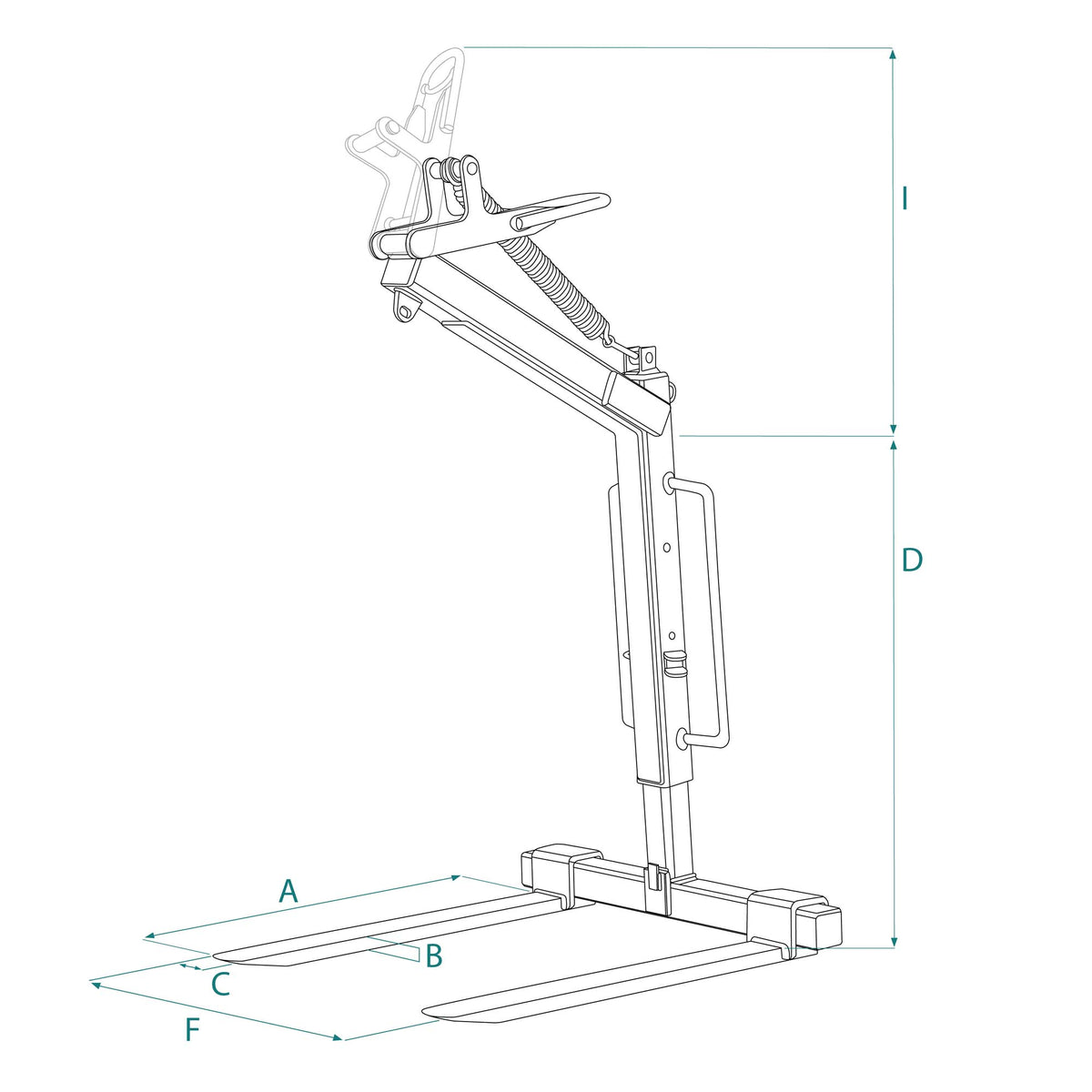

Technical Specifications:

Code

Capacity (kg)

Weight (kg)

Dimension A (mm)

Dimension B (mm)

Dimension C (mm)

Dimension D (mm)

Dimension F (mm)

Dimension I (mm)

MBRA-10

1000

115

1000

25

90

1000-1450

350-1000

600

MBRA-15

1500

155

1000

30

90

1000-1450

350-1000

600

MBRA-20

2000

170

1000

35

100

1200-1800

350-1000

600

MBRA-25

2500

230

1000

40

90

1200-1800

350-1000

600

MBRA-30

3000

240

1000

35

120

1200-1800

350-1000

600
