Boscaro Manual balance pallet fork with 4 pins - MBR-20D4

Boscaro Manual Balance Pallet Fork with 4 Pins - MBR-20D4

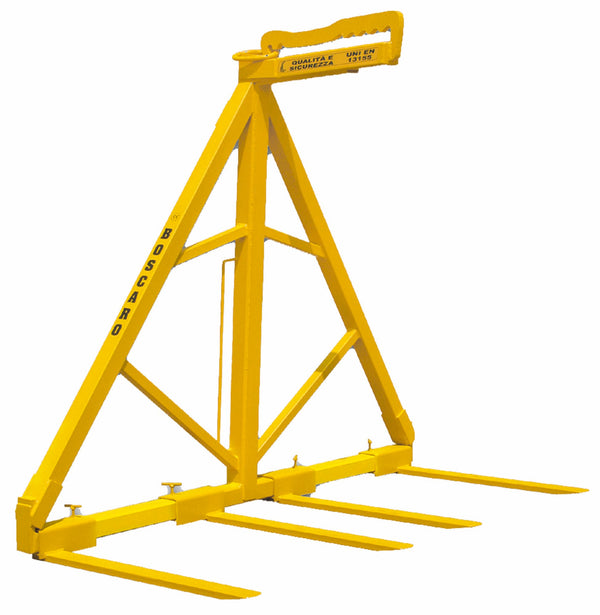

The Boscaro MBR-20D4 Manual Balancing Pallet Fork is a premium lifting solution designed for safe and efficient material handling. Featuring four adjustable tines, this crane fork enables the simultaneous lifting of two pallets side by side. The manual balancing system ensures optimal weight distribution, making it an excellent choice for applications in construction, logistics, and naval industries.

Built to meet stringent safety and performance standards, including UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, and UNI EN 10204, this pallet fork guarantees compliance and durability. It comes equipped with a metal ID plate, certificate of conformity, and a user & maintenance manual. Backed by a one-year warranty (European Directive), the MBR-20D4 is a reliable tool for heavy-duty lifting operations.

Downloads:

Technical Data Sheet

Key Features:

• Manual balancing system for precise load control
• Four adjustable tines for lifting two pallets simultaneously
• Designed for compatibility with cranes and lifting devices
• Meets multiple European safety and quality standards
• Supplied with a metal ID plate, certificate of conformity, and user manual

Specifications:

• Model: MBR-20D4
• Capacity: 2000 kg
• Weight: 215 kg

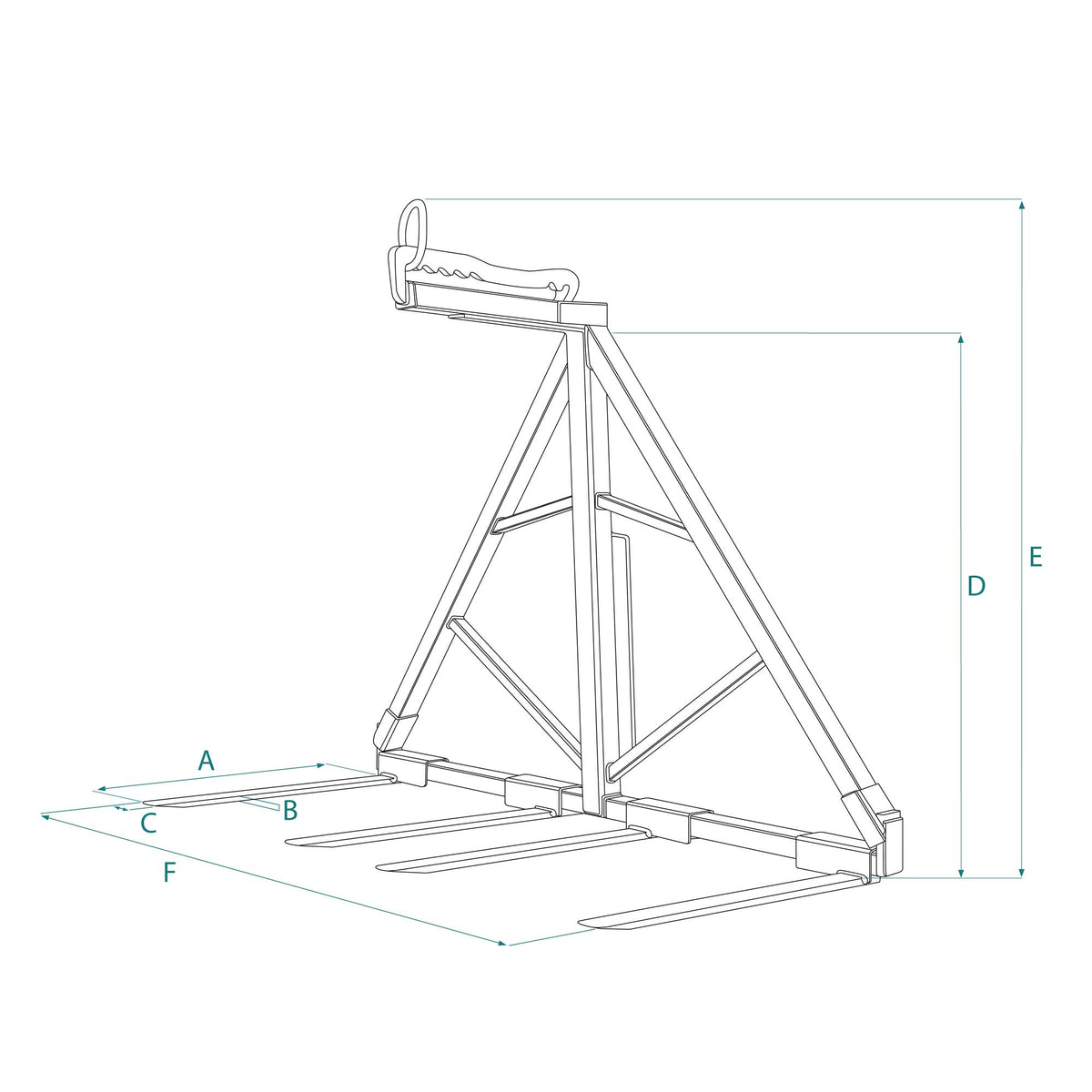

• Dimension A: 1000 mm
• Dimension B: 30 mm
• Dimension C: 90 mm
• Dimension D: 1300 mm
• Dimension E: 1650 mm
• Dimension F: 1800 mm

References:

• UNI EN 13155
• UNI EN ISO 12100
• UNI EN 13854
• ISO 8686
• UNI EN 10204

Technical Data Table:
