MCP4-LV Motor Controller (Low Voltage)
- Controls up to 4 hoists. Suitcase controller for low voltage BGV D8 and BGV D8+ hoists.
- Protected outputs. RCD 30 mA protected outputs and 1x MCB C16A, with optional motor starters.
- Link feature. GO and E-STOP buttons are linked across several connected devices.
- Broad compatibility. Works with CM Lodestar, Trabes, Prolyft and Verlinde/Stagemaker.
- Robust case. 340 x 425 x 170 mm plastic case, 9.2 kg, 2 year warranty.
Output Protection:
MCP4-LV-CEE (2xCEE16/4p Red + 2 x Yellow)
Accepted payment methods
Please enter correct zip code
shipping

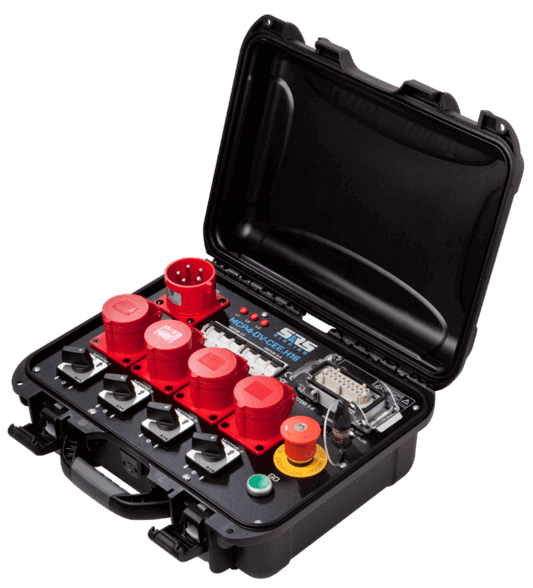

MCP4-LV SUITCASE MOTOR CONTROLLER
MCP4-LV was designed to fulfil all the requirements of clients who are looking for a cost-efficient alternative hoist controller with premium quality. It is equipped with high-quality Schneider Electric / Eaton components and is housed in a robust plastic case. The main benefit is the link feature for GO and E-STOP buttons of several linked devices.
Compatible with:
- CM Lodestar
- Trabes
- Prolyft
- Verlinde/Stagemaker
MCP4-LV-CEE Datasheet - MCP4-LV-CEE Manual
FEATURES & SPEC:
- Controls up to 4 low voltage hoists
- Protection of outputs: RCD 30 mA protected outputs, 1x MCB C16A per 4 hoists
- Optional motor starters
- Manual Phase Align (MPA) using power input connector
- Link connector
- UP/DOWN selection switches, PICKLE mode, optional GO/STOP cable remote
- Hoist types: BGV D8, BGV D8+
- Housing: Plastic case
- Power Supply: AC400V / 40-65Hz, CEE32A/5p
- Operating temperature: -20 °C to +40 °C
- Size: 340 x 425 x 170 mm
- Weight: 9.2 kg
- Warranty: 2 Years
- Standards: EN 60065, EN 60950, EN 60204-1, EN 13850 and IEC 60364
OUTPUT
- MCP4-LV-CEE: 2x CEE16/4p red + 2x CEE16/4p yellow
