Doughty Heavy Duty Wall Mounting Plates for Stage Pulleys [Multi-Pack]

Doughty Engineering

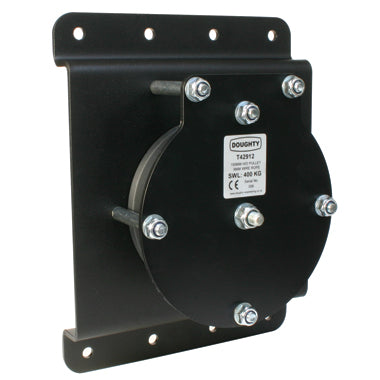

Heavy Duty Wall Mounting Plates for Pulleys

A Heavy Duty mounting plate for wall mounting Heavy Duty pulleys. Wall plates are available in three sizes. They convert an existing pulley into a wall-mounted pulley.

To order pulleys please state part numbers of:

1. Basic Heavy Duty Pulley required

2. Fixing System required

ie. T42901 + T42997 = 100mm Heavy Duty Single Pulley (for wire) fitted with Wall Mounting plate. For any inquiries, please contact us via chat.


  • SWL: 200kg, 400kg and 600kg
  • Fixing Holes: ⌀11mm

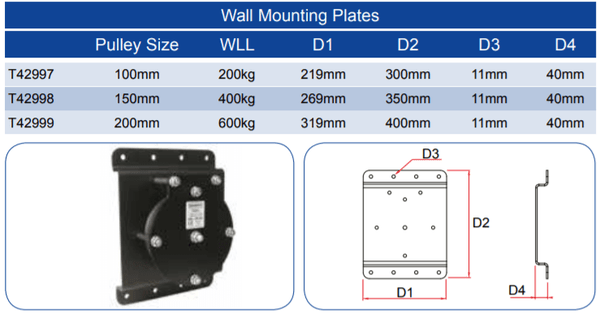

  • Dimensions: Please see the thumbnail
