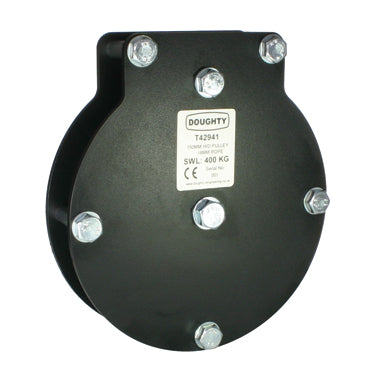

Doughty Heavy Duty Single Sheave Pulley
Incl. VAT. Shipping calculated at checkout.
- Smooth operation. Nylon sheaves with ball race bearings for friction-free running.
- Strong construction. Side plates made from 5 mm thick steel.
- WLL up to 600 kg. 100 mm, 150 mm and 200 mm sheaves rated 200, 400 and 600 kg.
- Fibre or wire rope. Ready to accept the Doughty range of heavy-duty pulley brackets.
Accepted payment methods
shipping
Heavy-Duty Stage Pulley with a Range of Brackets to Suit
The Doughty Heavy Duty Stage Pulleys are constructed from nylon sheaves together with ball race bearings for smooth friction-free operation. Side plates are constructed from 5mm thick steel giving an extremely strong construction.
Heavy-Duty Stage Pulleys are available with 100mm, 150mm and 200mm sheaves with WLLs of 200, 400 and 600kgs respectively.
Pulleys are available for both fibre and wire ropes together with a range of bracketry to suit. A basic single sheave pulley is ready to accept any of our range of fixings. Heavy-Duty Double/Triple/Quad/Quin Sheave Pulleys are also available.
To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required
ie. T42931 + T42984 = 100mm Single Pulley (for Rope) fitted with Awning Brackets. For any inquiries, please contact us via chat.

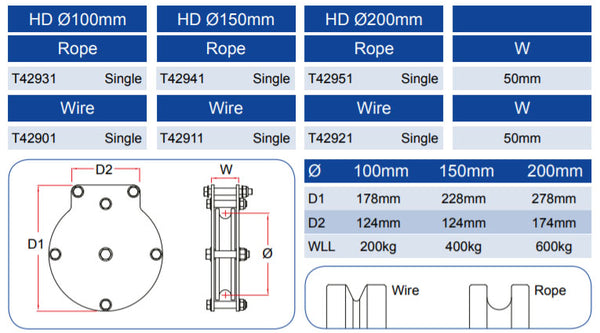

Part Numbers (Single Sheave):
- 100mm sheave, WLL 200kg: T42901 (wire rope), T42931 (fibre rope)
- 150mm sheave, WLL 400kg: T42911 (wire rope), T42941 (fibre rope)
- 200mm sheave, WLL 600kg: T42921 (wire rope), T42951 (fibre rope)
Pulleys are supplied without brackets; brackets are ordered separately and must be factory fitted.
Specifications:
- Width: 50mm
- WLL: 200kg (100mm sheave), 400kg (150mm sheave), 600kg (200mm sheave)
- The recommended sizes for Hand Ropes & Wires are:
100mm Diameter Sheave - 12mm Rope – 4mm Wire
150mm Diameter Sheave - 18mm Rope – 6mm Wire
200mm Diameter Sheave - 18mm Rope – 6mm Wire
Brackets for Heavy Duty Stage Pulleys:
- Multibeam Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Universal Plate Assembly: To be mounted to tubes
- Wall Mounting Plates: Convert an existing pulley into a wall-mounted pulley
