Defender 3 Cable Protector 45-Deg Curve

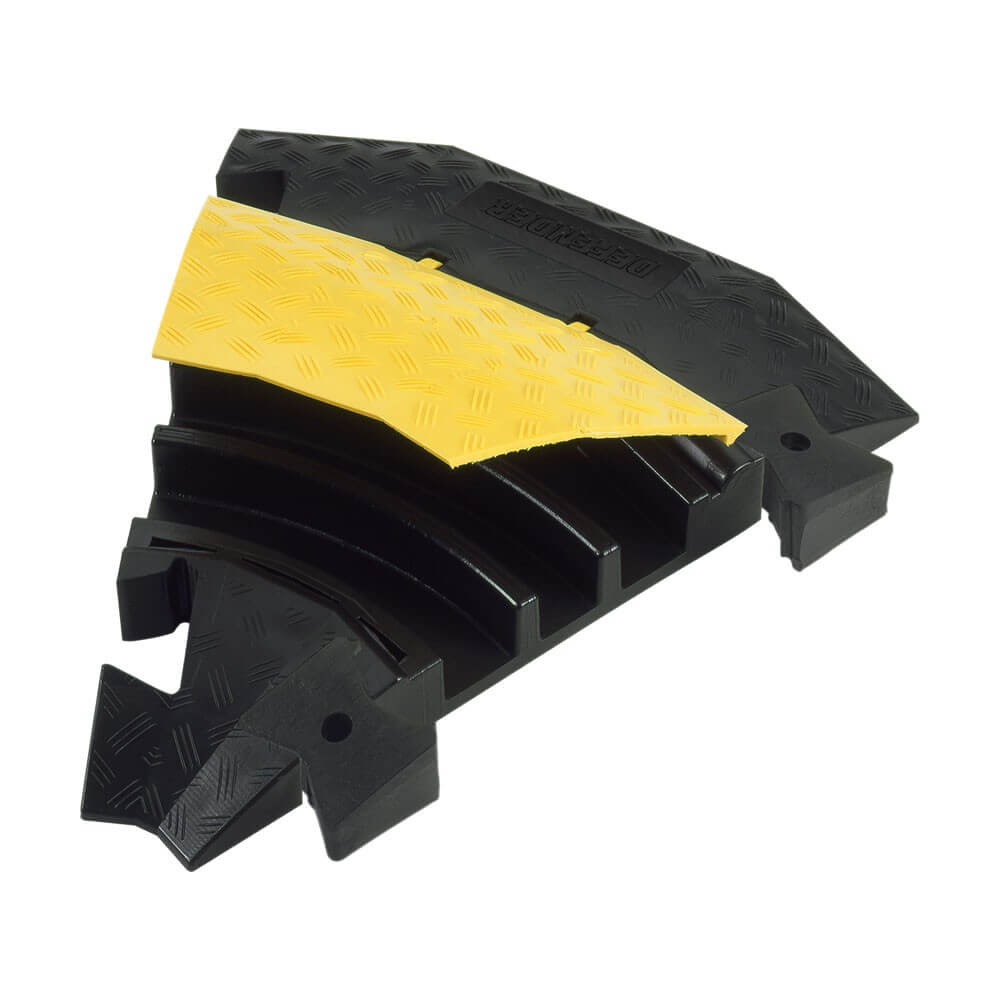

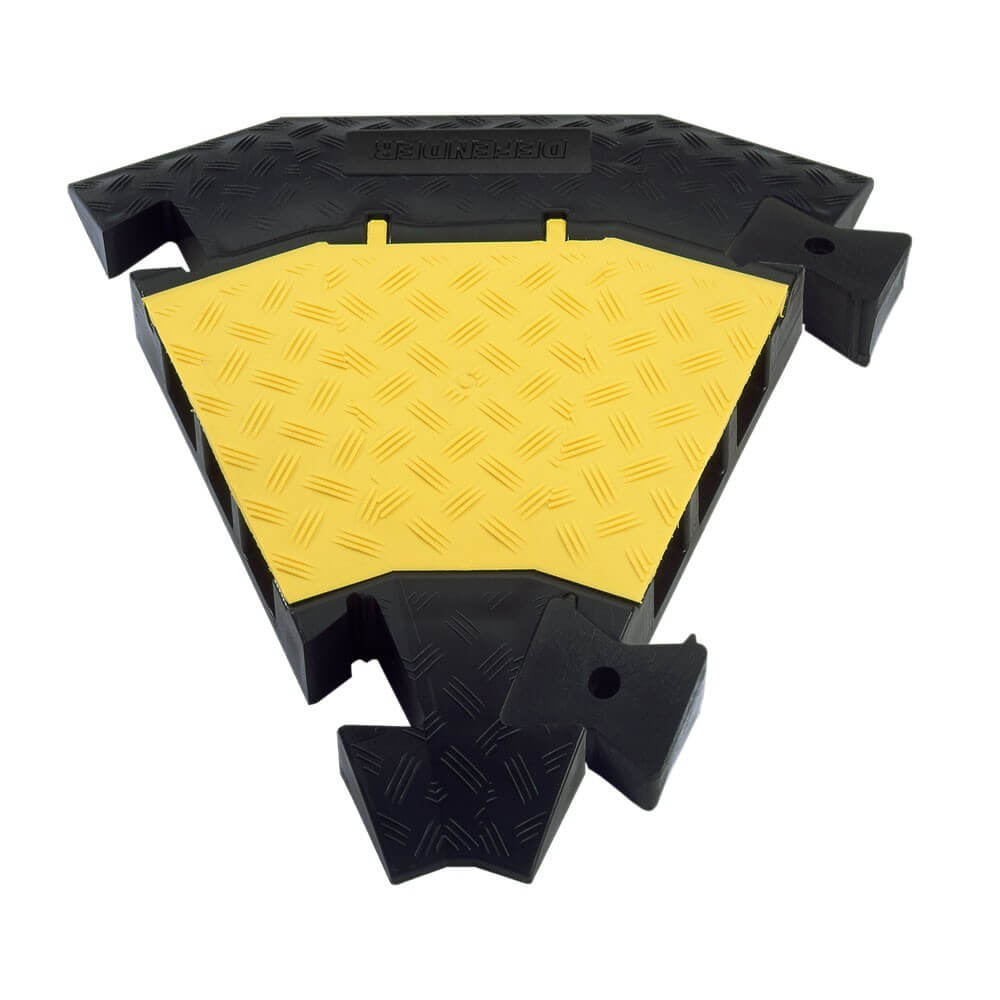

DEFENDER® 3 45° Curve with a detachable lid and two dovetail connectors

Curve: 45 degrees┋Weight: 5.2 kg┋3 Channels┋Max. Load: 5 Ton

Featuring a 73 mm profile, detachable dovetail connectors, this 45-degree accessory with 3 channels is used to connect with the Defender 3 Cable Protector 85002, adapting your configuration to each new location.

Made in Germany, the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. It has 3 medium-large channels and built-in handles for easy portability. In the Defender 3 family, you will find the cable protector (main product), the 45-degree curve (this product), the end ramp, and the connector plug.

User Manual - Certificate

Features & Benefits:

• Heavy-duty, non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
• Provides versatile cable routing and safe crossing for vehicles and pedestrians
• Modular System:  Each cable protector has connectors and corresponding sockets that enable you to connect cable protectors in the same series continuously with each other with maximum stability.
• High-Tech Raw Material: All DEFENDER cable crossovers are made of extremely sturdy, unbreakable TPU (thermoplastic polyurethane). They feature a B2 fire-resistance rating (also available with a B1 rating - difficult to ignite - in compliance with DIN4102) and are resistant to oil, acids, and petrol.
• Perfect, all-round choice: Ideal for a wide range of applications like heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.
• Easy Lock System: This very easy and efficient opening and locking system allows you to open and close the lid without tooling or special efforts. This exclusive feature also guarantees that the lid remains closed at all times, even when cars or trucks cross over it.
• Equipped with patented self-cleaning hinges: The dirt gathering around the hinges is automatically pushed out when opening and closing the lid of the DEFENDER cable protector
• DEFENDER® products contain no environmentally harmful PVC.

Specifications:

• Product type: Cable Protector - 45 °Curve
• 3 channels: 1 channel 45 x 50 mm, 2 channels 52 x 49 mm
• Load-bearing capacity: approx. 5 t on a surface area of 20 x 20 cm
• Material: Polyurethane
• Colour: yellow / black
• Weight: 5.226 kg
