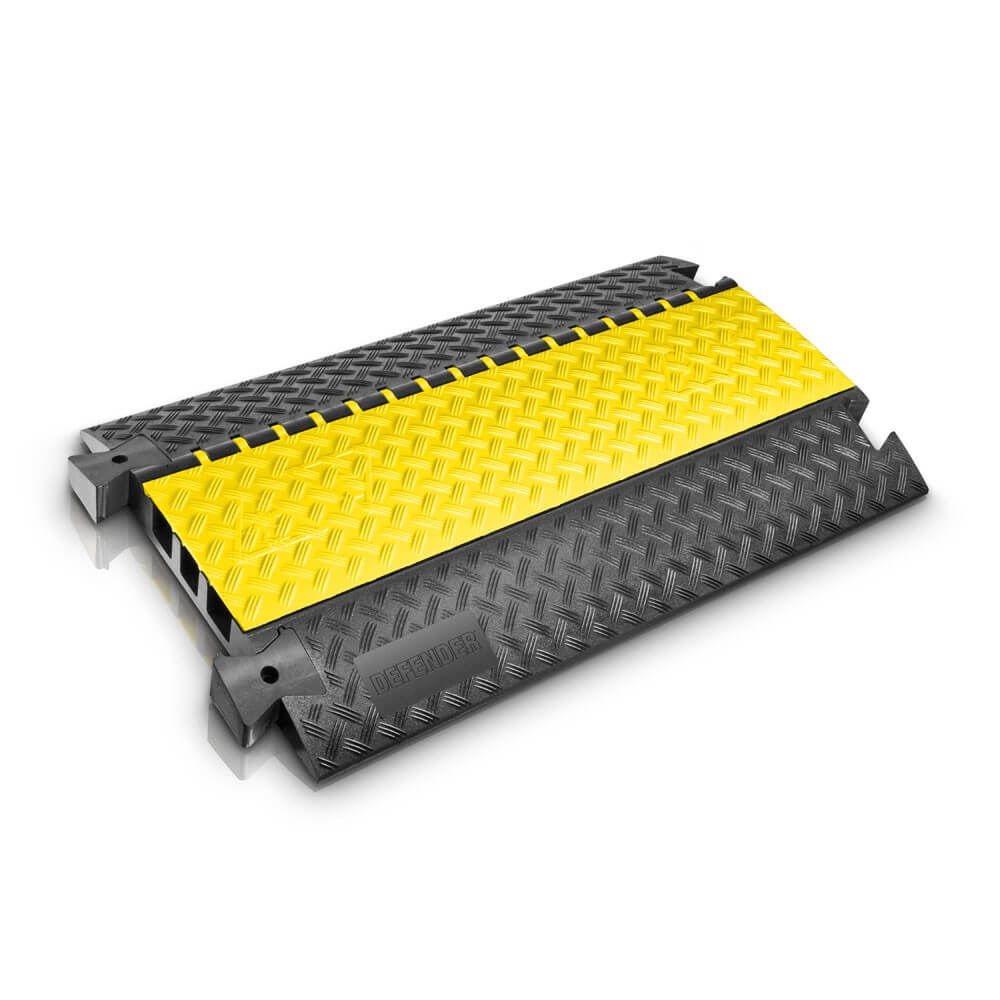

Adam Hall Defender 3 Cable Protector Ramp - 3 Channels

85002


MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.


Heavy-duty cable protector ramp with 3 channels, featuring a 73 mm profile, detachable dovetail connectors

Dimensions: 100x60x7.3 cm┋Weight: 22 kg┋3 Channels┋Max. Load: 5T (on a surface area of 20 x 20 cm)

Originally developed to guard electrical cables and prevent tripping hazards at rock concerts, Defender® cable protectors have become the standard in a wide variety of industrial, commercial, and public applications.

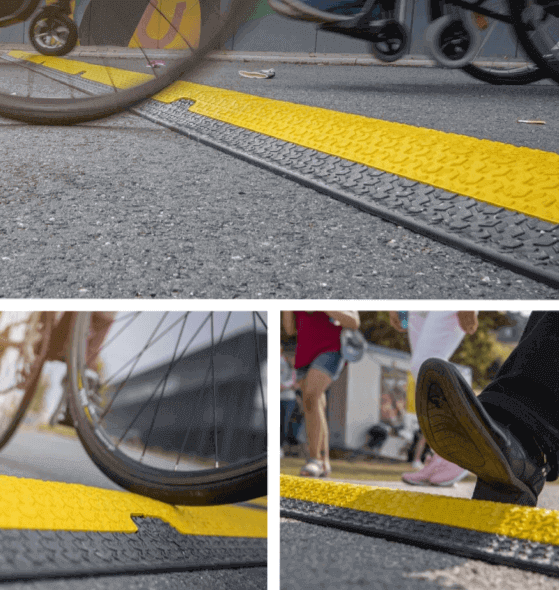

Made in Germany, the Defender® 3 cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. It has 3 medium-large channels and built-in handles for easy portability. In the Defender 3 family, besides this main component - Cable Protector, you will find the 45-degree curve, the end ramp, and the connector plug as accessories.

Technical Drawing - TUV ReportUser Manual


Features:

  • Heavy-duty, non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
  • Generally, any street-legal vehicle can drive over this crossover. Also still permitted by road traffic regulations in terms of height. High stability even in the connected line.

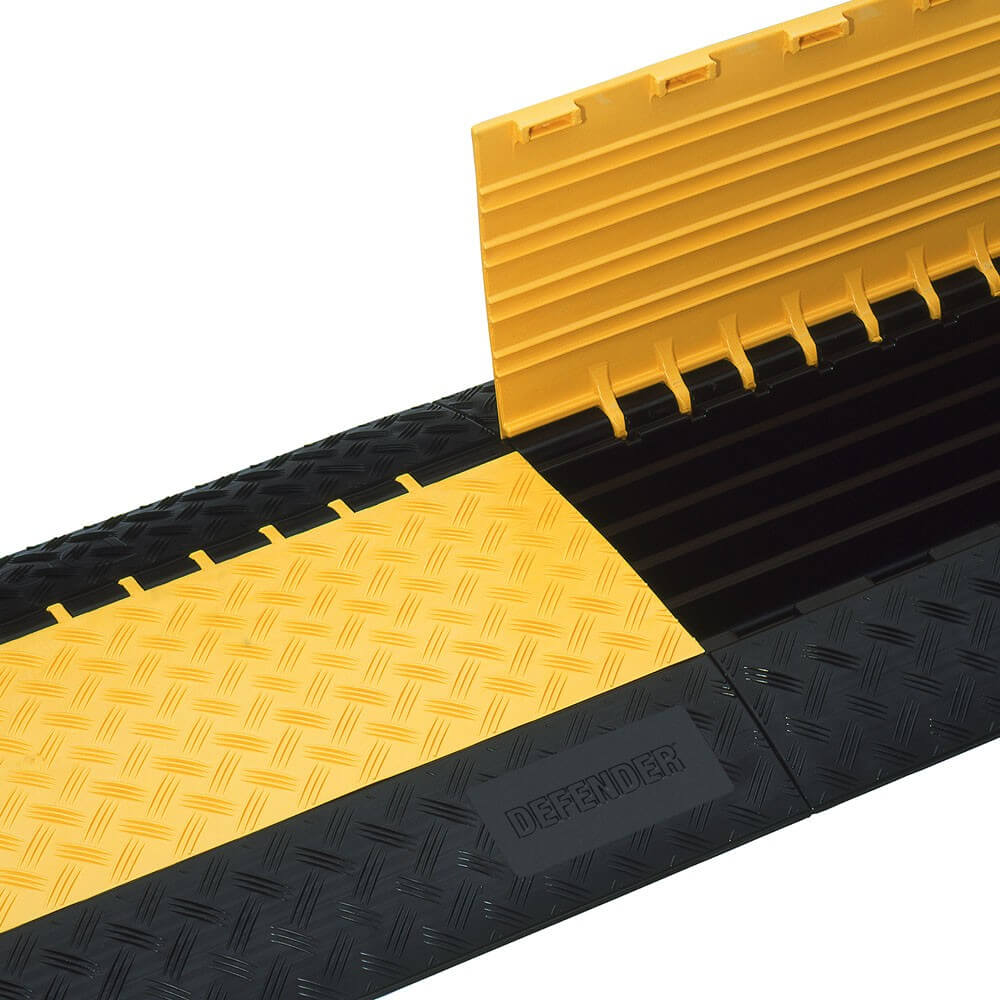

  • Modular System:  Each cable protector has connectors and corresponding sockets that enable you to connect cable protectors in the same series continuously with each other with maximum stability.
  • High-Tech Raw Material: All DEFENDER cable crossovers are made of extremely sturdy, unbreakable TPU (thermoplastic polyurethane). They feature a B2 fire-resistance rating (also available with a B1 rating - difficult to ignite - in compliance with DIN4102) and are resistant to oil, acids, and petrol.
  • Perfect, all-round choice: Ideal for a wide range of applications like heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.

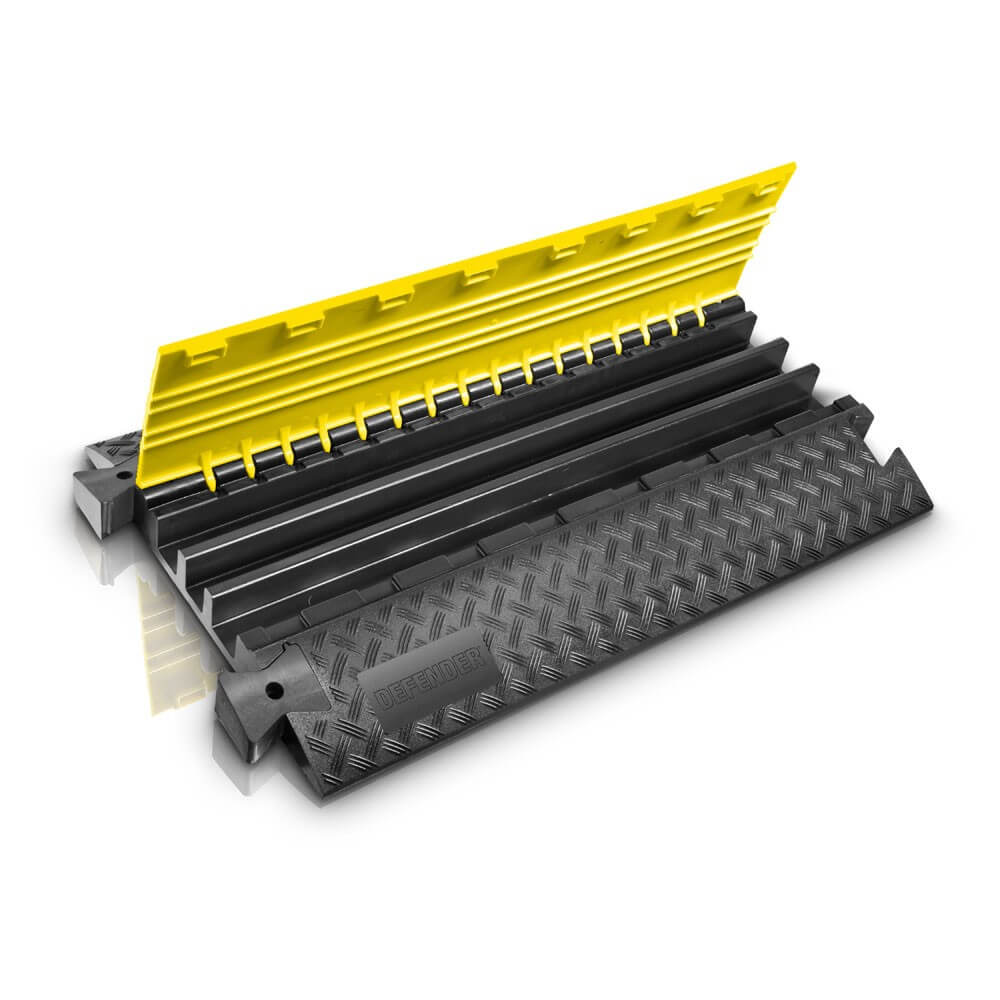

  • Easy Lock System: This very easy and efficient opening and locking system allows you to open and close the lid without tooling or special efforts. This exclusive feature also guarantees that the lid remains closed at all times, even when cars or trucks cross over it.
  • Equipped with patented self-cleaning hinges: The dirt gathering around the hinges is automatically pushed out when opening and closing the lid of the DEFENDER cable protector
  • DEFENDER® products contain no environmentally harmful PVC.

Specifications:

  • Width: 600 mm
  • Height: 73 mm
  • Length: 1000 mm
  • No. of Channels: 3
  • Width Channel 1: 52 mm
  • Height Channel 1: 49 mm
  • Width Channel 2: 45 mm
  • Height Channel 2: 50 mm
  • Width Channel 3: 56 mm
  • Height Channel 3: 49 mm
  • Material: Polyurethane
  • Max. Load: Approx. 5 t on a surface area of 20 x 20 cm
  • Hardness Range: 88 Shore ± 4 Shore
  • Fire protection Class: B2
  • Temperature Range: -40 to +70 °C
  • Weight: 22,82 kg
