Neofeu Load Fall Arrester - 100/200/250/320/400/500KG (10-30m L)
Incl. VAT. Shipping calculated at checkout.
- Automatic load fall arrest. Secondary protection if the primary restraint or transport system fails.
- Short arrest distance. Brake locks the load within 30 cm to 1 m.
- Quick locking brake with two pawls. Integrated shock absorber in an epoxy coated steel casing.
- Six capacities. Max. load 100, 200, 250, 320, 400 or 500 kg with 4, 5.5 or 6.4 mm galvanised steel cable.
- Ideal for entertainment. Commonly used for stage productions and setup; up to 50 cycles per day.
Accepted payment methods
shipping

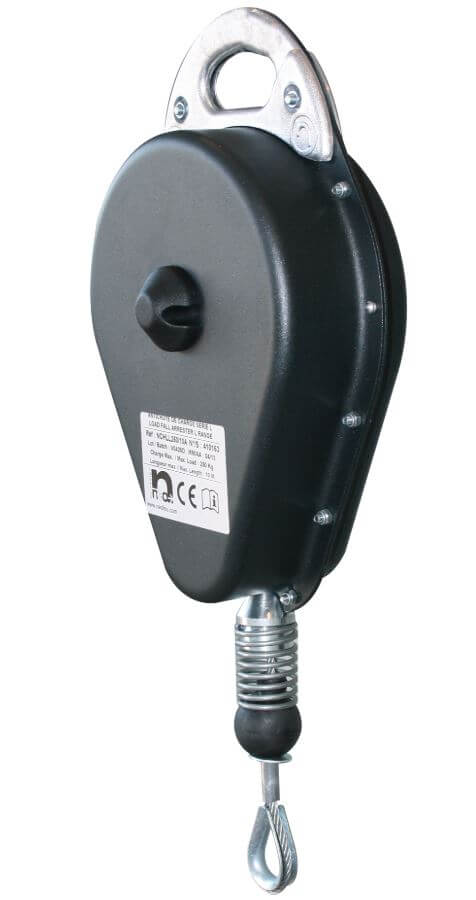

Neofeu LIGHT Load Fall Arrester NCHLL
Neofeu load fall arresters are an efficient solution in many fields of application to automatically arrest the fall of a load. They offer additional protection in case of failure of the primary system intended to restrain or transport the loads. In such a case, the brake activates and locks the load over a short distance of between 30 cm and 1 m.
The Neofeu load fall arrester is useful in a wide range of industries and is commonly used in the entertainment industry for stage productions and setup.
International Shipment! For any inquiries, please contact us via Chat.
TECHNICAL SPECS:
• Max. load: 100 kg / 200 kg / 250 kg / 320 kg / 400 kg / 500 kg

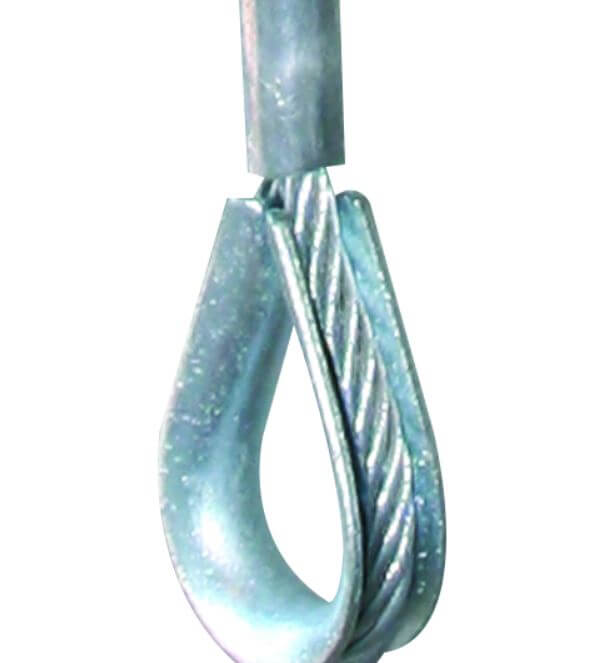

• Galvanised steel cable: Ø 4 mm (100 to 320 kg), Ø 5.5 mm (400 kg), Ø 6.4 mm (500 kg)
• Cable length: 10 m, 15 m, 20 m, 25 m or 30 m depending on the reference
• Steel casing with cataphoresis treatment and black epoxy coating
• Quick locking brake with two pawls

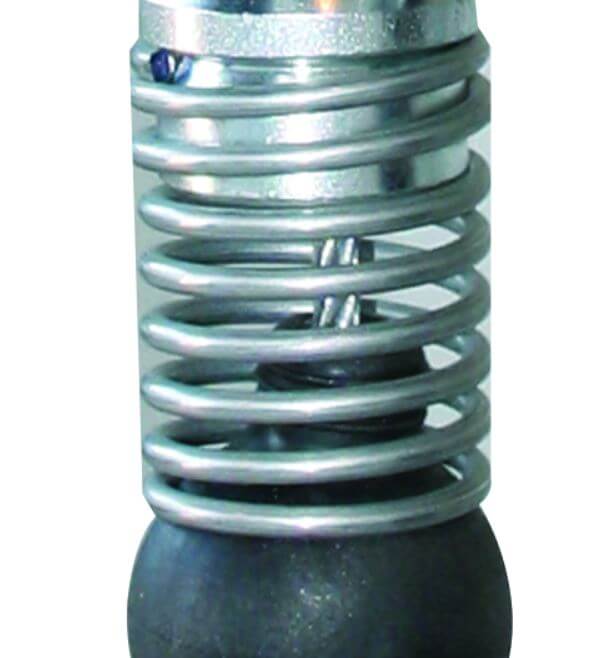

• Integrated shock absorber
• Reduced arrest distance (30 cm to 1 m)
• 50 cycles maximum per day
• Machinery Directive 2006/42/EC
| Reference | Max. Load | Cable Length | Cable Ø | Weight |
|---|---|---|---|---|
| NCHLL100/10 | 100 kg | 10 m | 4 mm | 6 kg |
| NCHLL100/20 | 100 kg | 20 m | 4 mm | 10 kg |
| NCHLL100/30 | 100 kg | 30 m | 4 mm | 15 kg |
| NCHLL200/10 | 200 kg | 10 m | 4 mm | 6 kg |
| NCHLL200/15 | 200 kg | 15 m | 4 mm | 10 kg |
| NCHLL200/20 | 200 kg | 20 m | 4 mm | 12 kg |
| NCHLL200/30 | 200 kg | 30 m | 4 mm | 15 kg |
| NCHLL250/10A | 250 kg | 10 m | 4 mm | 6 kg |
| NCHLL250/15 | 250 kg | 15 m | 4 mm | 8 kg |
| NCHLL250/20 | 250 kg | 20 m | 4 mm | 10 kg |
| NCHLL250/30 | 250 kg | 30 m | 4 mm | 15 kg |
| NCHLL320/10A | 320 kg | 10 m | 4 mm | 6 kg |
| NCHLL320/15 | 320 kg | 15 m | 4 mm | 13 kg |
| NCHLL320/25 | 320 kg | 25 m | 4 mm | 15 kg |
| NCHLL400/15 | 400 kg | 15 m | 5.5 mm | 15 kg |
| NCHLL400/25 | 400 kg | 25 m | 5.5 mm | 17 kg |
| NCHLL500/10 | 500 kg | 10 m | 6.4 mm | 16 kg |
| NCHLL500/15 | 500 kg | 15 m | 6.4 mm | 16 kg |
| NCHLL500/20 | 500 kg | 20 m | 6.4 mm | 17 kg |
To learn more, please head over to our Fall Protection Equipment collection
