Key Clamp: Doughty Base Flange
€11.62incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Termination flange. For structures where only a positional fixing is required.
- Not for guard railing. Use T13200 as a base plate for guard railing.
- Galvanised malleable iron. Malleable iron castings with a galvanized finish to BS729 for high corrosion resistance.
- Four mounting holes. 4 x ⌀8 mm holes for fixing.
Accepted payment methods
Please enter correct zip code
shipping
Key Clamp: Doughty Base Flange

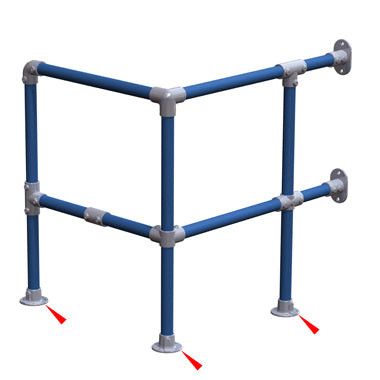

This Key Clamp is a termination flange to be used on structures where a positional fixing only is required. This fitting is NOT recommended for use as a base plate for Guard railing, see T13200. For any inquiries, please contact us via chat.
Features:
- High corrosion resistance
- 100% salvageable & reusable
- Malleable iron castings with a galvanized finish to BS729

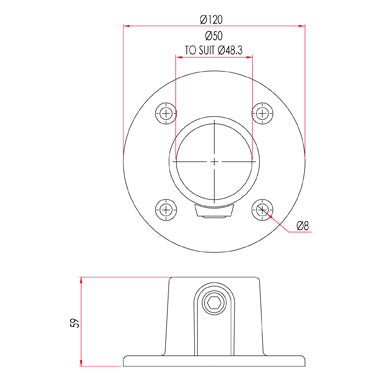

Specifications:
- Fixing Holes: 4 x ⌀8mm mounting holes
- Tube Diameter: ⌀48mm
- Weight: 0.85 Kg
