Yale TZL Load Indicator with Digital Display
Incl. VAT. Shipping calculated at checkout.
- Load indicator and force measurement. Use as a conventional crane weigher or to measure forces.
- Digital LCD display. Shows gross or net load with tare function and peak value memory.
- Overload and battery warnings. Warns at 110% of rated capacity and when batteries are low.
- IP 54 protection. Operates from -10 °C to +50 °C, approx. 200 hours on 4 x 1.5 V AA batteries.
- Multiple units. Displays kg, tonnes, lbs and kN with 0.2% accuracy.
Accepted payment methods
shipping
Yale TZL Load Indicator with Digital Display
The Yale TZL load indicator is a compact measuring device for weighing loads. The TZL model is the standard digital display unit and the TZR model comes complete with a radio remote control.
On account of their flexibility, these load indicators are suitable for a multitude of applications. Whether used as a conventional crane weigher or to measure forces, it is the economical choice for various applications. The load indicators are simple and straightforward to use.
The load indicators have a liquid crystal display (LCD), which can tare as well as show either the gross or the net load. It also indicates overload at 110% of the rated capacity and the status of the battery.

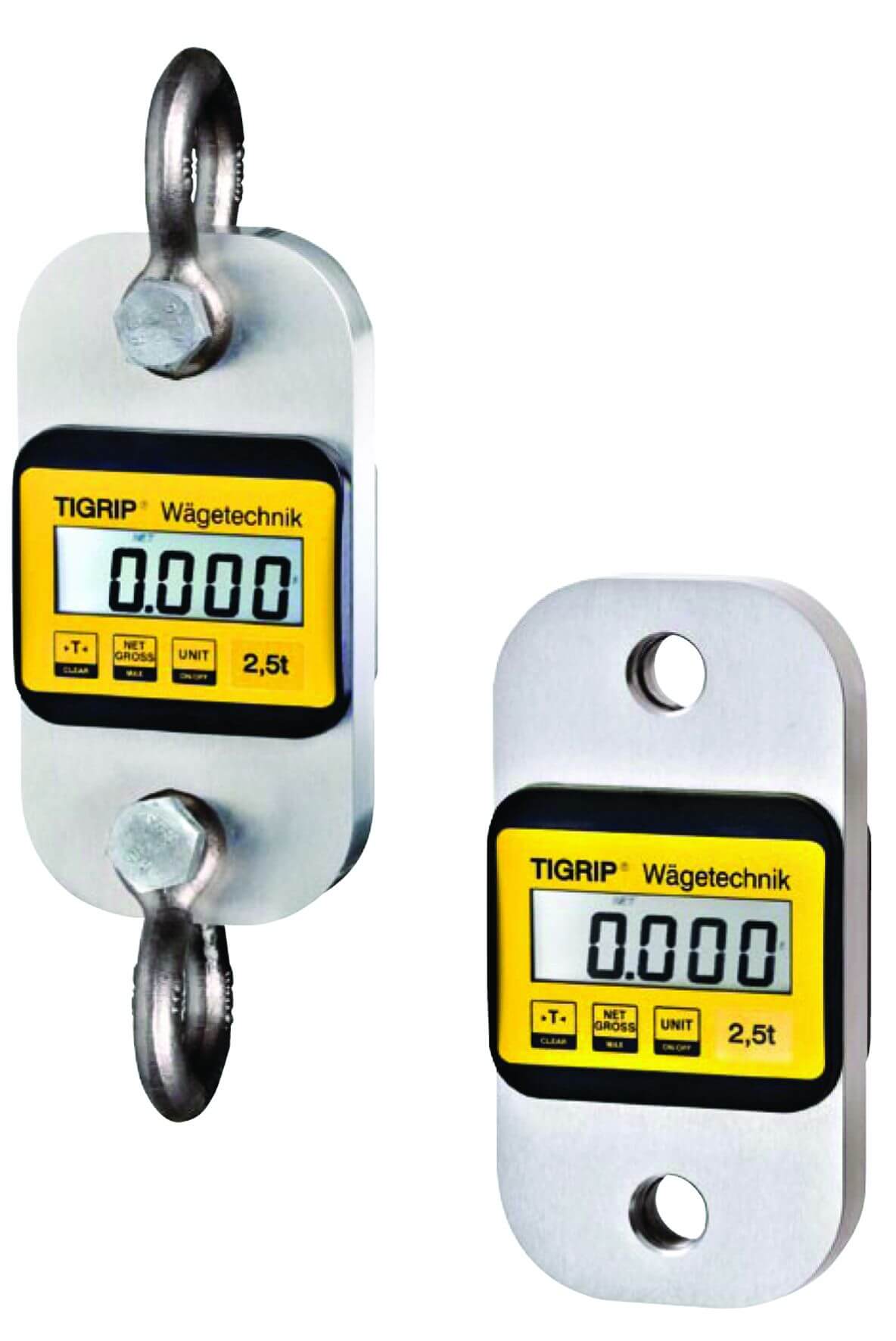

*Shackles shown in the photograph are not supplied as standard*
Technical Data:
- Operation time approximately 200 hours with 4 x 1.5 V AA batteries.
- Temperature range in operation -10 °C to +50 °C.
- Temperature range in storage -20 °C to +70 °C.
- IP 54 protection.
- 20.5 mm high LCD display (4.5 digits).
- Tare range is 100% of rated capacity.
- Overload warning at 110% of the rated capacity.
- Accuracy 0.2%.
- Available measuring ranges: 1.0 t to 20.0 t (see table).
| Model | Measuring Range | Resolution | Weight |
|---|---|---|---|
| TZL/TZR 1.0 | 0 - 1.0 t | 1 kg | 1.1 kg |
| TZL/TZR 2.5 | 0 - 2.5 t | 1 kg | 1.7 kg |
| TZL/TZR 5.0 | 0 - 5.0 t | 1 kg | 2.1 kg |
| TZL/TZR 10.0 | 0 - 10.0 t | 10 kg | 3.9 kg |
| TZL/TZR 20.0 | 0 - 20.0 t | 10 kg | 6.8 kg |
User Manual - Dimensions & Technical Spec
Model: TZL (WITHOUT remote control)
FEATURES & BENEFITS
- High accuracy.
- Lightweight design.
- Easy-to-read display.
- Easy to use.
- Robust design.
- Retains the peak value to memory.
- The battery capacity provides for around 200 operating hours.
- Automatic setting to zero when load indicator is switched on.
- Use of rechargeable batteries possible (external battery charger).
- Display of maximum weight (gross/net).
- Display of measuring units at the load indicator.
- Measuring units: kg, tonnes, lbs, and kN.
- Automatic stand-by for a prolonged battery lifetime.
- Simple change of batteries.
- Warning, if batteries are low.
- Overload warning.
INCLUDED IN DELIVERY OF TZL:
- Load indicator.
- 4 x 1.5 V AA batteries.
- Carrying case.
- Test certificate.
