Pfaff Wire Rope Winch SW-W SGO 250-5000kg
€751.62incl. VAT
Incl. VAT. Shipping calculated at checkout.

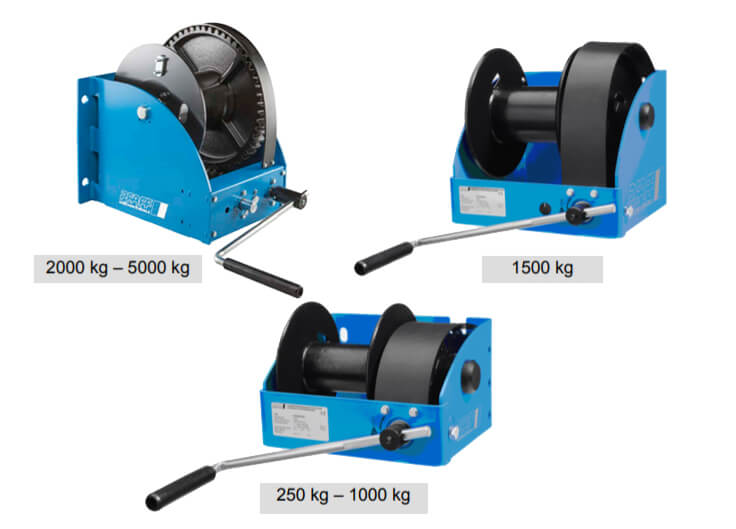

- Seven models from 250 to 5000 kg. Manually operated wall winch with worm gear for lifting and lowering.
- Load pressure brake. Holds the load securely in any position.
- Robust steel sheet construction. Compact housing and rope drum, with the axis on roller bearings.
- Crank and gear options. Vario hand crank up to 1500 kg; load and quick gear from 2000 kg.
- Versatile mounting. Suitable for walls, masts and similar installations.
Capacity:
250 kg
Accepted payment methods
Please enter correct zip code
shipping
Wire Rope Winch
A winch is a piece of mechanical equipment used to move heavy items.
The wire rope winch SW-W-SGO is a manually operated wall winch with worm gear for lifting and lowering in different load classes. A load pressure brake ensures secure stability of the lifted load.
Efficient power transmission, safe operation, and low maintenance effort: the wire rope winches of Pfaff meet these demands in all power classes.
For any inquiries, please contact us via chat.
Technical Data - Operating Instructions
FEATURES
- Compact winch housing and rope drum of robust steel sheet
- Worm gear with load pressure brake for a safe stable hold of the load in any position
- Axis on roller-bearing for better rope unwinding and longer service life of the winch

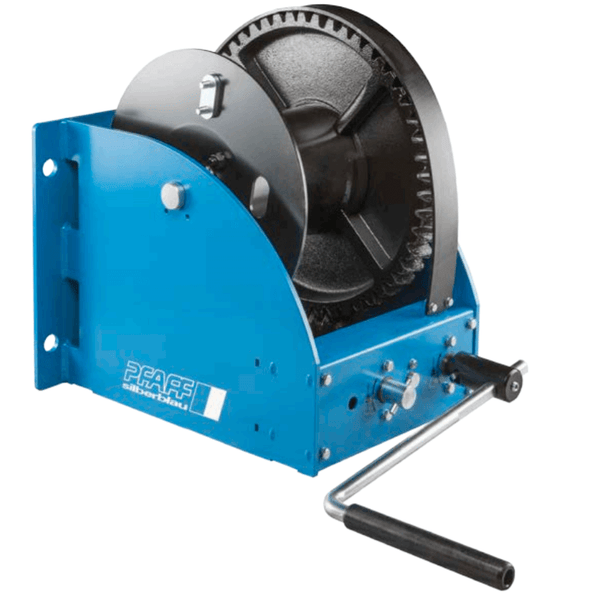

- Load and quick gear (second speed for fast lifting of smaller loads) from 2000 kg capacity
- Vario hand crank with an adjustable crank arm for winches up to a carrying load of 1500 kg
- Simple and quick attachment
- Suitable for mounting, especially onto walls, masts, and similar installations.
SPECIFICATIONS
- Capacity: 250 – 5000 kg
- Rope Diameter: 4 - 18 mm
- Weight Without Rope: 10 - 117 kg
MODELS
| Model | Capacity 1st / Top Layer | Rope Diameter | Rope Length 1st / Top Layer | Crank Force (1st / 2nd speed) | Weight |
|---|---|---|---|---|---|
| SGO 250 | 250 / 92 kg | 4 mm | 3.6 / 104 m | 6 daN | 10 kg |
| SGO 500 | 500 / 224 kg | 6 mm | 4.3 / 78 m | 10 daN | 13 kg |
| SGO 1000 | 1000 / 527 kg | 8 mm | 5.5 / 63 m | 13 daN | 22 kg |
| SGO 1500 | 1500 / 846 kg | 10 mm | 4.2 / 41 m | 14 daN | 24 kg |
| SGO 2000 | 2000 / 1038 kg | 12 mm | 5.4 / 75 m | 11 / 24 daN | 60 kg |
| SGO 3000 | 3000 / 1667 kg | 14 mm | 5.7 / 68 m | 14 / 31 daN | 78 kg |
| SGO 5000 | 5000 / 3276 kg | 18 mm | 5.2 / 43 m | 14 / 73 daN | 117 kg |
IMPORTANCE
- Power operation is not allowed.
- The wire rope winch is not designed for continuous operation.
- Not suitable for use in an explosive danger area.
- Not suitable for use in a corrosive atmosphere.
- Not suitable for larger energy conversions when used in lowering mode.
- Alterations to the winch or fitting of accessories are only allowed with our written approval.
- Pay attention to the technical data
- Pay attention to correct rope direction. See p.10 of the attachment.
OPTIONS
- Corrosion resistant version
- Drum with separation web for operation with several ropes.
- Grooved rope drum for improved guidance of the rope.
