Safetex galvanized wire rope slings for rope holders
Product No. AS-04-1K-01.00/10
Regular price
€69.20
€85.12
€6.92
€8.51
/ Unit
excl. €15.92 VAT
incl. €15.92 VAT
Shipping calculator
Please enter correct zip code
Payment methods
Product details
Safetex Sling Ropes for Wire Rope Holders, Galvanized
The galvanized Safetex sling ropes for wire rope holders are specifically designed for secure and permanent installations. Made from wire rope according to EN 12385-4 in a 6 x 19 construction with fiber core, they offer maximum strength and flexibility. The integrated thimble compliant with DIN 6899 Type BF and the tinned rope ends provide optimal corrosion protection and ensure a long service life. With load capacity ratings in accordance with DGUV, they are the ideal choice for demanding applications involving wire rope holders.
Description:
- Wire rope compliant with EN 12385-4 for maximum safety standards
- 6 x 19 construction with fiber core for flexibility and stability
- Equipped with thimble according to DIN 6899 Type BF
- Tinned rope ends for optimal corrosion resistance
- Compatible with wire rope holders – ideal for a wide range of applications
Specifications:
- Construction: 6 x 19 with fiber core
- Standard: EN 12385-4
- Thimble: DIN 6899 Type BF
- Rope end: tinned
- Load capacity: according to DGUV
Technical Data:

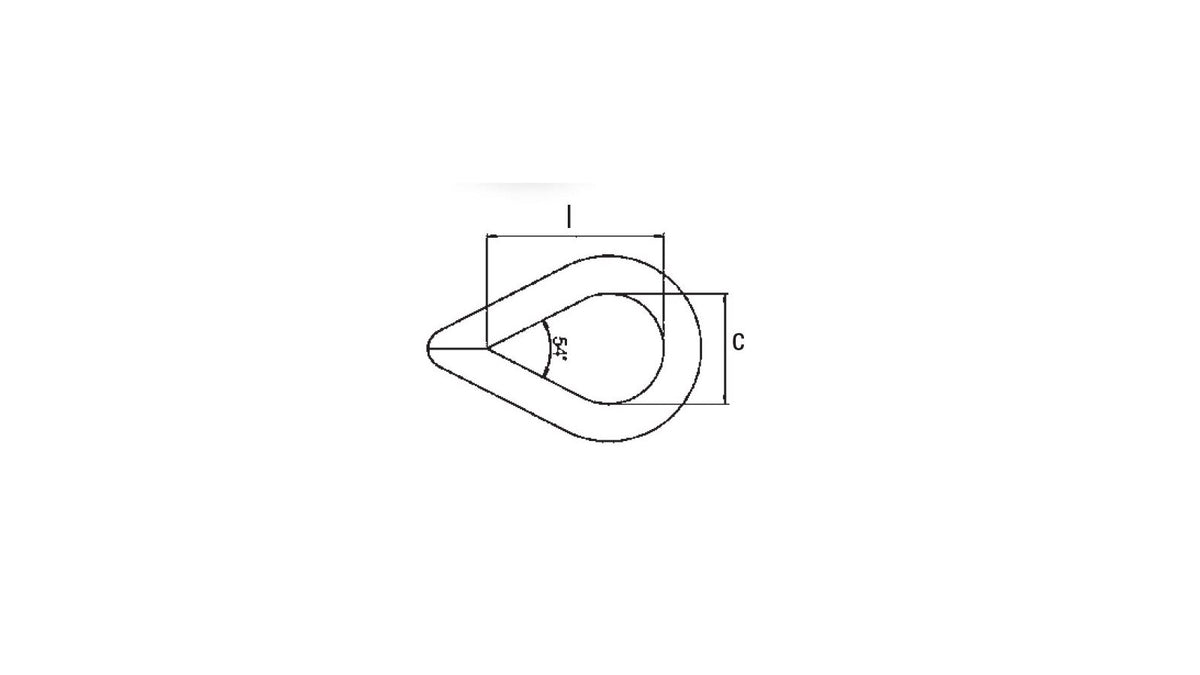

| Item No. | Rope Ø | DGUV | I | C |
| AS-04-1K | 4 mm | 60 kg | 21 mm | 13 mm |
| AS-05-1K | 5 mm | 90 kg | 23 mm | 14 mm |
| AS-06-1K | 6 mm | 135 kg | 25 mm | 16 mm |
| AS-08-1K | 8 mm | 240 kg | 32 mm | 20 mm |
| AS-06-1K30 | 6 mm | 135 kg | 50 mm | 32 mm |
| AS-08-1K35 | 8 mm | 240 kg | 58 mm | 35 mm |
