Ron StageMaster™ Wireless Classic Load Cell
- Real-time load monitoring. Wireless load cells with overload detection and visual and audible alerts.
- Up to 200 cells per station. Monitor all loads on one screen from a laptop or PC, tablet and smart phone compatible.
- 1 to 4 t in this listing. Safety factor 5:1 or 10:1, 200% proof load and accuracy of 0.1% of full range.
- Long range wireless. 2.4 GHz with up to 150 m transmission range in normal operation.
- Built for the road. Weatherproof IP 65 alloy steel cells, batteries lasting up to 5000 hours.
Safety Factor:
5:1
Capacity:
1 Ton
Accepted payment methods
Please enter correct zip code
shipping

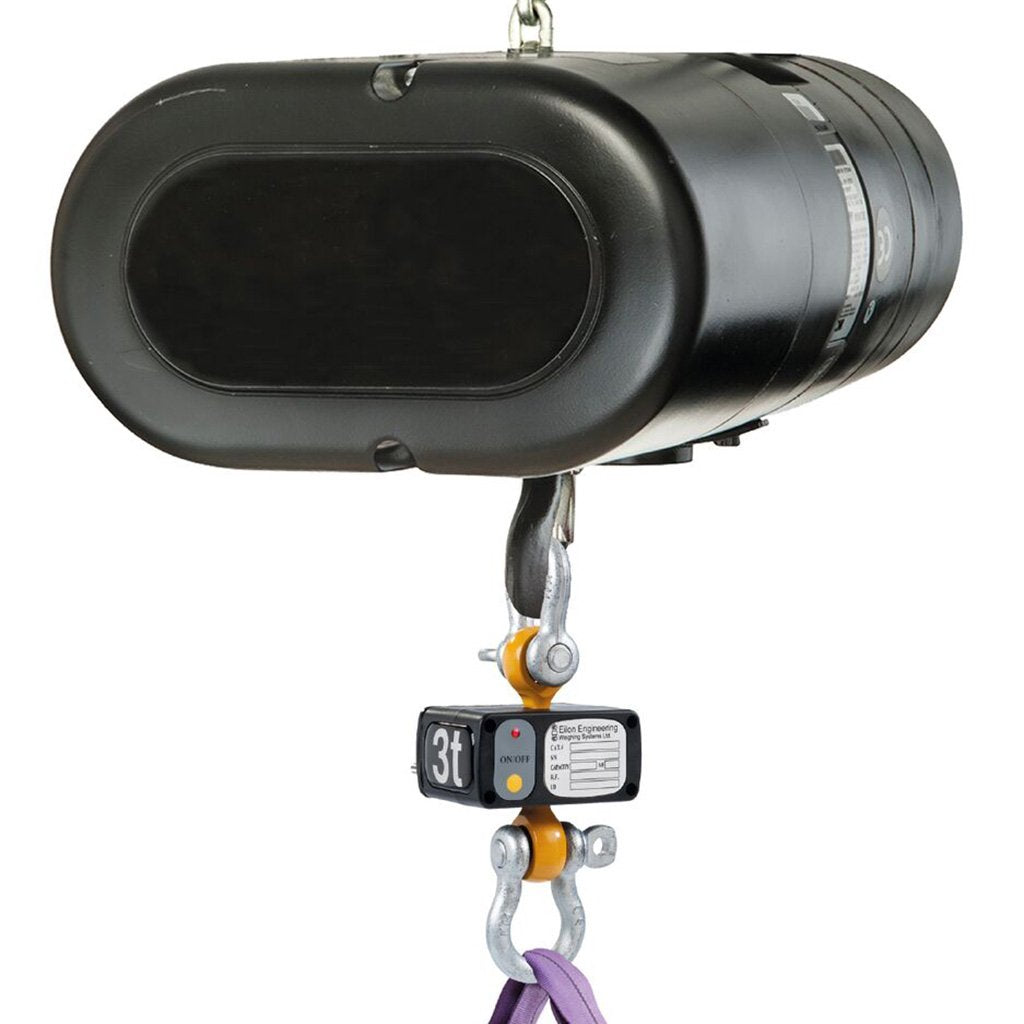

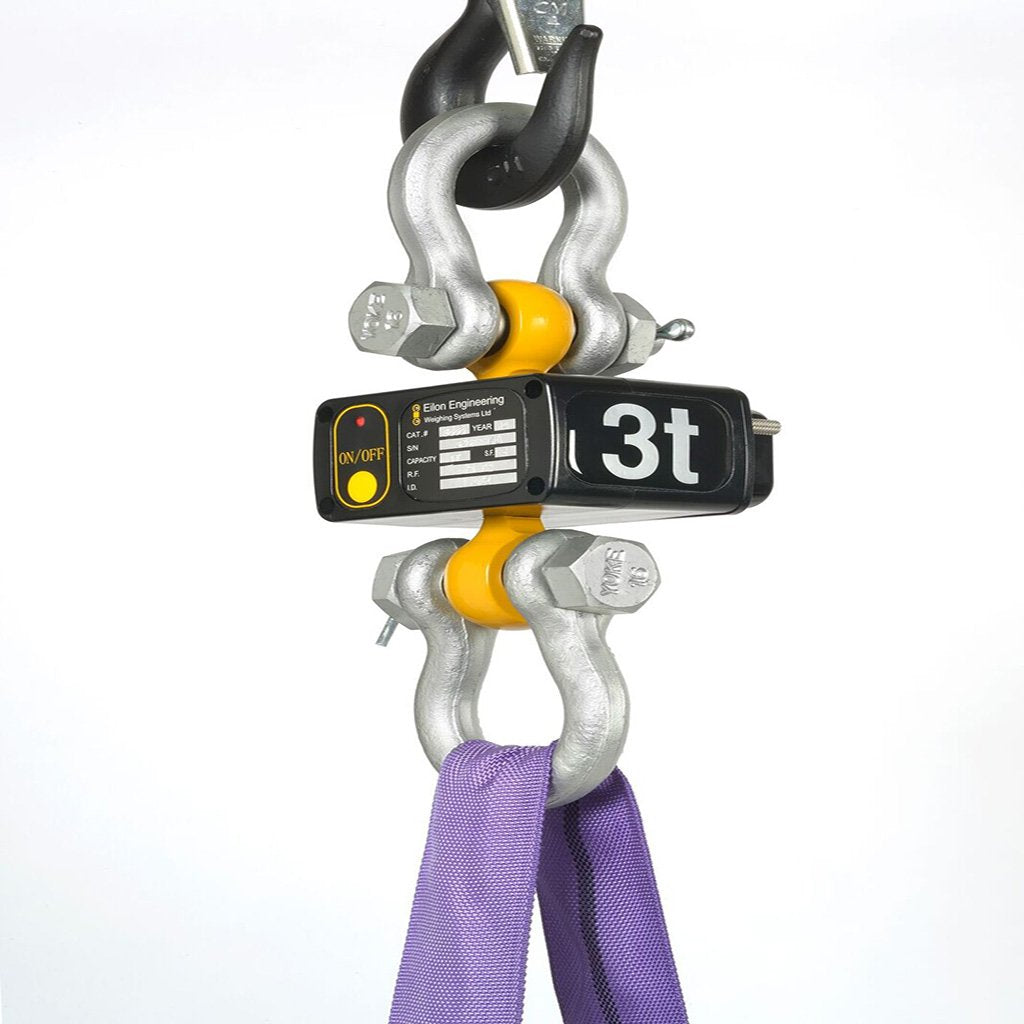

The Ron StageMaster™ 6000 G4 Wireless Eilon Classic Load Cell helps to ensure safe events by offering real-time load monitoring and overload detection. With a range of capacities from 1/4 Ton to 6 Tons and a practically unlimited number of load cells that can be monitored at one time, the wireless Classic Load Cells offered by Eilon Engineering are unmatched in performance, safety and flexibility.
| PRODUCT CODE | FULL RANGE (TONS) | SAFETY FACTOR | RESOLUTION (LBS.) | LOAD CELL WEIGHT (LBS.) | MATCHING ANCHOR SHACKLE SIZE (IN.) |
| S-0025-5 | 1/4 | 5 | 1 | 2.5 | 5/8, 1/2 |
| S-0025-10 | 1/4 | 10 | 1 | 2.5 | 5/8, 1/2 |
| S-005-5 | 1/2 | 5 | 1 | 2.5 | 5/8, 1/2 |
| S-005-10 | 1/2 | 10 | 1 | 2.5 | 5/8, 1/2 |
| S-01-5 | 1 | 5 | 2 | 2.5 | 5/8, 1/2 |
| S-01-10 | 1 | 10 | 2 | 2.5 | 5/8, 1/2 |
| S-015-5 | 1.5 | 5 | 5 | 2.5 | 5/8, 1/2 |
| S-015-10 | 1.5 | 10 | 5 | 2.5 | 5/8, 1/2 |
| S-02-5 | 2 | 5 | 5 | 2.5 | 5/8, 1/2 |
| S-02-10 | 2 | 10 | 5 | 2.7 | 3/4, 5/8 |
| S-025-5 | 2.5 | 5 | 5 | 2.5 | 5/8, 1/2 |
| S-025-10 | 2.5 | 10 | 5 | 2.7 | 3/4, 5/8 |
| S-03-5 | 3 | 5 | 5 | 2.5 | 5/8, 1/2 |
| S-03-10 | 3 | 10 | 10 | 4.5 | 1-1/4, 1-1/8, 1 |
| S-04-5 | 4 | 5 | 5 | 2.7 | 3/4, 5/8 |
| S-04-10 | 4 | 10 | 10 | 4.5 | 1-1/4, 1-1/8, 1 |
| S-05-5 | 5 | 5 | 10 | 2.7 | 3/4, 5/8 |
| S-05-10 | 5 | 10 | 10 | 4.5 | 1-1/4, 1-1/8, 1 |
| S-06-5 | 6 | 5 | 10 | 4.5 | 1-1/4, 1-1/8, 1 |
| S-06-10 | 6 | 10 | 10 | 4.5 | 1-1/4, 1-1/8, 1 |
- R.F.: 2.4 GHz range
- R.F. Transmission Range: Up to 450'/150m in normal operation
- Safety Factor: 5:1 and 10:1 standard
- Safety Features: Fatigue rated load cells that can withstand successive load cycles for long periods of time without the risk of failure or damage to the steel.
- Proof Load: 200%
- Accuracy: ± 0.1% of full range
- Capacities: Range of capacities from 0.25 t to 6 t; this listing offers 1 t, 2 t, 3 t and 4 t load cells with a 5:1 or 10:1 safety factor
- Display: Using a laptop or PC, the operator can monitor and control the loads up to 200 load cells per monitoring station simultaneously, having on one single screen all the relevant information derived from the load cells: Sum (group sum and total structure sum); Max; Tare; Zero; Group (LC); Overload detection; Stage-plan layout; Low battery indication; etc.
- Functions: Sum, Max, Tare, Zero, Group (LC), Overload detection and alert (visual and audible), Low battery indication, Reports data base, User calibration, Group functions (Sum, Max, Zero, Tare, Overload and customized overload detection), Plan/layout archiving
- Additional Features: Tablet and smart phone compatible
- Units: Selectable: Tons, Kgs, Lbs.
- Load Cell Material: Made of high-strength, aerospace quality low alloy steel, polyurethane coated
- Power: 4 x AA 1.5 Volt Alkaline disposable batteries rated 3Ah for each load cell; Batteries will function up to 5000 hours
- Calibration: User calibration. Initial factory calibration, certified and traceable to NIST
- Temperature Range: Load Cell: -15°F to +175°F / -25°C to +80°C
- Environmental: Weatherproof; Nema 4; IP 65
