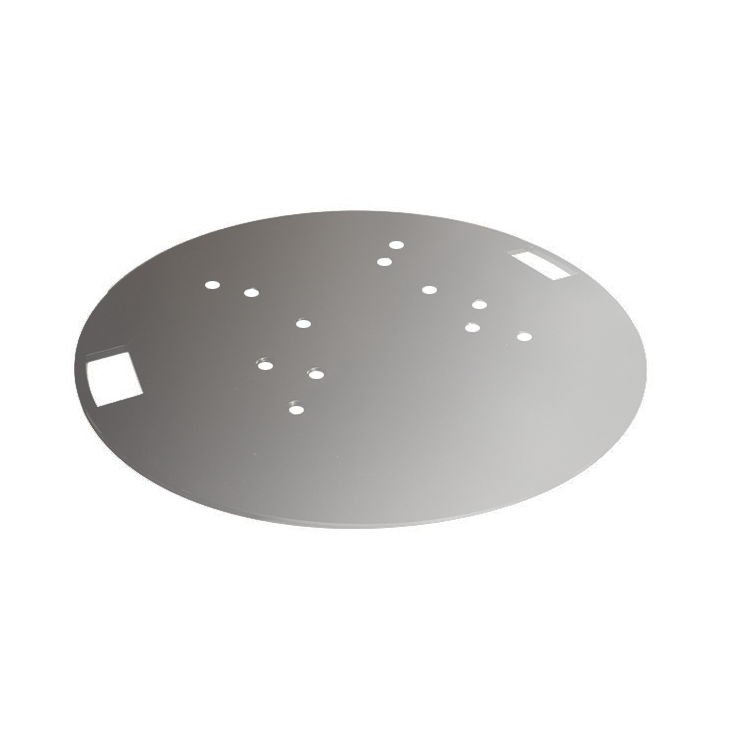

Prolyte 30-40 Series Baseplate - Round
- Steel counterbalance. Used to counterbalance goalpost structures or columns, ideal for truss poles with a lighting fixture on top.
- Fits 30 and 40 series truss. Suited for all 30 and 40 series truss in triangular, square and rectangular shapes.
- Two finishes. Available black-coated or galvanized, each plate with two reinforced grips for easier handling.
- Conical or Verto attachment. Attach with CCS6 couplers, spigots and R-springs, or with VER6 couplers for Verto truss.
Accepted payment methods
shipping
Prolyte Group has extended its standard range of accessories with steel baseplates. Steel baseplates are used to counterbalance goalpost structures or columns and are the ideal solution for truss poles with a lighting fixture on top.
The steel baseplates are available as standard in a round version as well as a square version. The plates are suited for all 30 and 40 series truss in triangular, square and rectangular shapes. Each plate has two reinforced grips, which makes them easier to handle. This round baseplate is available in a black-coated version (BASE-30-40-RS-BC) or a galvanized version (BASE-30-40-RS-G).
Technical Specifications
- Material: steel
- Shape: round
- Compatible with: all 30 and 40 series truss in triangular, square and rectangular shapes
- Grips: 2 reinforced grips
- Finishes: black-coated (BASE-30-40-RS-BC) or galvanized (BASE-30-40-RS-G)
- Weight: 38 kg (BASE-30-40-RS-BC)
Necessary additional products for Conical Truss Attachment:
- CCS6-649 Couplers (3 for Triangular Truss, 4 for Square)
- M12x20 Countersink Bolts (3 for Triangular Truss, 4 for Square)
- CCS6-603 Spigots (3 for Triangular Truss, 4 for Square)
- CCS6-605 Safety R-Springs (3 for Triangular Truss, 4 for Square)
For Verto Truss Attachment:
