Boscaro Pipe laying hook

Boscaro Pipe laying hook

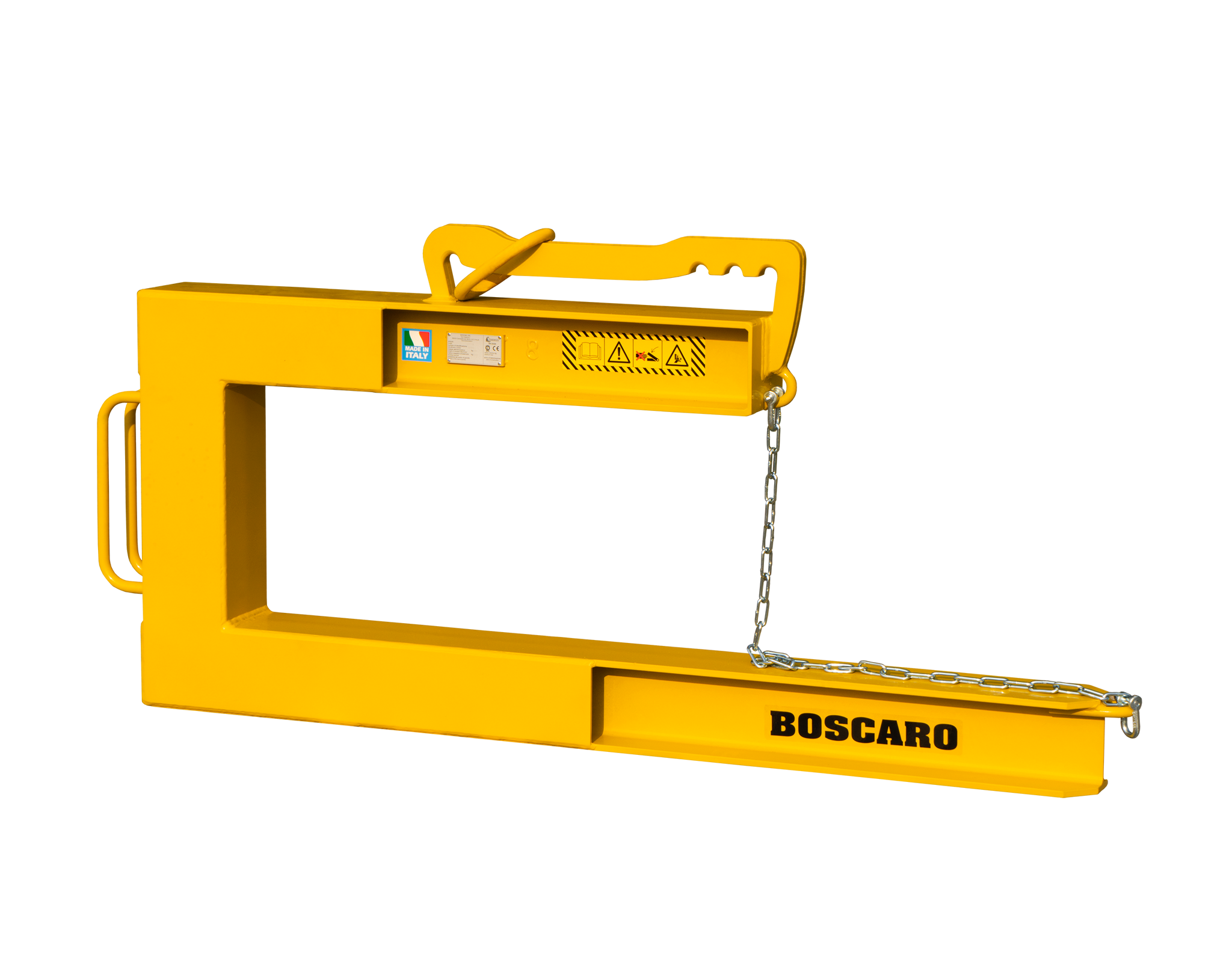

The Boscaro Pipe Laying Hook is a high-quality lifting solution designed for the safe and efficient handling of concrete pipes. Engineered for use with cranes and excavators, this C-hook ensures precise horizontal lifting and laying of pipes. Featuring a manual balancing system with a sliding ring, it allows stable positioning of pipes of various lengths and weights. Additionally, removable side stabilizers are available for lifting box culverts, enhancing balance and preventing accidental slips.

Built for durability and compliance, this hook is manufactured and tested according to UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, and UNI EN 10204 standards. Each unit comes with a metal ID plate, a conformity certificate, and a user and maintenance manual. Customizations for different capacities and pipe lengths are available upon request.

This product is backed by a one-year warranty as per the European Directive.

Downloads:

Technical Data Sheet

Key Features:

• Designed for horizontal lifting and laying of concrete pipes
• Manual balancing system with a sliding ring for stability
• Removable side stabilizers for lifting box culverts
• Constructed according to international safety and performance standards
• Custom sizes and capacities available upon request

Specifications:

• Capacity: Up to 10,000 kg
• Weight: Ranges from 25 kg to 610 kg
• Max. Pipe Length: Up to 2,500 mm
• Compliance: UNI EN 13155, UNI EN ISO 12100, UNI EN 13854, ISO 8686, UNI EN 10204
• Includes metal ID plate, conformity certificate, and user manual

References:

• UNI EN 13155
• UNI EN ISO 12100
• UNI EN 13854
• ISO 8686
• UNI EN 10204
