Pink Eye Nut

Product No. T42307

Please Note: We require a minimum order value of €55 for all Doughty products.


  • Shipping note: All Doughty products ship from the UK with customs charges prepaid. If you have any questions, please contact us.
Regular price €126.48 €155.57
excl. €29.09 VAT
incl. €29.09 VAT
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_expressapple_paygoogle_paymaestromasterpaypalshopify_payunionpayvisa
Product details

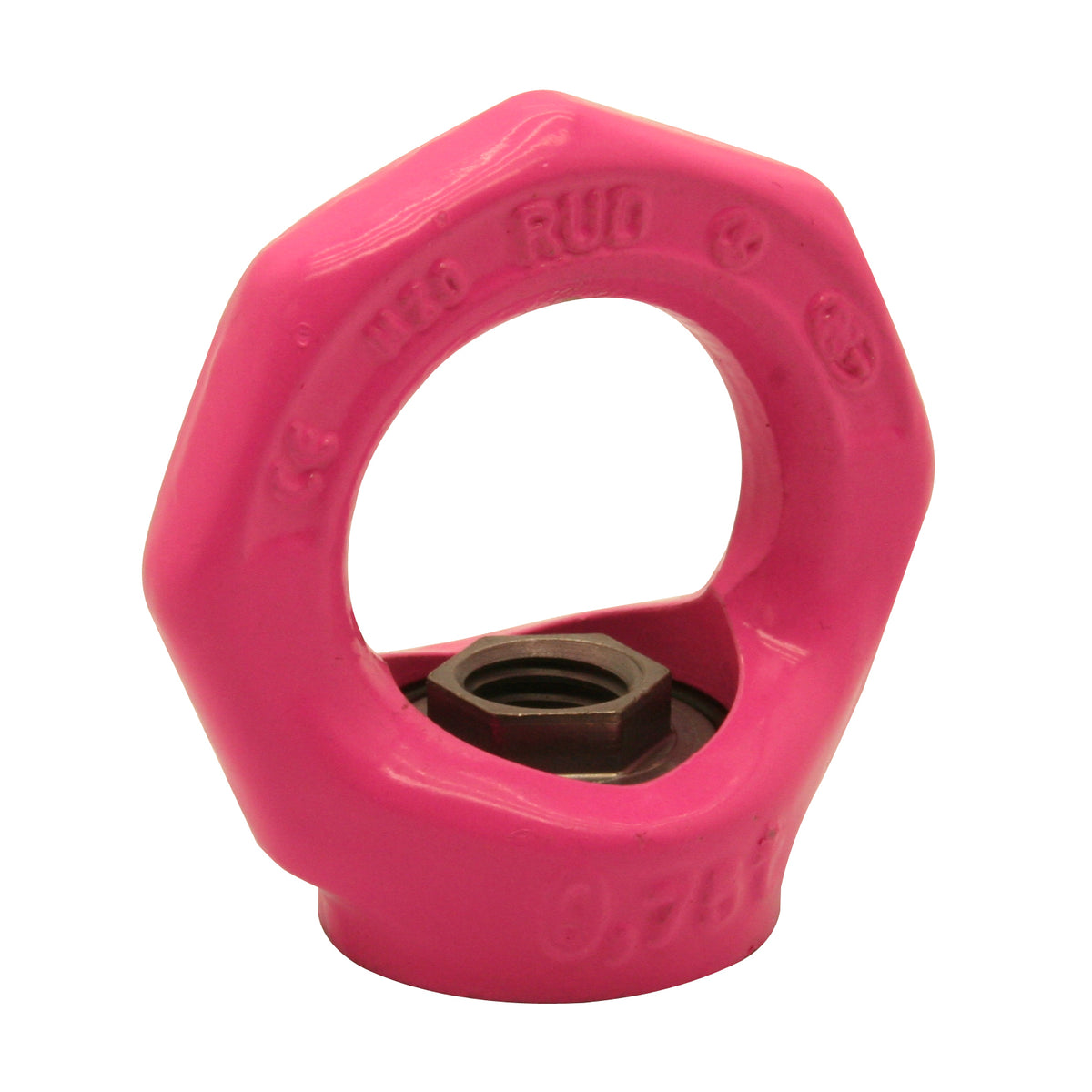

Pink Eye Nut - Forged Material

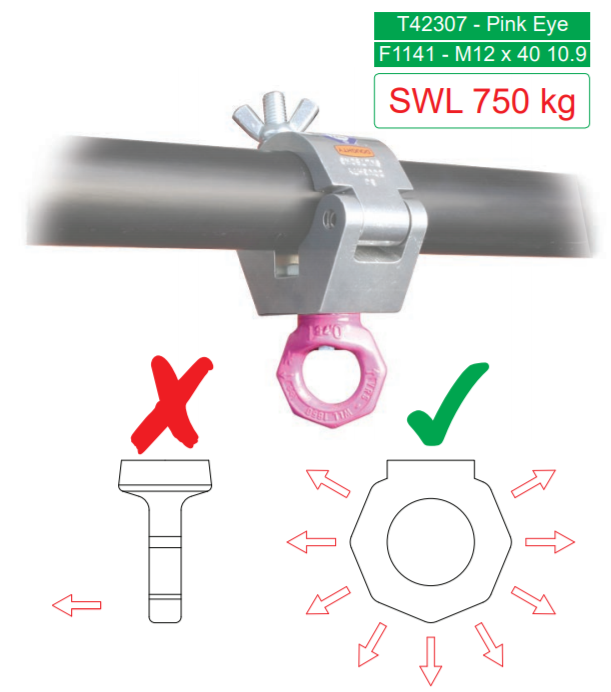

The Pink Eye is an articulating M12 Eye Nut with a SWL of 750kg, manufactured with forged material 1.6541, high tensile and annealed. 100% electromagnetic crack detected according to EN 1677-1. Unlike standard eye nut to DIN 582, this eye nut can be used for most unfavorable load directions. These eye nuts can be used with any Doughty Clamp which accepts M12 fixings and should be mounted with a grade 10.9 bolt. Attention: Lateral forces with standard eyebolts according to DIN 580 are forbidden. For any inquiries, please contact us via chat.

Safety Instruction - Load Weight


Specifications:

  • SWL: 750kg
  • Material:
    1.6541, forged.
    High Tensile and Annealed
    100% electromagnetic alloy crack tested in accordance with specification EN 1677
  • Fixing: For bolts with minimum quality class 10.9
