Doughty Swivel Truss Adapter

T55705

Collections: All Products, Doughty Clamp, Doughty Engineering- Rigging, Lifting & Suspension Gear, Rigging Hardware

MTN SHOP Shipment COVID-19 Update: Our team is working hard to process your orders. Due to the effects of COVID-19, some carriers are experiencing delays on shipments. As a result, we are projecting standard shipment times of 7-10 days. Please chat with our team below for a shipping estimate on your order.

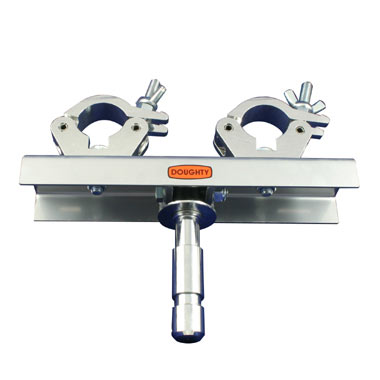

Swivel Truss Adapter - Doughty Engineering

Truss Adaptors enable triangular and square truss sections to be mounted to any of the Doughty winch stand range shown in the image. This system provides a safe and secure means to lift truss sections into place.

The Swivel Truss Plate allows one person to rig a truss between two winch stands. Each stand can be raised individually until the required height is achieved. Standard size and large size are available. For any inquiries, please contact us via chat.

Features :

Suitable for all triangular & square truss sections.
Enables one person to rig a truss between two stands.

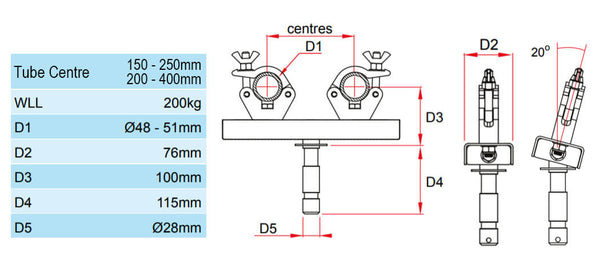

Specifications :

SWL: 200 Kg
Tube Diameters: 48mm to 51mm
Tube Centres: 150 - 250mm (Standard Size) & 200 - 400mm (Large Size)
Width: 76mm
Weight: 2.75 Kg
Fixing: 28mm diameter Spigot with 115mm Length

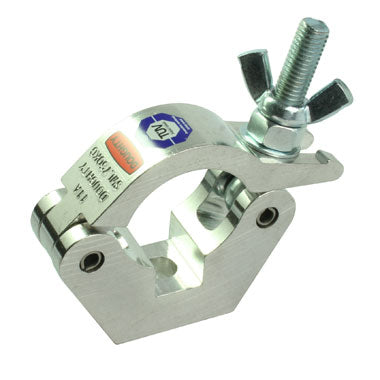

Material: High tensile 6082-T6 aluminum couplers
Finish: High-quality silver powder coated
