Doughty Swivel Clews
€74.40incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Swivel shackle clews. Attach a hauling line to 3, 4 or 5 rigging wires.
- Pulley compatible. Combine multiple hanging lines into a single winch line with Doughty pulleys and drum winches.
- Three load ratings. WLL 250 kg, 500 kg or 1000 kg with a 5:1 safety factor.
- Matched wire sizes. 4-5 mm, 6-7 mm or 8 mm wire rope depending on rating; thimbles supplied.
- Powder painted steel. S275 mild steel construction.
Attachment Points:
3 Way
SWL:
250 Kg
Accepted payment methods
Please enter correct zip code
shipping
Doughty Swivel Clews

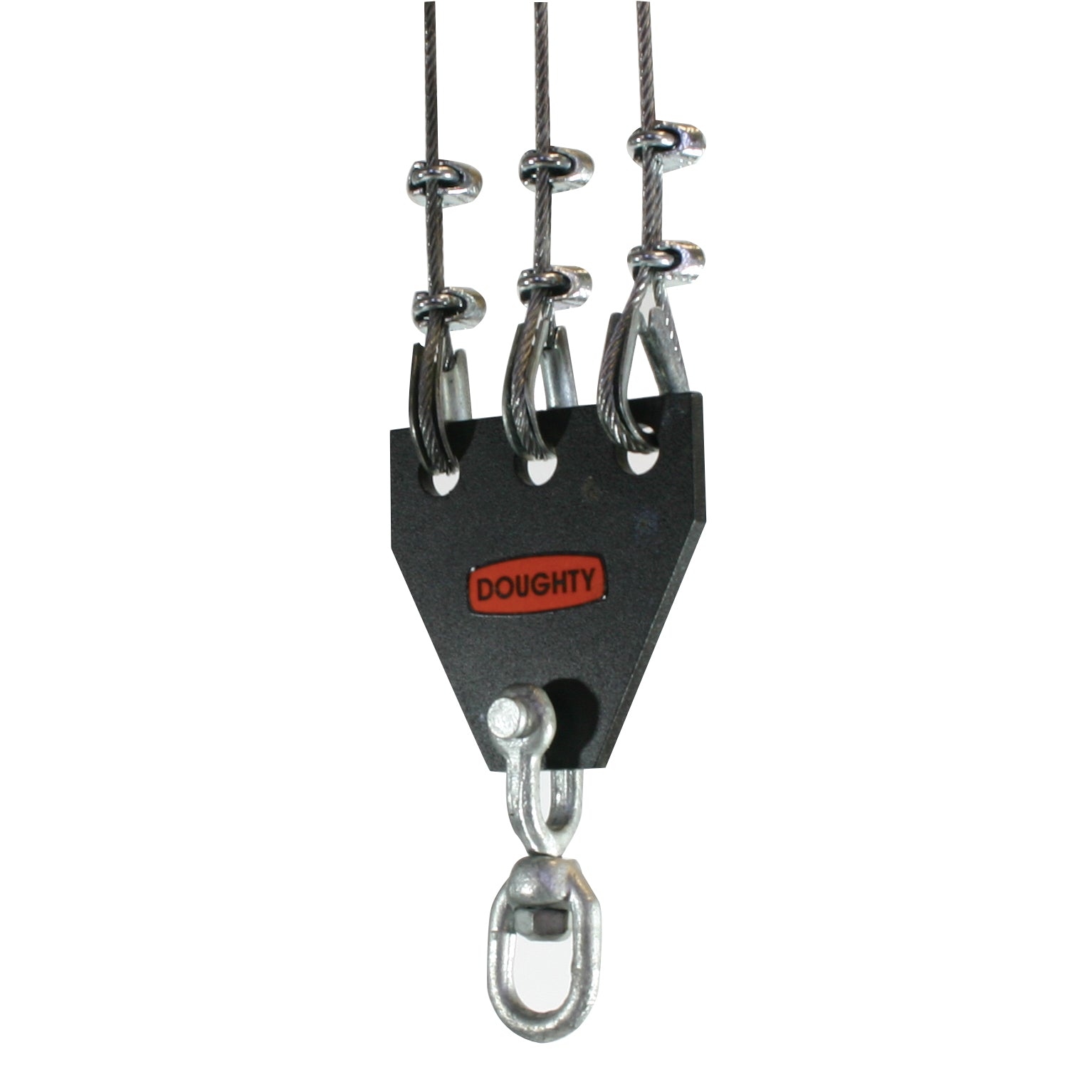

This is a range of steel clews fitted with swivel shackles, designed to attach a hauling line to 3, 4 or 5 rigging wires. It is suitable for use with Doughty standard and heavy-duty ranges of pulleys to combine the multiple hanging lines into a single winch line when using drum winches. Available with a WLL of 250kg, 500kg or 1000kg. Thimbles are supplied. For any inquiries, please contact us via chat.
Specifications:
- Material: S275 Mild Steel
- Finish: Powder painted
- Safety Factor: 5:1
- Wire Rope: 250kg clews: 4-5mm; 500kg clews: 6-7mm; 1000kg clews: 8mm
Available Versions:
- T41000: 3 way, WLL 250kg, for 4-5mm wire
- T41100: 4 way, WLL 250kg, for 4-5mm wire
- T41200: 5 way, WLL 250kg, for 4-5mm wire
- T41300: 3 way, WLL 500kg, for 6-7mm wire
- T41400: 4 way, WLL 500kg, for 6-7mm wire
- T41500: 5 way, WLL 500kg, for 6-7mm wire
- T41600: 3 way, WLL 1000kg, for 8mm wire
- T41700: 4 way, WLL 1000kg, for 8mm wire
- T41800: 5 way, WLL 1000kg, for 8mm wire
