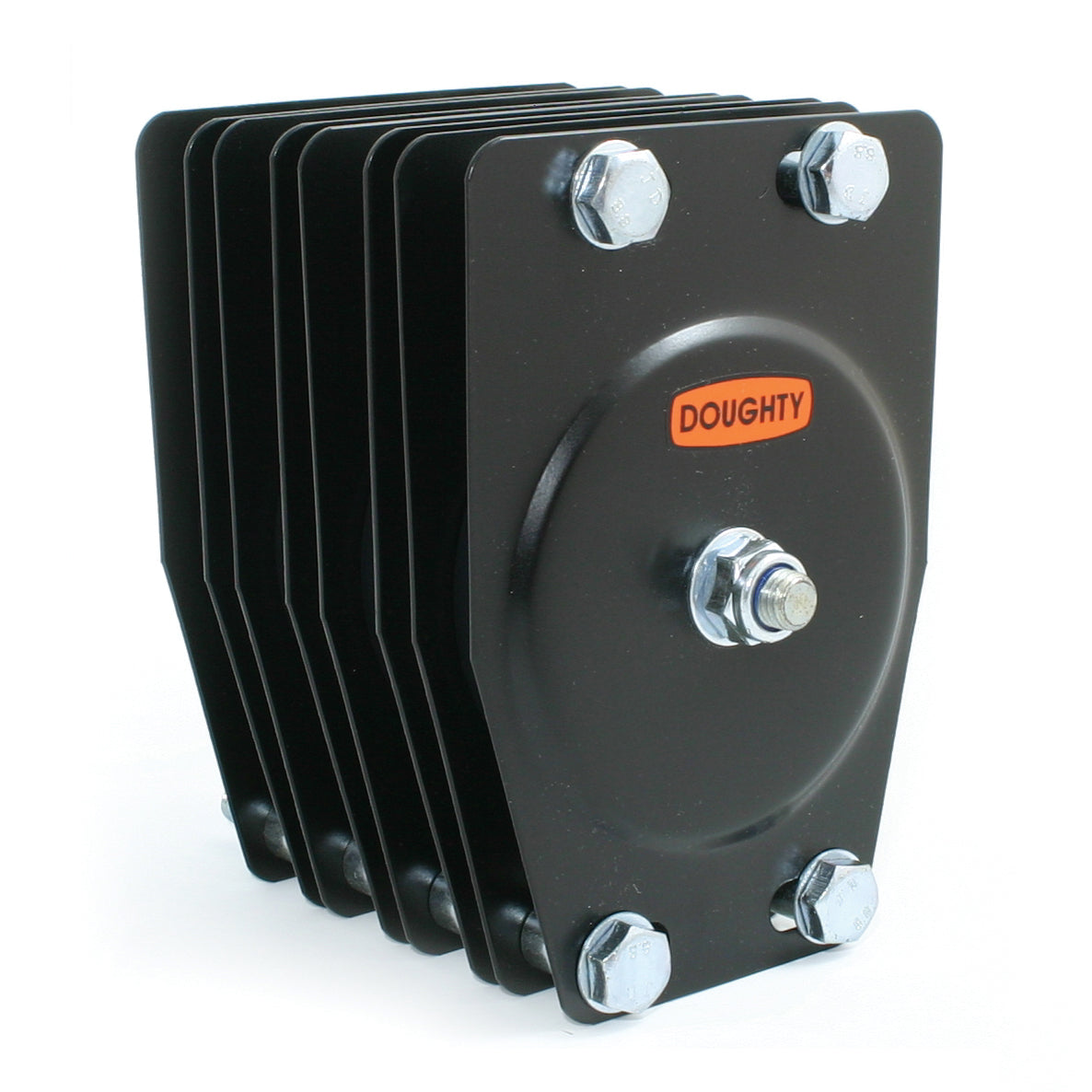

Doughty Quad Sheave Pulley
Incl. VAT. Shipping calculated at checkout.
- Modular pulley system. Quad sheave pulley ready to accept any of the Doughty range of fixings.
- 150 kg WLL. Same working load limit for all sheave sizes.
- Three sheave sizes. 100 mm, 150 mm and 180 mm nylon sheaves, for fibre or wire ropes.
- Choice of brackets. Multibeam girder brackets, awnings, girder brackets, wall side plates and multifix brackets are available.
Accepted payment methods
shipping
Doughty Quad Sheave Pulley
The Doughty Pulley system is of modular construction, allowing easy assembly of single or multiple sheave units from a limited range of standard components. With the addition of various brackets and fixings, the basic pulleys will fulfill a variety of specialist needs. This Quad Sheave Pulley is available with 100mm, 150mm, and 180mm diameter sheaves. Sheaves are available for fibre or wire ropes. All Standard Doughty Pulleys have a safe working load of 150 kg.
A basic quad sheave pulley is ready to accept any of the range of fixings. To order pulleys please state part numbers of:
1. Basic Pulley required
2. Fixing System required ie. T42800 + T42865 = 100mm Single Pulley (for wire) fitted with Awning Block.
Part Numbers (Quad Sheave):
- 100mm sheave: T42813 (wire rope), T42839 (fibre rope)
- 150mm sheave: T42823 (wire rope), T42849 (fibre rope)
- 180mm sheave: T42833 (wire rope), T42858 (fibre rope)
Pulleys are supplied without brackets; brackets are ordered separately and must be factory fitted.

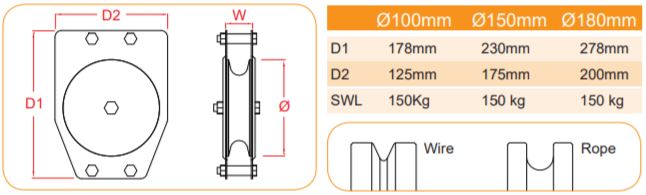

Specifications:
The recommended sizes for Hand Ropes & Wires are:
- 100mm Diameter Sheave - 12mm Rope – 4mm Wire
- 150mm Diameter Sheave - 18mm Rope – 6mm Wire
- 180mm Diameter Sheave - 18mm Rope – 6mm Wire
- WLL: 150 kg
- Width: 116mm
Brackets for Doughty Standard Pulleys:
- Multibeam Girder Brackets: For wall or ceiling applications
- Pulley Awnings: To be used with a shackle
- Girder Brackets: To be used with girders
- Wall Side Plates: To mount any size pulley to wall
- Multifix Brackets: To make wall mounted, ceiling mounted and upright guide pulleys, as well as cross tube assemblies.
