Doughty Pipe to Wall Brackets (Steel)
€29.22incl. VAT
Incl. VAT. Shipping calculated at checkout.
- Wall-mounted suspension. Suspends fixtures and tubes from a vertical surface.
- Two sizes. T33310 (125 mm, 60 kg WLL) or T33300 (325 mm, 30 kg WLL).
- Zinc plated mild steel. For Ø48 mm tube with Ø11 mm fixing holes and grade 8.8 fasteners.
Standoff:
100mm
Accepted payment methods
Please enter correct zip code
shipping
Doughty Pipe to Wall Brackets

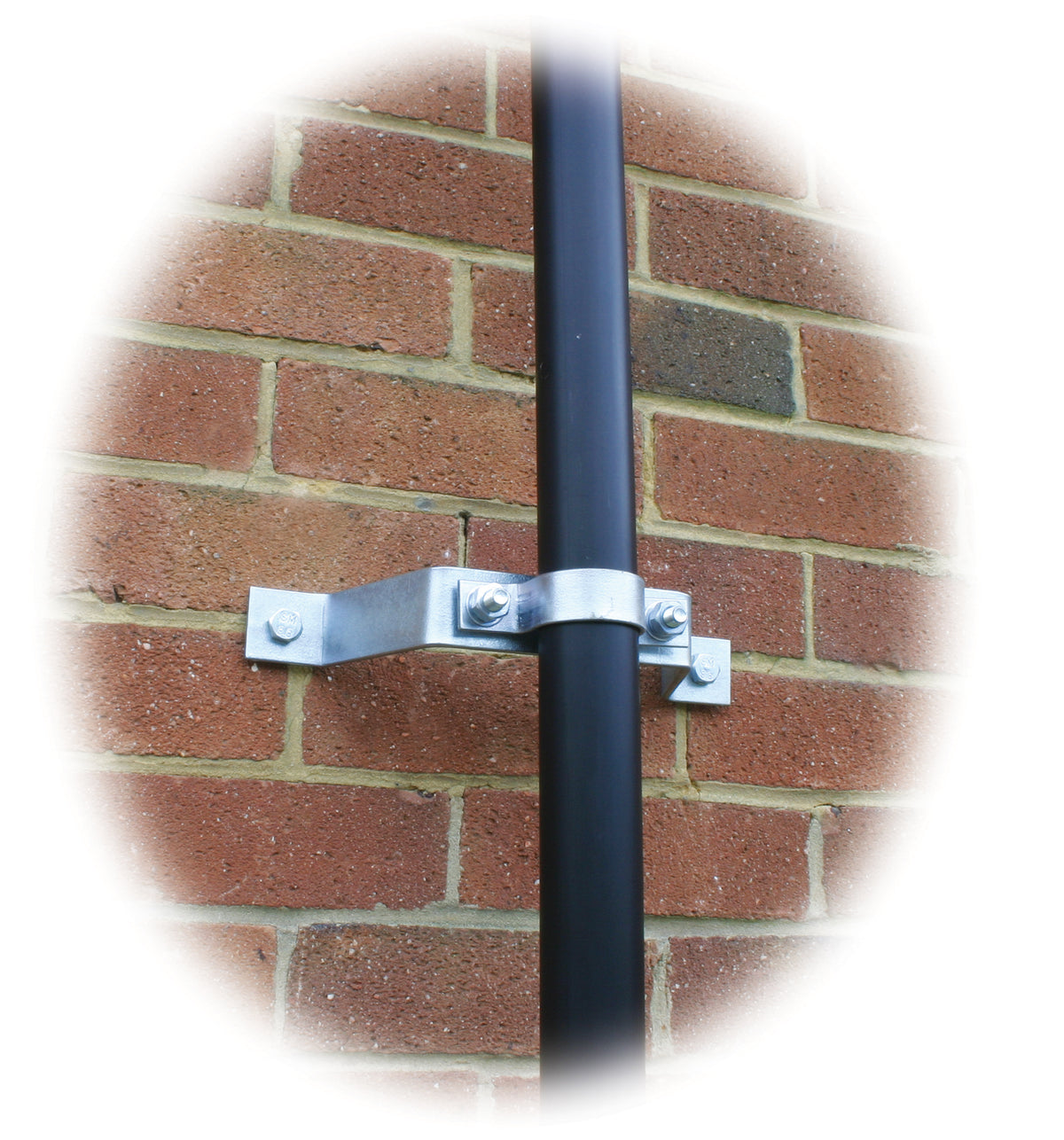

Steel bracketry designed primarily to be wall mounted, allowing fixtures and tubes to be suspended from a vertical surface.

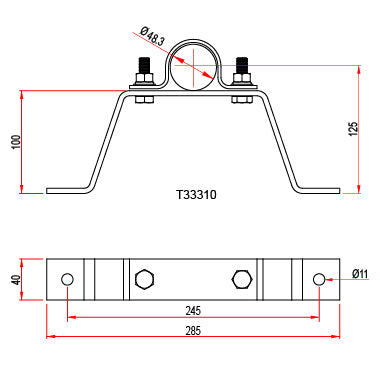

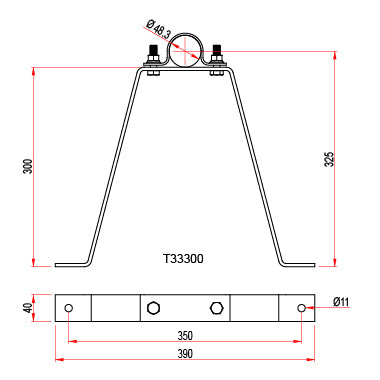

These pipe-to-wall brackets are available in two sizes: T33310 (125mm) and T33300 (325mm). For any inquiries, please contact us via chat.
Specifications:
- Tube Diameter: ⌀48mm
-
WLL & Product Weight:
T33310 (125mm): 60kg & 0.83kg
T33300 (325mm): 30kg & 1.48kg - Material: S275 Mild Steel
- Fasteners: Grade 8.8
- Finish: Zinc plated
- Fixing Holes: ⌀11mm
- Factor of Safety: 5:1
