Doughty Girder Clamp - C/W End Bracket

Doughty Engineering |
SKU: T29804
€50.07incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Lightweight Durability. Engineered from robust steel for strength without the bulk, perfect for quick setups in live events and productions.
  • Adjustable Compatibility. Fits beams up to 6mm thick, ensuring a secure hold, ideal for versatile staging and rigging needs.
  • Versatile Attachment. Comes with a removable M12 tapped bracket for added flexibility, allows for easy adjustments during setup.
  • Size Variety. Available in three sizes accommodating girder widths from 100mm to 300mm, perfect for diverse staging environments.
View Full Description Technical Data

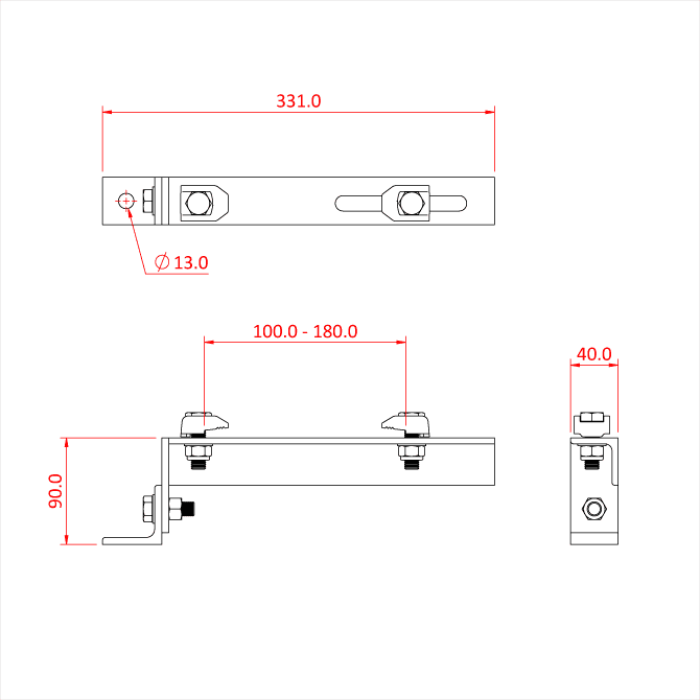

Girder Size: 100-180mm

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Doughty Girder Clamp, C/W End Bracket

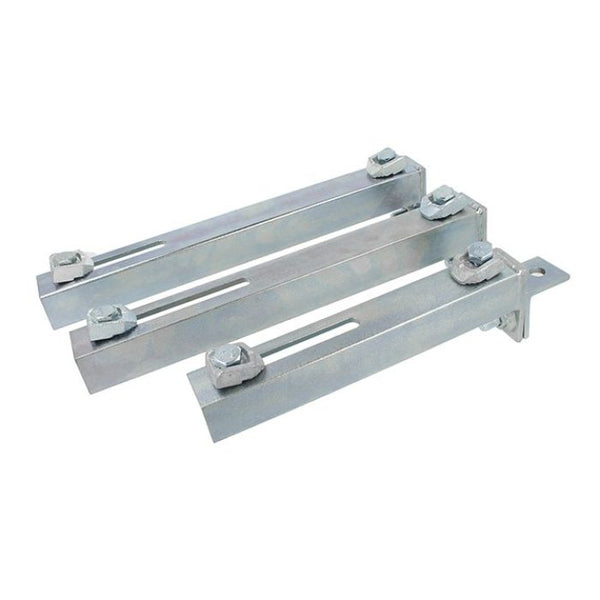

The Doughty Girder Clamp with End Bracket is a universal bracket built with a detachable end, threaded to suit an M10 bolt. Finished in BZP (bright zinc plated) steel and rated to a 60Kg WLL, it's designed to fasten around structural girders and beams for rigging fixtures.

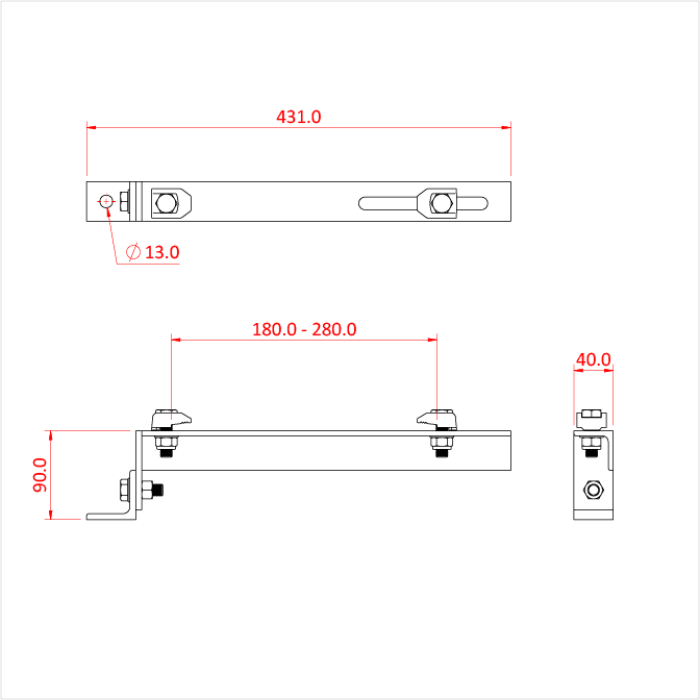

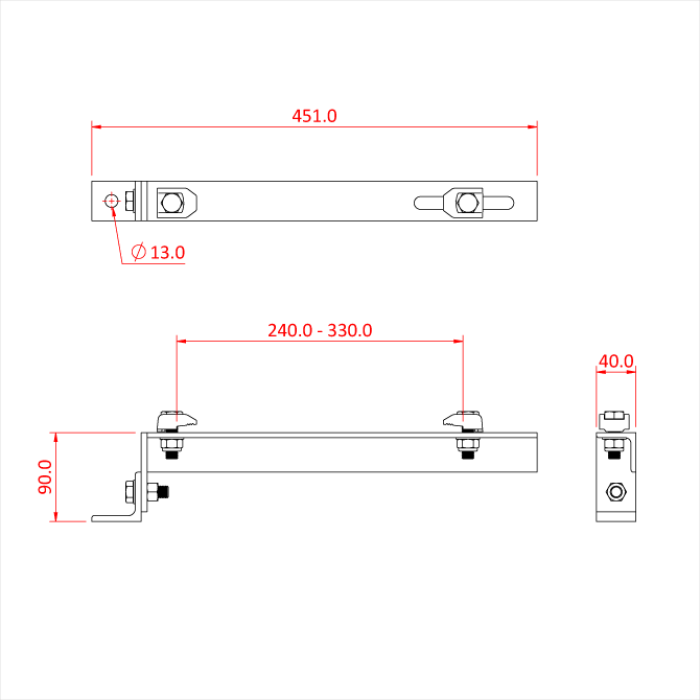

Three sizes cover a range of girder thicknesses: 100-180mm, 180-280mm, and 240-330mm, so you can match the bracket to your beam without needing a custom fit.

Key Features

  • 60Kg WLL, BZP finish
  • Detachable end, threaded to suit an M10 bolt
  • Three sizes covering 100mm to 330mm girder thickness
  • Universal bracket design for straightforward beam fastening

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

Which size Doughty Girder Clamp, C/W End Bracket fits my beam?
Measure your girder's flange thickness first: T29804 covers 100-180mm, T29805 covers 180-280mm, and T29806 covers 240-330mm. Choose the size where your measurement sits comfortably within the range, not right at the edge.
What does "detachable end" mean on the Doughty Girder Clamp, C/W End Bracket?
The end of the bracket unscrews from an M10 threaded bolt, letting you fit the clamp around a beam before reattaching the end, rather than needing to slide the whole bracket over the girder from one side.
What's the working load limit of the Doughty Girder Clamp, C/W End Bracket?
It's rated to 60Kg across all three sizes, so choose based on the girder thickness you need to fit rather than expecting a capacity difference between the size options.
