Doughty Easydeck Ramp System - Portable Staging for Small Venues
Product No. T77900
*IMPORTANT NOTE* - All Doughty products are shipped from the UK. We will cover all customs charges on your delivery in advance so no extra payment is needed from you. We require a minimum order value of €50 for all Doughty products.
Please note if you order less than €50 worth of Doughty products, your order will be refunded.
Easydeck Modular Staging - Ramp System
Easydeck is a modular performance system, perfectly suited for use in the smaller venues, e.g schools, and theaters. Designed after extensive consultation with drama teachers, amateur groups and rental companies, the system provides an efficient, safe & cost-effective solution to portable staging.
Simple to install. No special tools required!

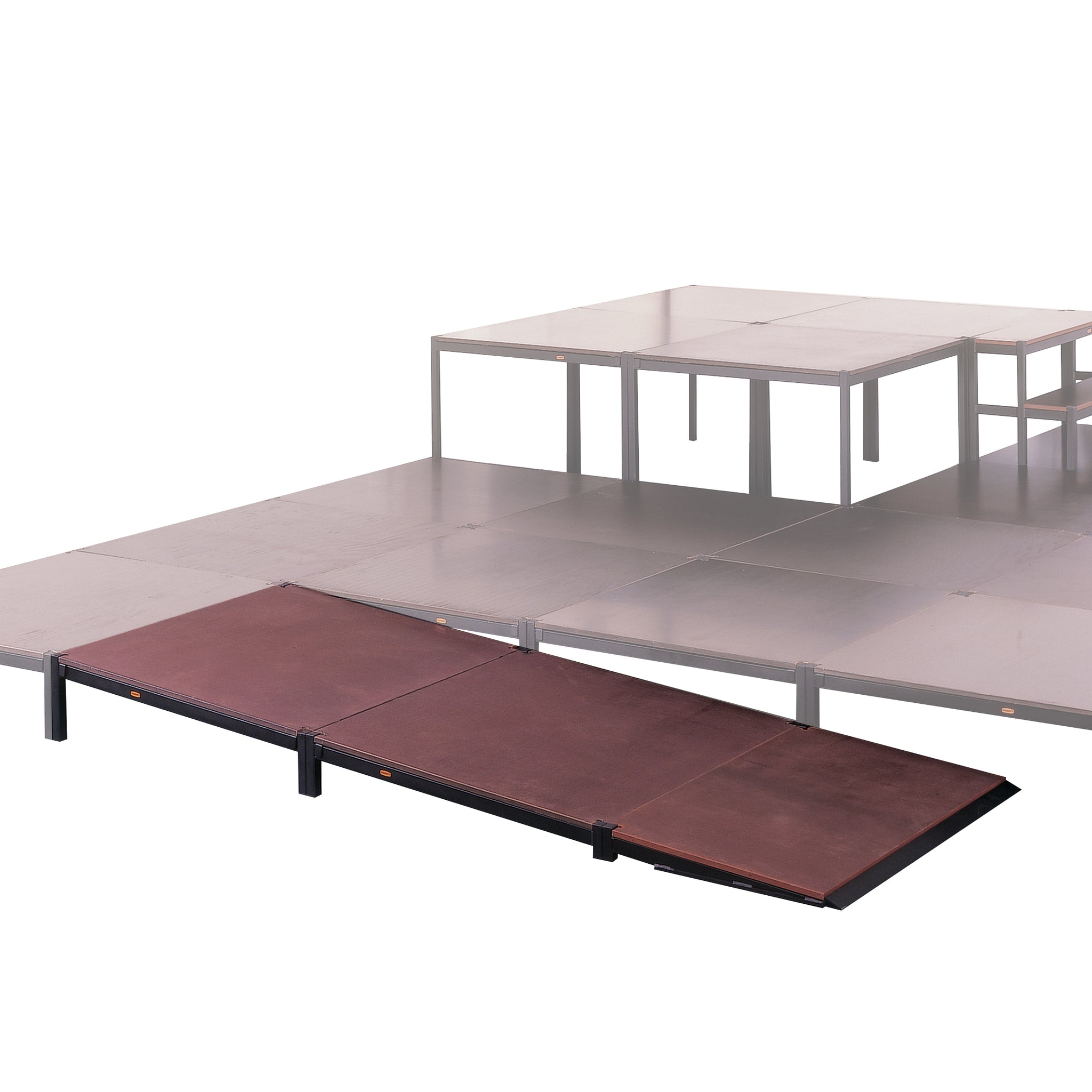

The Easydeck Ramp System provides easy access to tiered seating for wheelchairs, those with young children, or anyone finding stairs difficult. The ramps comply fully to ‘Document K’ of the UK building regulations.

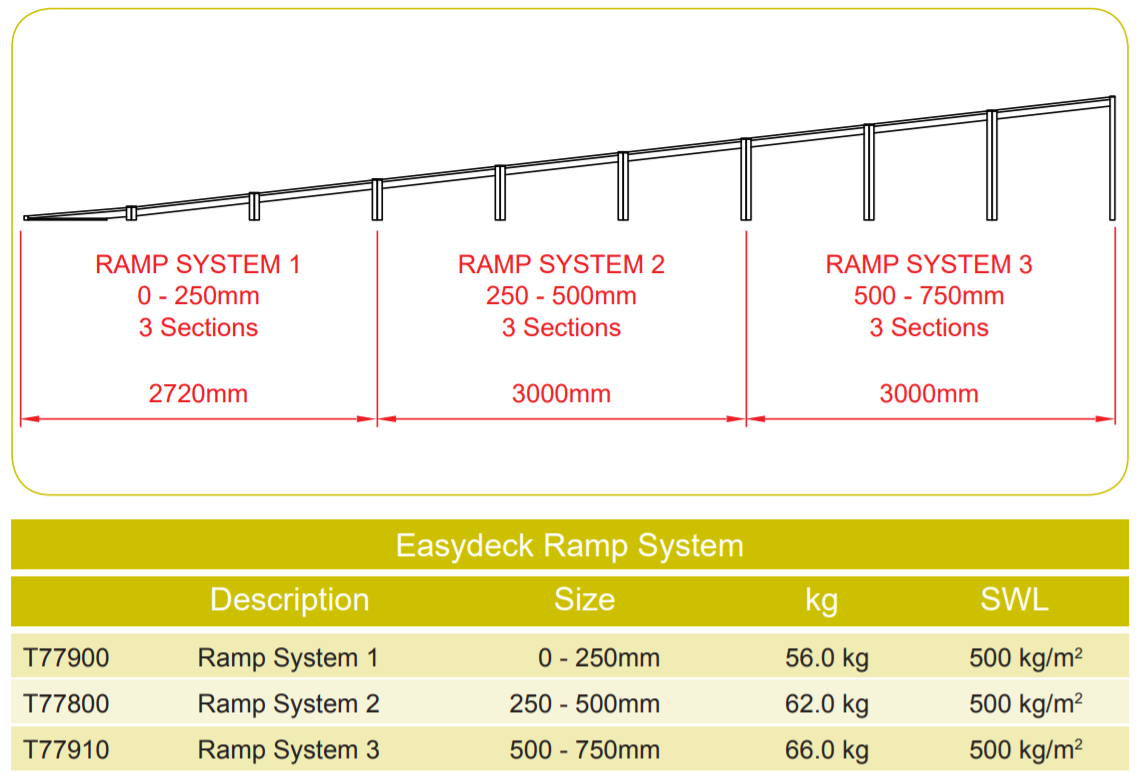

The ramp system is available in three height sections, giving overall height increases of 250mm per section. These ramps give gentle slopes up to a maximum height of 750mm when used in combination with one another.
This can be in either a single straight run or switchback when used with standard modules as landings. Easydeck ramp modules can be supplied with optional handrails for added security. For any inquiries, please contact us via chat.
Features & Specifications:
- SWL: 500kg per square metre
- Point Load: 300kg
- Finish: Black Powder Paint
- Height range: 0-250mm, 250-500mm, 500-750mm (See the image above)
- Weight: 56kg, 62kg & 66kg
- Ramp systems are supplied with boards
- Easydeck conforms to DIN 53799, BS6566:1 1985
