Doughty Combo Stands

Doughty Engineering |
SKU: G203001
€203.00incl. VAT

Incl. VAT. Shipping calculated at checkout.

1 Year Warranty
  • Nine heights. Maximum heights from 1.12 m (Mini Combo) up to 6.7 m (Wide Base Hi-Hi-Combo).
  • Lazy Leg. Adjustable leg for stable use on uneven surfaces.
  • Three-function Multihead. G206001 Multihead top fitted as standard for lights and grip equipment.
  • 20 to 40 kg WLL. Each model carries its own working load limit, see the table.
  • Safe operation. No finger traps between riser castings and internal spring dampers.
View Full Description Technical Data
Finish: Black
Max Height: 1.12m

Accepted payment methods

american_expressapple_paybancontactblikgoogle_payidealklarnamaestromastermobilepaypaypalshopify_payunionpayusdcvisa
Please select country
Please enter correct zip code

shipping

Test heading

Doughty Combo Stands

The Doughty Combo Stands range covers nine telescopic TV specification lighting stands (Shadow stands) with maximum heights running from 1.12m up to 6.7m, each with its own WLL rating. Every model comes fitted with a G206001 three-function Multihead top and a Lazy Leg for use on uneven surfaces, and is finished in black powder paint.

Features

  • Nine sizes covering 1.12m to 6.7m maximum height
  • WLL from 20kg to 40kg depending on model
  • Lazy Leg for use on uneven surfaces
  • Three-function Multihead (G206001) fitted as standard
  • Double leg braces
  • No finger traps between riser castings
  • Black powder paint finish
  • Die-cast aluminium lock-off knobs in stainless steel rust-free inserts
  • Internal spring dampers on risers
  • Heavy duty non-slip rubber feet

Technical Specifications

Part No. Model Max Height Min Height WLL

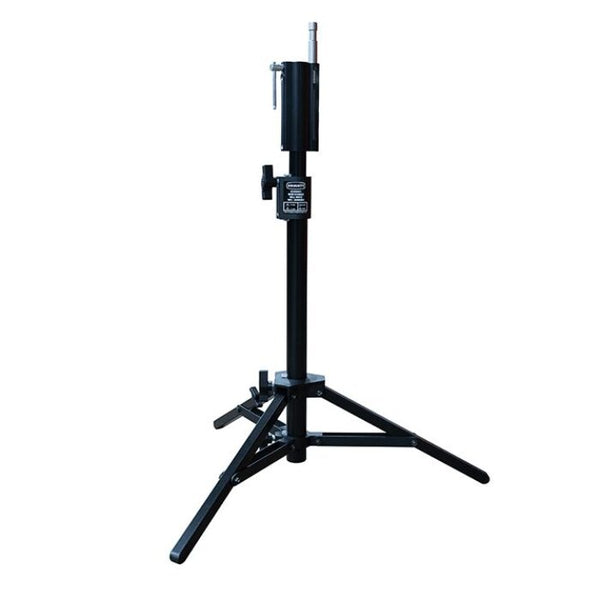

G203001 Mini Combo 1.12 m 0.72 m 30 kg
G203101 Pee Wee Combo 1.75 m 0.78 m 30 kg
G203501 Cine Combo 2.16 m 1.17 m 20 kg
G204001 Lowboy Combo 2.40 m 1.10 m 40 kg

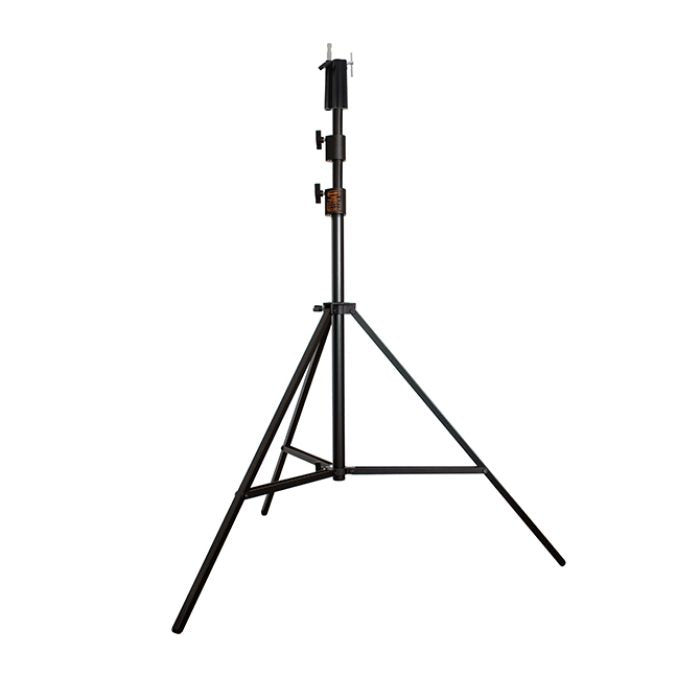

G203601 Cine Hi Combo 3.16 m 1.23 m 30 kg
G204501 Combo 3.62 m 1.43 m 40 kg

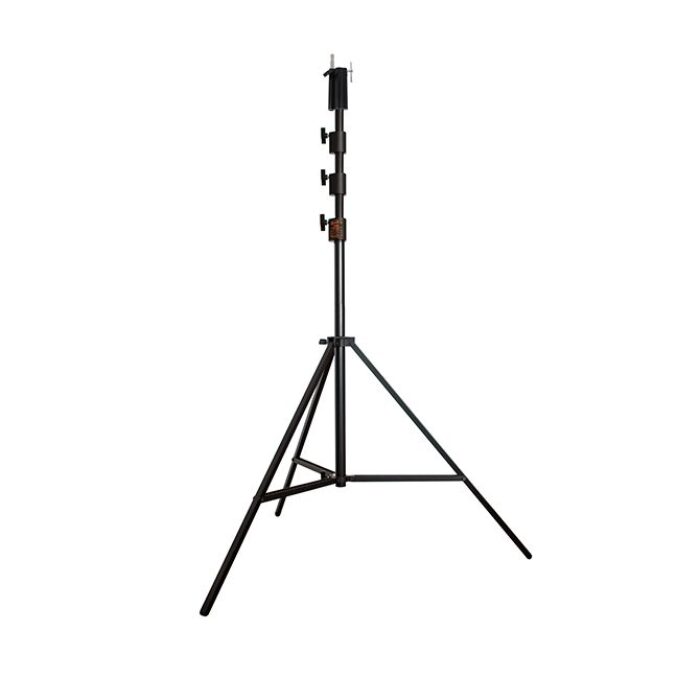

G204601 Hi-Combo 4.80 m 1.49 m 40 kg
G205001 Wide Base Hi-Combo 5.12 m 1.83 m 40 kg
G205101 Wide Base Hi-Hi-Combo 6.70 m 1.89 m 40 kg

Explore the full range of rigging hardware at Doughty Engineering at MTN Shop EU.

Frequently Asked Questions

How do I know which Doughty Combo Stand size fits my rig?
Match the model's maximum height to the reach you need, from 1.12m on the shortest to 6.7m on the tallest. Each size carries its own SWL between 20Kg and 40Kg, so also check the individual model's rating against your fixture's weight before choosing.
What's the difference between the chrome and "Shadow" finish on the Doughty Combo Stands?
Both share identical construction and SWL ratings within the same model, the only difference is finish: chrome plate and polished aluminium as standard, or a satin black powder coat for the Shadow version, useful for keeping stands less visible on a dark set.
What top comes fitted on the Doughty Combo Stands?
Every stand in the range comes with a three-function Multihead top as standard, along with a Lazy Leg designed for stability on uneven surfaces.
